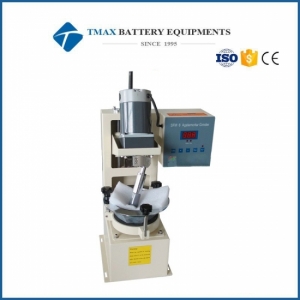

Automatic Mixer Grinder Machine With Mortar And Pestle for Lithium Battery Research
Model Number:
TMAX-SFM-8Type:
Mixer Grinder MachineDimension(L*W*H):
300mm(L) x 250mm(W) x 530mm(H)Net Weight:
18kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Automatic Mixer Grinder Machine With Mortar And Pestle for Lithium Battery Research
TMAX-SFM-8 is designed for grinding & mixing small batch of chemical and compound automatically for R&D laboratory. Its mortar and height adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in research lab so as to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.
|
Working Voltage |
Input: 24V DC 110- 240V AC to 24V DC power adapter is included Power adapor is UL , TUV, CSA and CE approval for worldwide use. |
|
Max. Power Consumption |
150W |
|
Grinding Bowl |
Agate Mortar & Agate Head Pestle included Mortar Dimensions: Ø120mm x 34mm Dia. |
|
Grinding Speed & Pressure |
Mortar: 0 - 10rpm Pestle: 0 - 80rpm adjustable Grinding pressure is adjustable by spring |
|
Dimension |
300mm(L) x 250mm(W) x 530mm(H) |
|
Net Weight |
18kg |
|
Package Dimension |
460mm(L) x 460mm(W) x 610mm(H) |
|
Package Weight |
22kg |
|
Warranty |
One year limited warranty with lifetime technical support |
|
Compliance |
CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input, which can be used without any safety certification |
|
Application note |
This compact automatic grinder can be put into a glove box via air-lock port and operate under inert gas |
