Automatic Film Slurry Vacuum Coating Machine with Adjustable Doctor Blade
Model Number:
TMAX-VFC-150CInput Power:
580WDimension(L*W*H):
10 - 600 mm adjustableNet Weight:
About 58kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

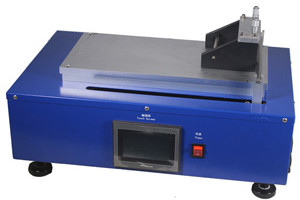

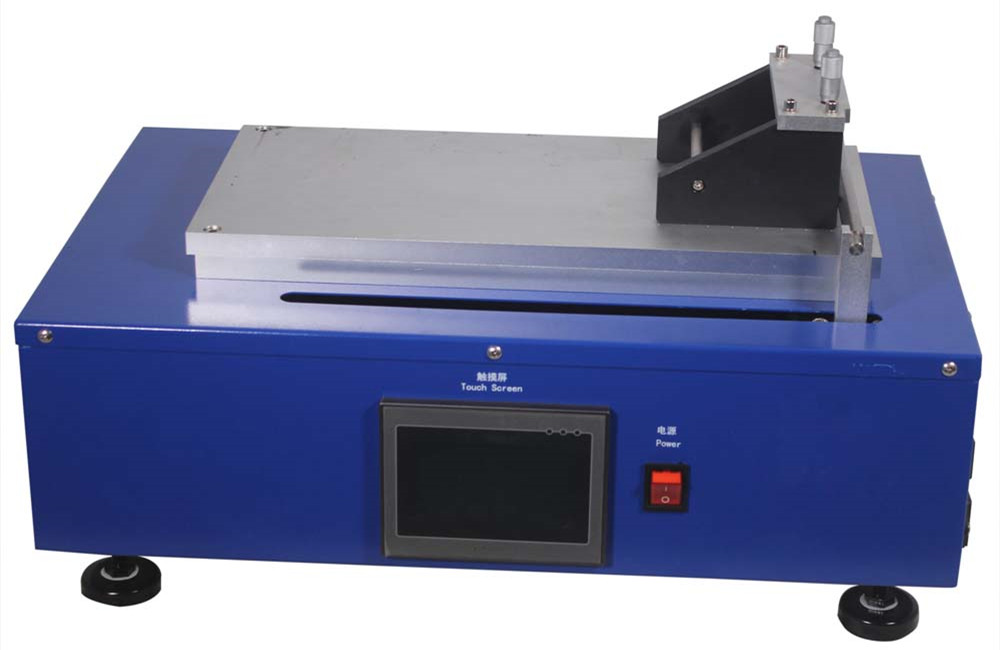

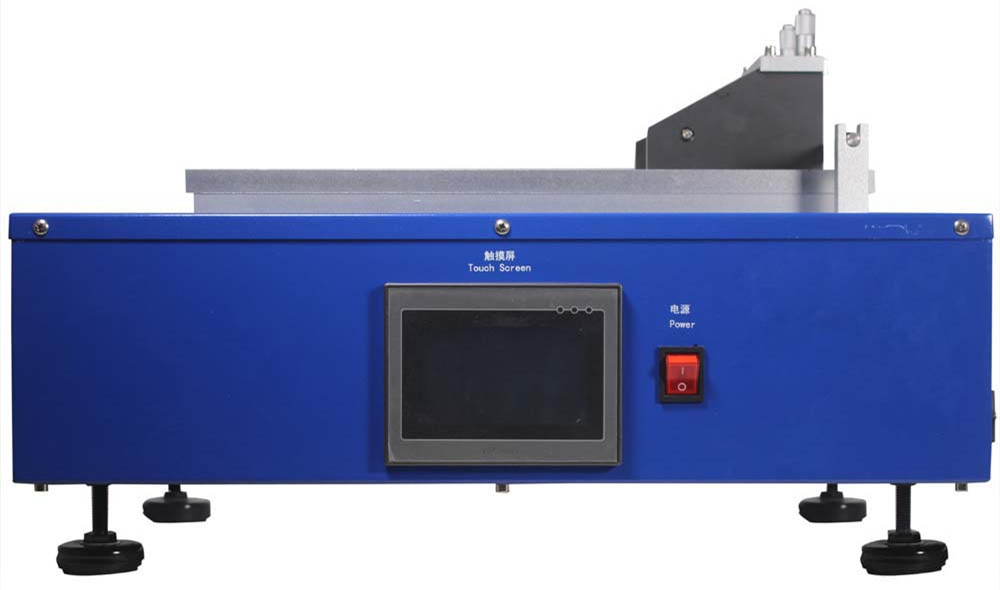

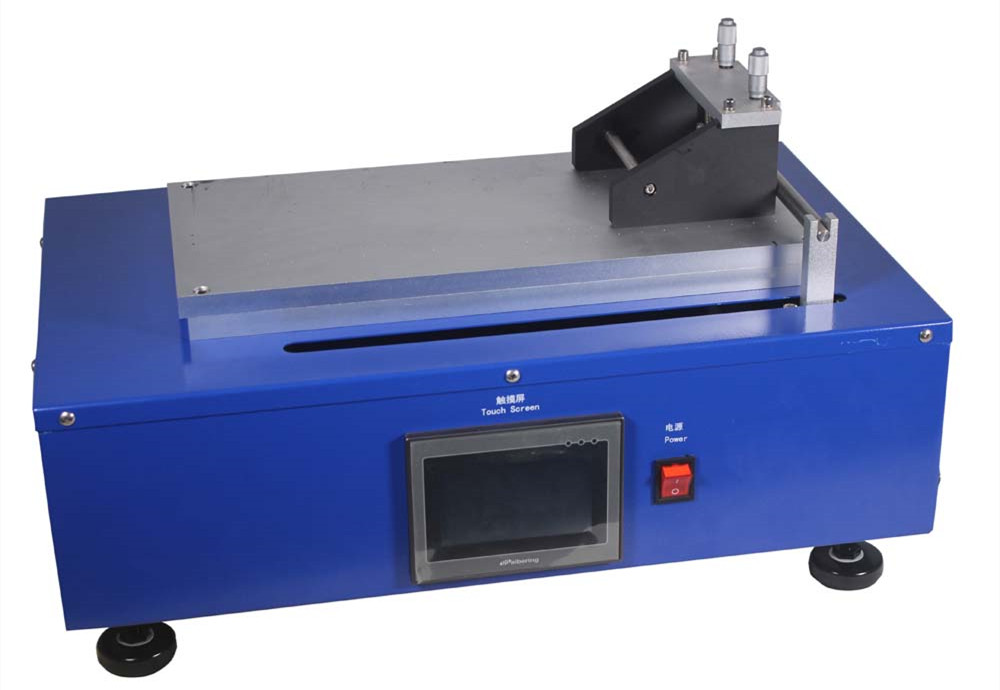

Automatic Film Slurry Vacuum Coating Machine with Adjustable Doctor Blade
TMAX-VFC-150C automatic coater is designed to produce consistent thickness films .

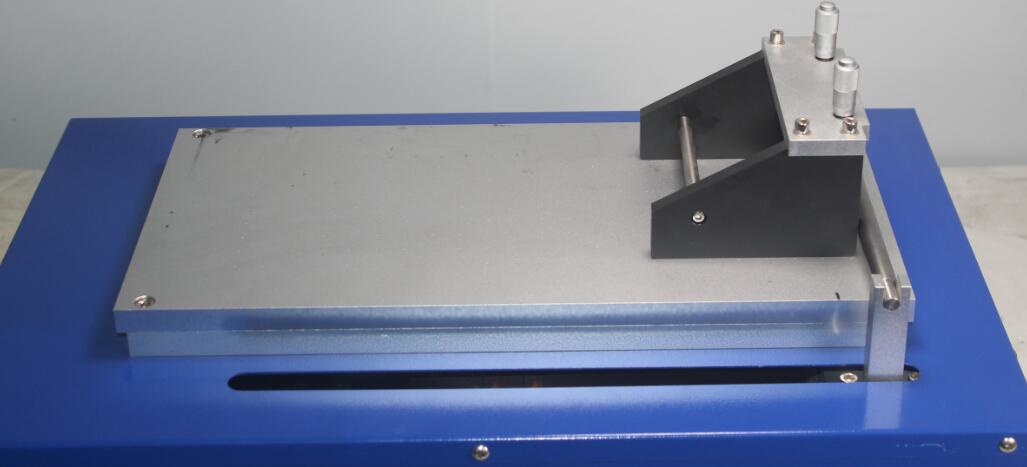

It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum
chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings.
One 50-250 mm width adjustable micrometer applicator (doctor blade) and an oilless vacuum pump are
included for immediate use. This equipment can be used for researches on ceramic tape castings and cylindrical
cell electrode coating.
|
ITEM |
Data |
|
Model |
TMAX-VFC-150C |
|
Working Voltage |
220V ±10% 50Hz |
|
Feed speed |
0 ~ 100,the speed can be adjusted |
|
Stroke Length |
10 - 250 mm adjustable |
|
Vacuum plate |
With vacuum aluminum plate |
|
Scraper range |
0.02~0.5mm adjustable |
|
Vacuum Pump |
Yes |
|
Max. Heating Temp. |
Without heat function |
|
Product Dimensions |
500mm(L)×330mm(W)×340mm(H) |
|
Certificate |
CE |
|
Net Weight |
58kg |
|
Warranty |
Two year warranty and lifetime maintenance |
