Automatic Film Applicator Slurry Vacuum Coating Machine
Model Number:
TMAX-VFC-150CInput Power:
550WDimension(L*W*H):
10 - 250 mm adjustableNet Weight:
About 40kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

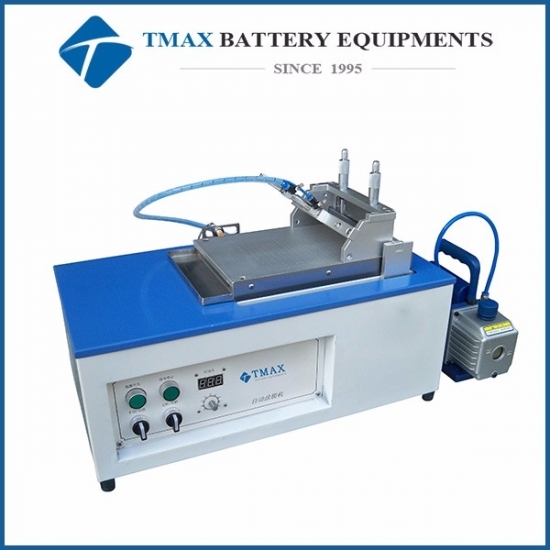

Automatic Film Applicator Slurry Vacuum Coating Machine
It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 150 mm width adjustable micrometer applicator (doctorblade) and an oilless vacuum pump are included for immediate use.
|
ITEM |
Data |
|
Model |
TMAX-VFC-150C |
|
Working Voltage |
220V ±10% 50Hz |
|
Feed speed |
0 ~ 100,the speed can be adjusted |
|
Stroke Length |
10 - 250 mm adjustable |
|
Vacuum plate |
With vacuum aluminum plate |
|
Scraper range |
0.02~0.5mm adjustable |
|
Vacuum Pump |
Yes |
|
Product Dimensions |
500mm(L)×310mm(W)×330mm(H) |
|
Net Weight |
45kg |
|
Warranty |
Two year warranty and lifetime maintenance |
