Automatic Electrode Winding Machine For Li-ion Battery Electrode Assembling
Model Number:
TMAX-DP-150Type:
Electrode Stacking MachineDimension(L*W*H):
Length : 80-150mm Width : 30-90mm ThicknessNet Weight:
800kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

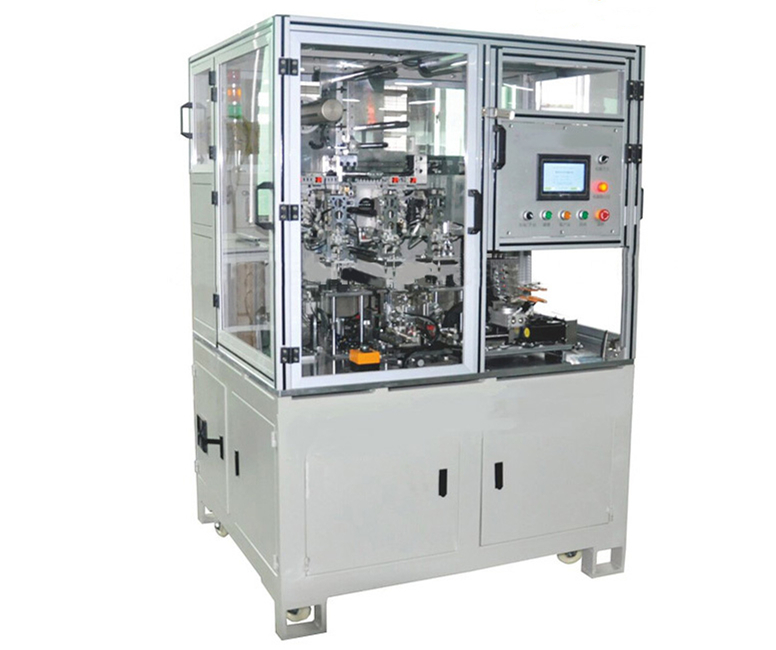

Automatic Electrode Winding Machine For Li-ion Battery Electrode Assembling
SPECIFICATION
TMAX-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.
Advanced Features:
1. PLC Touch Screen Control with easy condition setting.
2. Continuous "Z" fashion stacking with a separator.
3. Auto electrode pick-up & stacking via vacuum suction manipulator.
4. Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.
5. Unreeling rotors for separator film feeding.
6. Auto-tension control for separator film delivery.
|
Model |
Semi auto stacking machine TMAX-DP-150 |
|
|
Suitable battery size |
Thickness H (mm) |
5-20 |
|
Width W (mm) |
30-90 |
|
|
Length L (mm) |
80-150 |
|
|
Tab length Q (mm) |
Q≤20 |
|
|
Tab width (mm) |
≤20 |
|
|
Technology parameter |
Stacking speed |
1.3-1.5s/pcs |
|
Registration accuracy |
±0.5mm |
|
|
Stacking quantity |
Can be set |
|
|
Percent of pass |
≥98% |
|
|
Power |
4kw |
|
|
Weight |
800kg |
|
|
Dimension (L*W*H) |
1250*1150*1850mm |
|
|
Materials size |
Electrode |
Length : 80-150mm Width : 30-90mm Thickness : 0.07-0.25mm |
|
Tab |
Length : ≤20mm Width : 8-20mm |
|
|
Separator |
Length : in roll Width : 90-150mm Thickness : 0.02-0.04mm Inner diameter : φ76.2mm Max out diameter : φ300 |
|
