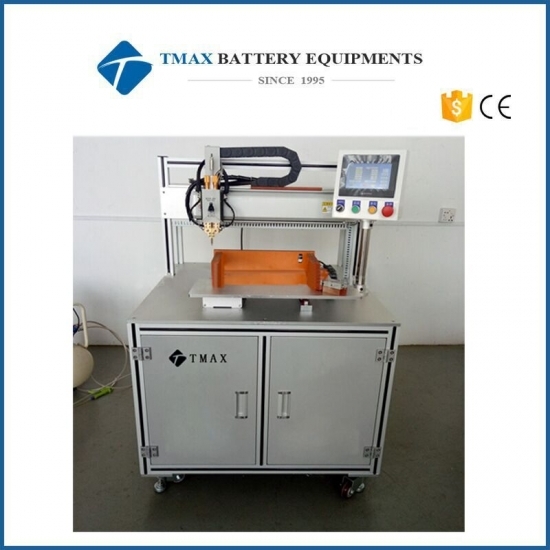

Automatic 18650 Cells Single Side Spot Welder Welding Machine
Model Number:
TMAX-DH-400Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

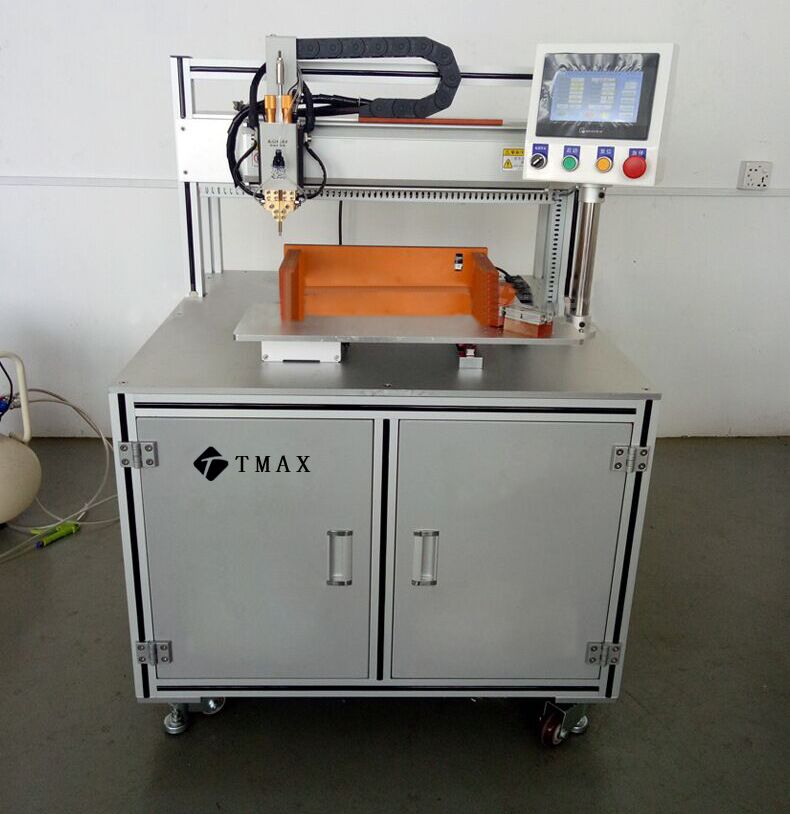

Automatic 18650 Cells Single Side Spot Welder Welding Machine

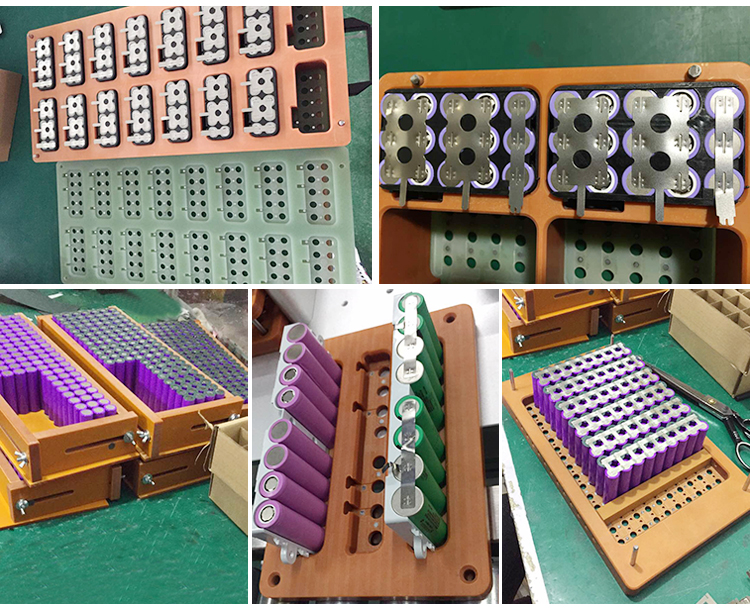

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
|
Model |
TMAX-DH-400 |
|
X-axis travel |
400mm |
|
Y-axis travel |
400mm |
|
Spot welding speed |
0.5s / point; 1800pcs / h |
|
Maximum speed of motor drive |
300mm/s |
|
Number of groups for storing files |
999 groups |
|
Operating system |
Embedded system + man-machine screen |
|
Transmission |
Stepper + imported precision linear guide (optional servo + screw) |
|
Power supply |
Single-phase 220V ± 10% / 50Hz ± 10% |
|
Power |
<1500w |
|
Air supply |
0.2 ~ 0.4Mpa |
|
Weight |
150KG |
|
Dimensions |
About 900mm*900mm*1300mm |
