Automatic 10 Channels Battery Sorting Machine for 18650 26650 And 21700 Cylindrical Cell
Model Number:
TMAX-FN-10Type:
AutomaticCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaUpdate:
Optional:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

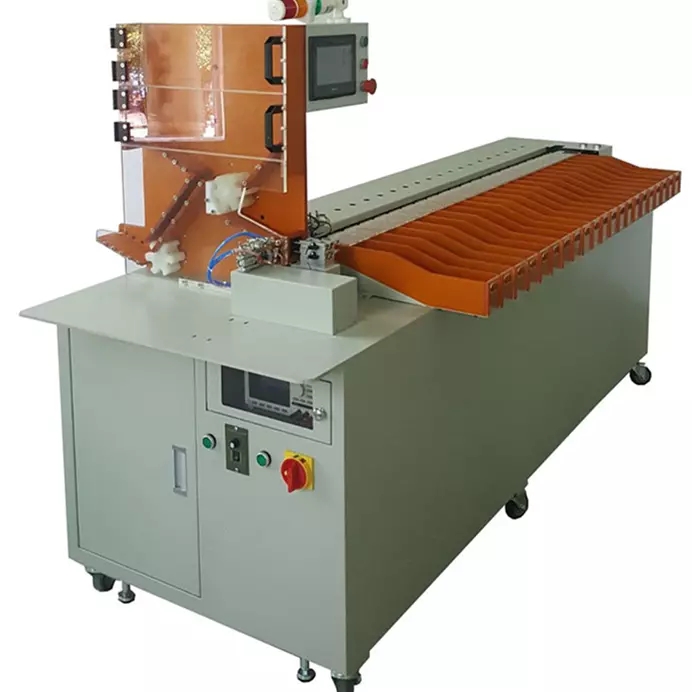

Automatic 10 Channels Battery Sorting Machine for 18650 26650 And 21700 Cylindrical Cell
Features:
It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
10 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells
Sort by cell's voltage and impedance up to 10 groups
Automatic sorting control
Fast sorting speed (80PPM)
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place
Specifications:
|
Model |
TMAX-FN-10 |
|
Voltage supply |
220V/50HZ( no need air supply) |
|
Power |
<900w |
|
Display screen |
Large size LCD screen/Touch screen |
|
Cylindrical 18650 or 26650 cells |
|
|
Net Weight |
<300KG |
|
Internal resistance test |
Test range:80mΩ Accuracy:±0.015% rdg Resolution:0.01Mω |
|
Voltage test |
Test range0-8V Accuracy:±0.5% rdg Resolution:0.01mV |
|
Sorting speed |
80PPM |
