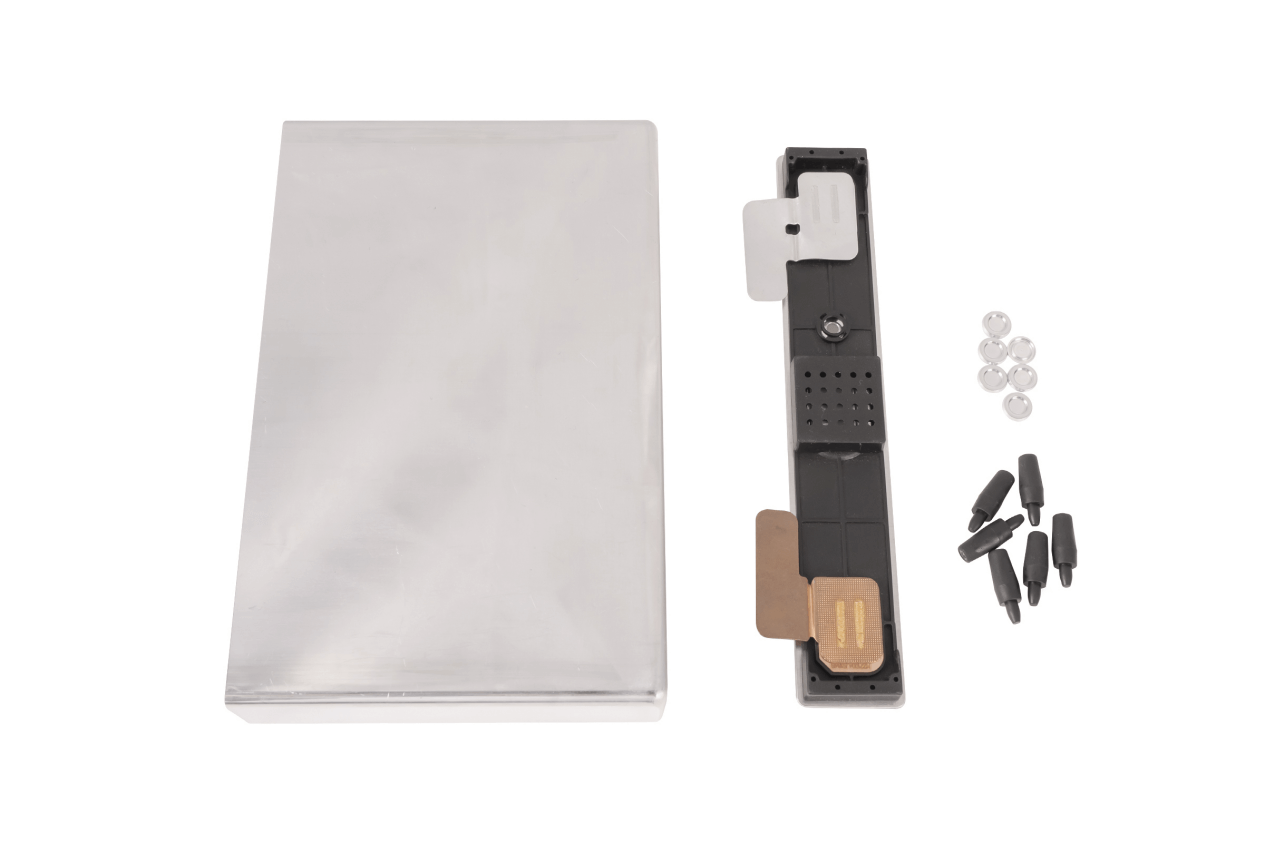

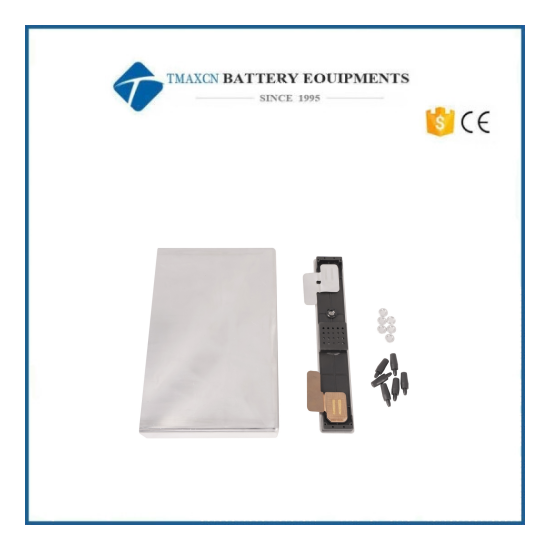

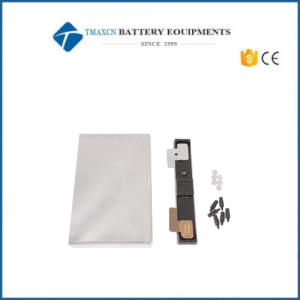

Aluminum Prismatic Cell Case for Various EV Batteries

Aluminum Prismatic Cell Case for Various EV Batteries

Item No.	Model	Dimensions (Outer)	Wall Thickness (±0.1mm)	Aluminum Shell Height (±0.15mm)	Burst Pressure Value Mpa
1	1565	14.5*65	0.5	Below 138	Arbitrary setting
4	1865	18*65	0.5	Below 138	Arbitrary setting
6	20130	20*130	0.75	Below 235	Arbitrary setting
7	2265	22*65	0.5	Below 148	Arbitrary setting
8	2770	27*70	0.5	Below 165	Arbitrary setting
9	26148	26.5*148	0.55	92.5	Arbitrary setting
11	27148 Upright Weld	25.3*146.8	0.6	91/95	Arbitrary setting
13	29135	29*135	0.6/0.8	Below 215	Arbitrary setting
14	32173 Upright Weld	301.*172.4	0.6/0.8	191	Arbitrary setting
15	36130	36*130	0.75	Below 235	Arbitrary setting
16	36130 Upright Weld	34.8*129.0	0.6	193.7	Arbitrary setting
17	39148	39.5*148	0.6	95	No cover plate
18	41255	38.2*152.85	0.8	164	Arbitrary setting
19	45120	4.5*120	0.75	Below 177	Arbitrary setting
20	45173	4.5*173	0.7	184	Arbitrary setting
21	48174	47.5*173.6	0.6	145.2	Arbitrary setting
22	71173	71.33*173.6	0.6/0.8	203.7	Arbitrary setting

 Note: more options are available upon request.
