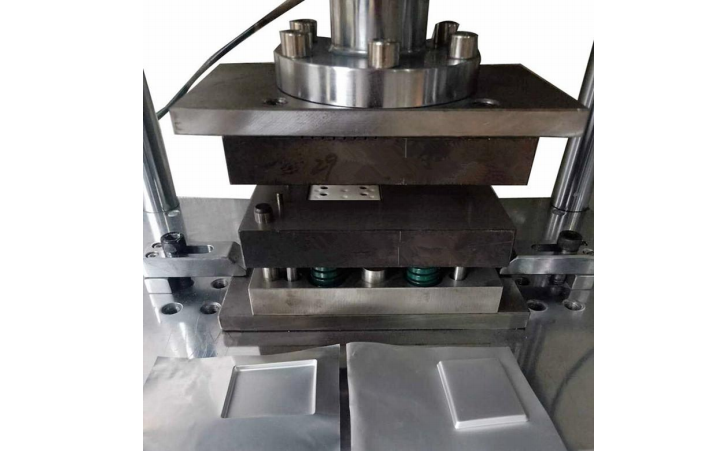

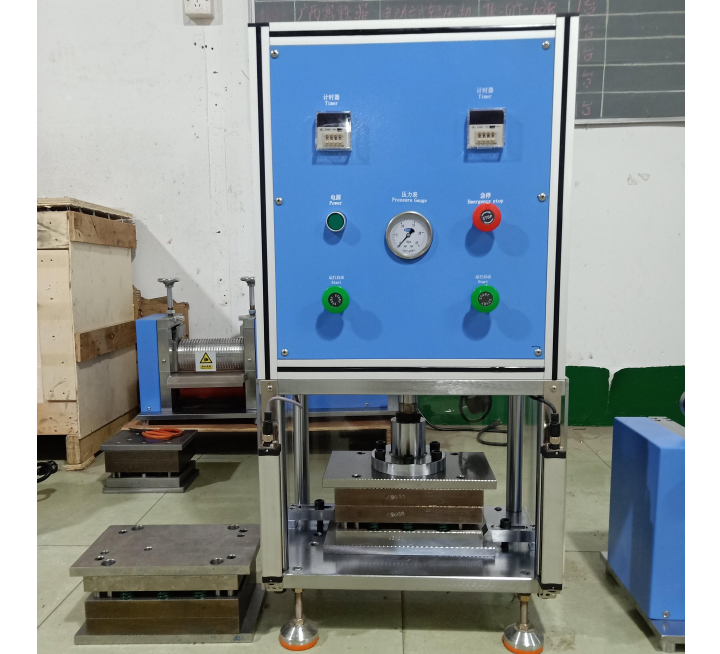

Aluminum Laminated Film Punch Forming Machine for Pouch Cell Case/Cup
Model Number:
TMAX-SCK200Type:
Punch Forming MachineDimension(L*W*H):
300mm(L) x 250mm(W)Net Weight:
120kg (265 lbs)Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Aluminum Laminating Film Punch Forming Machine for Pouch Cell Case/Cup
TMAX-SCK200 is pouch cell forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.
1 TMAX-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the of making pouch cell batteries.
2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.
3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a customized size, which is more suitable for lab research.

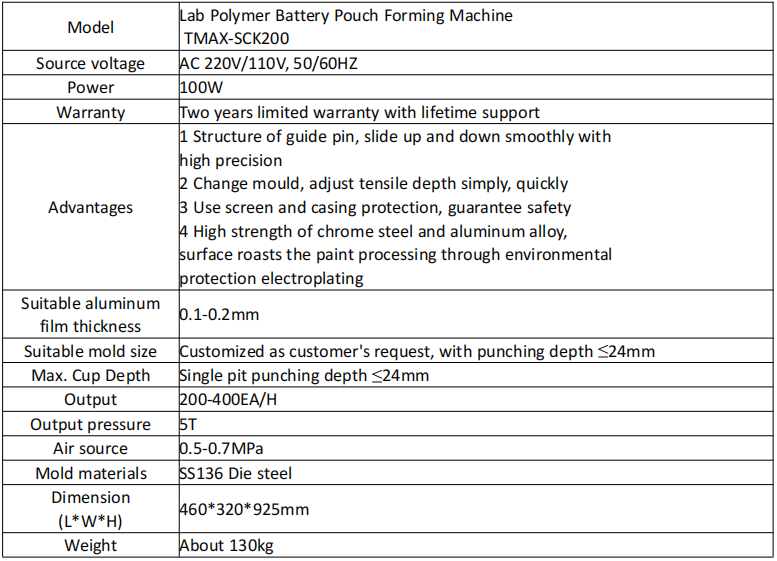

Specifications
