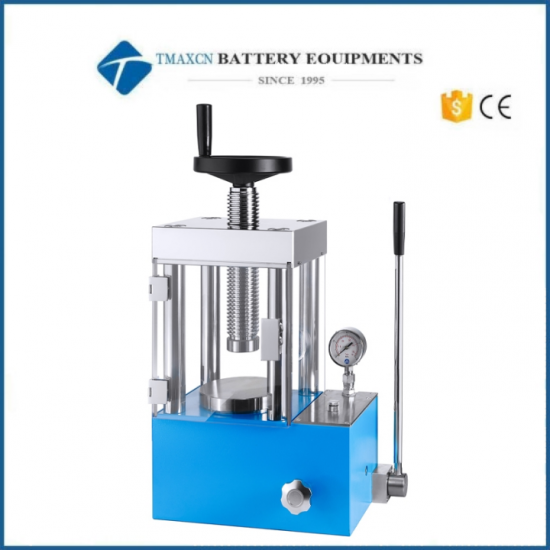

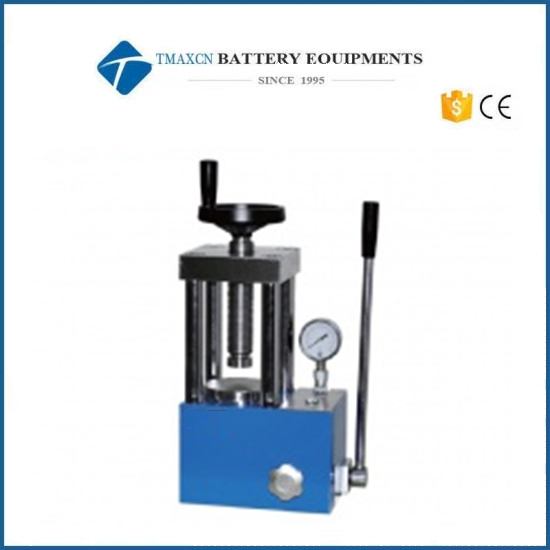

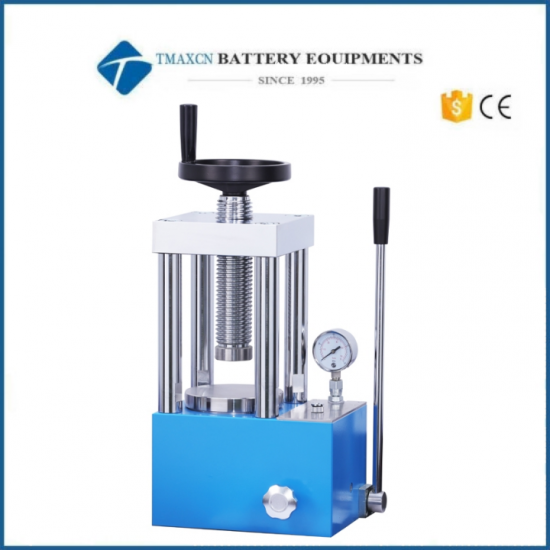

Φ95mm 24T Lab Manual Hydraulic Press Machine

Φ95mm 24T Lab Manual Hydraulic Press Machine

The powder tablet press can be used in sample preparation with calcium-iron analyzer, Fourier infrared spectrometer (IR), X-ray fluorescence spectrometer (XRF) and other analytical testing instruments; it has been widely used in scientific research, teaching, testing, catalysis, pharmaceuticals, and chemical industries. In addition, various powder materials such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3) and other powder materials can be pressed into shapes through specific tableting molds, and various types of For scientific research on specimens, cylinders, special-shaped bodies or other shapes; at the same time, the hydraulic press is also suitable for other workplaces that require corresponding pressure. It is used as a press to test the pressure resistance of various objects, etc., and is widely used , Can replace similar imported products.

The SYP series laboratory manual tablet press is a new generation of compression molding machine developed by TMAX to meet the current market demand and accept the suggestions and feedback of some college teachers. The machine has the characteristics of beautiful appearance, compact structure, small size, fast pressing, simple operation, convenient cleaning, etc.; it adopts national utility model patent technology, one-piece structure, oil cylinder, oil pool, main board, and piston are all on one main body. The sealed connection reduces the oil leakage point and reduces the oil leakage rate of the tablet press; the imported pressure sensor is used to greatly improve the pressure stability; the future cleaning and maintenance work of the hydraulic press is considered at the beginning of the design, which is more convenient The user maintains the equipment and is deeply loved by users at home and abroad.

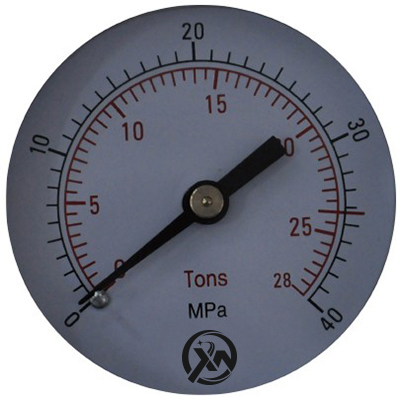

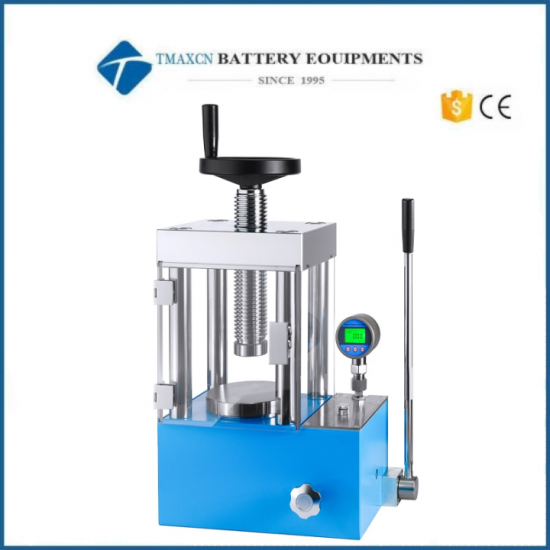

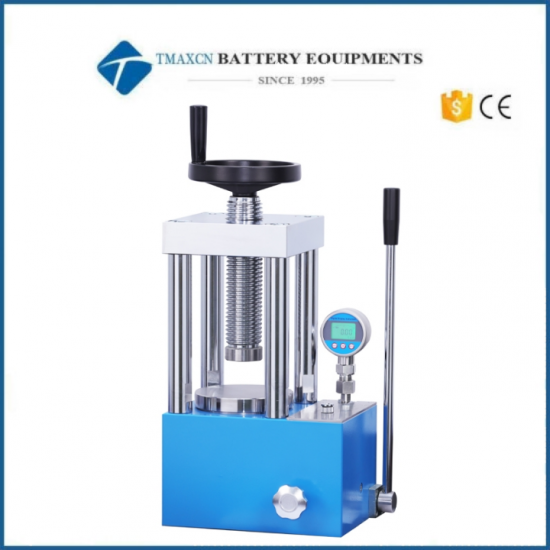

SYP-24B type manual powder tablet press is a common tablet press in the laboratory, commonly known as infrared tablet press, laboratory hydraulic press, etc.; it adopts pointer pressure gauge, double scale display pressure tonnage, pressure MPa, pressure does not need to be converted to avoid Mold overpressure phenomenon. Working space 80×150mm, imported pressure sensor. If the pressure accuracy control is strict, it is recommended to choose an "S" digital display pressure gauge, the pressure display range is 0.00-40.00MPa, the display accuracy is 0.01MPa, the accuracy is higher, and the control pressure is more precise. The model is SYP-24BS, which is suitable for Places or pressure test activities where pressure control is more accurate.

Technical parameters

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.

Pressure conversion table
