80L to 1000L Laboratory Programmable Climate Thermo Hygrostat Temp Humidity Chamber With The Gloves
Model Number:
TMAX-50-1000LCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

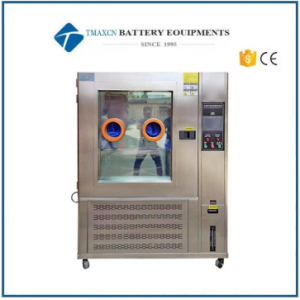

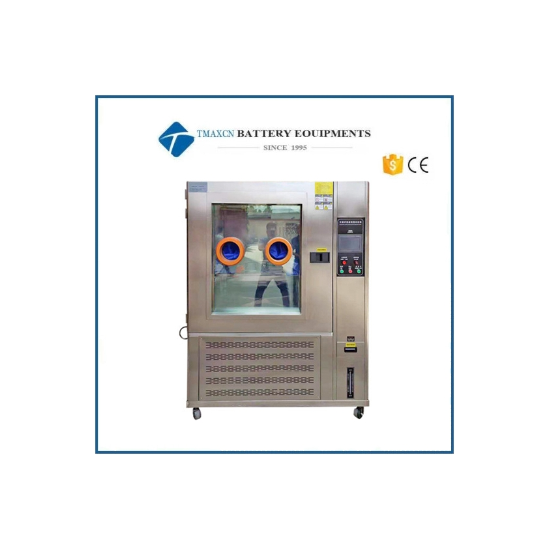

80L to 1000L Laboratory Programmable Climate Thermo Hygrostat Temp Humidity Chamber With The Gloves
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
|
Chamber volume |
Chambersize(LxWxH) |
Temperature range |
Humidity range |
|
50L |
350x450x350 |
0℃~150℃ |
20~98%R.H |
|
80L |
400x400x500 |
-20℃~150℃ |
15~98%R.H |
|
100L |
400x500x500 |
-40℃~150℃ |
10~98%R.H |
|
150L |
500x500x600 |
-60℃~150℃ |
30~98%R.H |
|
225L |
600x500x750 |
-70℃~150℃ |
40~98%R.H |
|
408L |
800x600x850 |
-70℃~180℃ |
50~98%R.H |
|
800L |
1000x800x1000 |
-20℃~150℃ |
60~98%R.H |
|
1000L |
1000x1000x1000 |
-40℃~150℃ |
70~98%R.H
|
|
Customized volume available |
Customized chamber size available |
Customized temperature range available |
Customized humidity available |
Specifications
|
Model |
TMAX-50L |
TMAX-80L |
TMAX-225L |
TMAX-408L |
TMAX-800L |
TMAX-1000L |
|
|
Inner chamber size (CM) |
35*45*35 |
50*40*40 |
50*60*75 |
80*60*85 |
80*100*100 |
100*100*100 |
|
|
Power (- 40 ℃) |
4.5(KW) |
5.0(KW) |
6.0(KW) |
7.0(KW) |
8.5(KW) |
9.5(KW) |
|
|
Performance
|
Temperature range |
A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available |
|||||
|
Humidity range |
20~98%R.H Customized humidity is available |
||||||
|
Fluctuation / uniformity |
±1.5℃/±2℃ |
||||||
|
Humidity deviation |
±3%R.H |
||||||
|
Heating rate |
About 1.0~3.0℃/min |
||||||
|
Cooling rate |
About 0.5~1.0℃/min |
||||||
|
Control system
|
Controller |
"Temi" brand programming temperature instrument, HD real color LCD touch screen |
|||||
|
Accuracy range |
Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H |
||||||
|
Temperature and humidity sensor |
Platinum resistor PT100Ω/MV |
||||||
|
Heating system |
Fully independent system, Ni Cr alloy electric heating heater |
||||||
|
Humidification system |
External isolation type, all stainless steel shallow surface evaporation humidifier |
||||||
|
Dehumidification system |
Adopt the dew point temperature laminar contact dehumidification method of evaporator coil |
||||||
|
Water supply system |
Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption |
||||||
|
Refrigeration system |
French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode |
||||||
|
Circulation system |
Motors with low noise and temperature resistance - multi blade centrifugal fans |
||||||
|
Materials
|
Outer box material |
High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel |
|||||
|
Inner box material |
Stainless steel high quality mirror plate |
||||||
|
Thermal insulation material |
Polyurethane rigid foam / superfine glass fiber wool |
||||||
|
Door frame insulation |
Double layer high and low temperature aging resistant silicone rubber door sealing strip |
||||||
|
Standard configuration |
Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1 |
||||||
|
Safeguard |
Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection |
||||||
|
Supply voltage |
AC220Vor 380V±10% 50±0.5Hz |
||||||
|
Operating ambient temperature |
5℃~+30℃ ≤85%R.H |
||||||
