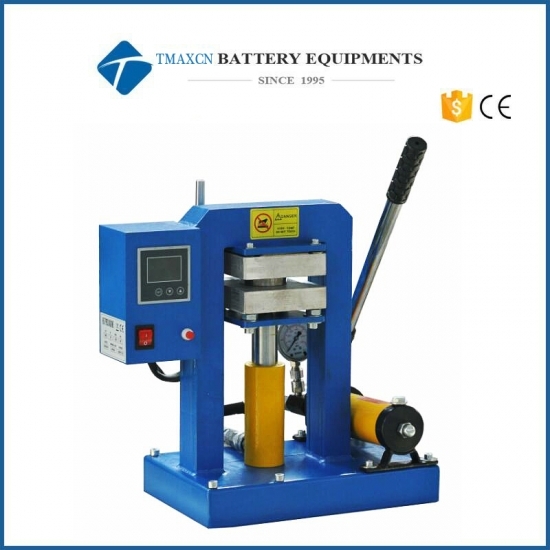

Feature

·         Heated platens are controlled by two digital temperature controller up to 200°C

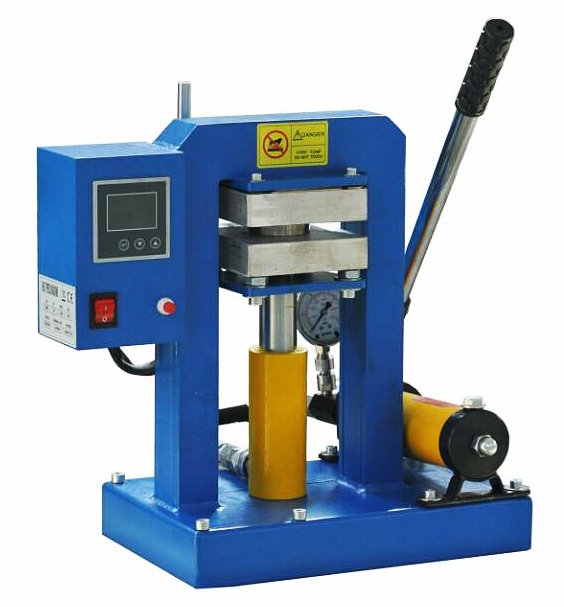

Heated Platen

·         Platen Area: 120mm x 120mm

·         Made of Aluminium alloy with inserted heating element

·         Warning: Please don't  press small area die directly against the soft Aluminium alloy surface.  You may add hard steel plate on top and bottom  if press small diameter  die

Max. Working Temperature

·         200°C Max. (<30 minnutes)

·         100°C continuous

Temperature Control

·         Digital controller is installed in the control cabinet with 30-segment programmable and auto-tune function

·         Temperature accuracy ±1°C.

Max. Working Pressure

·         6 Metric Tone (Note: the machine base must be secured to an unmovable & solid table before operation)

Gauge Pressure Value to Force Conversion

·         Notes:

       The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece

       For calculating the actual pressure (MPa) applied on your working piece, please follow the equations in below:

              P = T/(πr^2) x g x 10

       P: Pressure (MPa) applied on your working piece

       T: Force (Ton) applied on the Hydraulic Cylinder

        g: Standard gravity. g ≈ 9.8 m/s²

        π: ~3.14

        r: Radius (cm) of the working piece

        *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm²

Power Requirement

·         110VAC or 220VAC +/-10%, 50/60Hz, single phase (please select the voltage in the selection bar)

·         1200 W max,15A circuit breaker is required

Option

·         Optional: Upgrade to Digital Vacuum/Pressure Gauge (100Kp to 30Mp) with Max. Pressure Setting.

·         Optional: NIST certificate Load cell  Pressure Calibration Kit to measure the actual force

Compliance

·         CE Certified

Shipping  Size Weight

·         120 lbs

Warranty

·         Two years limited warranty with lifetime support
