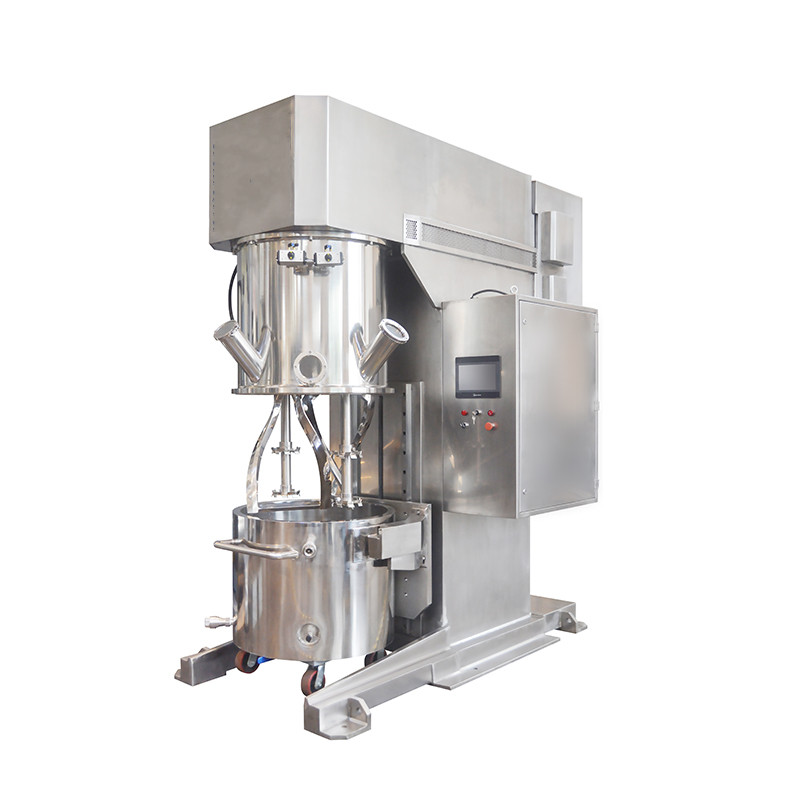

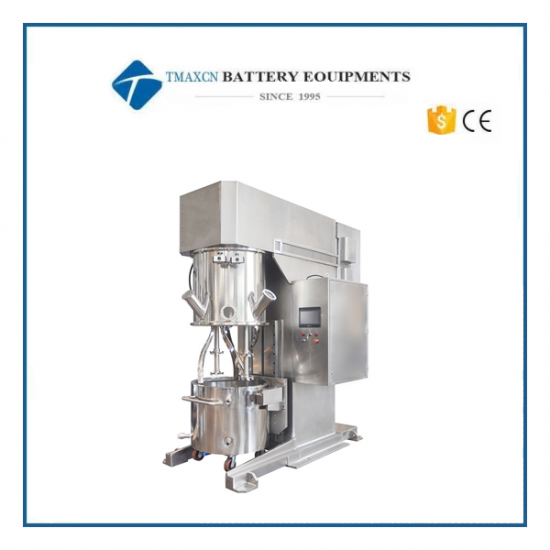

  • 650L Double Planetary Battery Electrode Slurry Vacuum Mixer Mixing Machine

    • 650L Double Planetary Battery Electrode Slurry Vacuum Mixer Mixing Machine

    • Model Number:

      TMAX-BHBT-DPM-650L

    • Dimension(L*W*H):

      L3520x W 2160 x H 3950mm

    • Net Weight:

      about 12 tons

    • Compliance:

      CE certificate

    • Warranty:

      Two Year Limited Warranty With Lifetime Support

    • Payment:

      T/T, Credit Card, Paypal, LC, Western Union

    • Delivery Time:

      3 Days
    contact now
    Email:David@battery-equipments.com
    Wechat:13506084915
    DESCRIPTION

    650L Double Planetary Battery Electrode Slurry Vacuum Mixer Mixing Machine


    A.Equipment principle

    The so-called double planet is a double planet system consisting of a revolving planet box centered on the sun gear and a stirring paddle installed on the planet box to rotate around the planet box and rotate by itself. The double planet mixer is mainly aimed at the kneading, mixing and dispersion between powder and liquid, so that the mixture can make complex movement in the barrel, be strongly dispersed, extruded and stirred, and finally get a uniform slurry, and can remove the bubbles in the slurry by vacuuming.


    B.Application area

    1. Lithium ion battery slurry mixing: production of various slurries with kinematic viscosity of 10-1million CP and preparation of other materials.

    2. Mixing and stirring of food powder and liquid

    3. Chemical material mixing

    4. Pharmaceutical grade powder liquid mixing

    5. And any other occasions requiring mixing.


    C.Equipment structure

    1. Overall dimension:L 3520x W 2160 x H 3950mm

    2. Overall weight: About 12T


    D.Mechanical parameters

    Barrel volume

    1. total design volume: 807L

    2. effective volume: 650L

    3. inner diameter of vessel: 1100mm

    4. depth in vessel: 850mm

    5. container material: material contact part 304

    6. form of temperature regulating jacket: single layer jacket on barrel wall, used for cooling or heating; Single layer jacket at barrel bottom for cooling or heating

    7. temperature regulating jacket interface: g1/2 ", jacket pressure resistance ≤ 0.4MPa

    8. temperature regulating jacket circulating system: provided by the customer. It is recommended that the jacket inlet temperature ≤ 8 ℃, and the cooling water flow ＞ 50l/min

    9. discharge form: a g1.5 "three piece discharge ball valve at the bottom of the barrel

    10. design ambient temperature: -10 ~ +120 ° C

    11. moving mode: caster Mobile

    Mixing parts

    1. two sets of fried dough twist frame mixing paddles, made of SUS304, are precision machined.

    2. transmission mode: secondary transmission and primary chain transmission; Two stage gear drive.

    3. mixing paddle material: 304

    4. linear speed of mixing paddle: 0.1-1.0m/s

    5. number of mixing paddles: 2

    6. distance between paddles: 10 ± 2.5mm

    7. distance between paddle and barrel wall: 5 ± 2mm

    8. distance between paddle and barrel bottom: 5 ± 2mm

    Dispersed parts

    1. two sets of dispersion shafts, each shaft is equipped with two dispersion discs, made of SUS304

    2. dispersion disk style: serrated

    3. dispersion plate material: 304

    4. number of dispersion disks: 4pieces

    5. number of dispersion shafts: 2pieces

    Wall scraping parts

    1. wall scraping support material: 304

    2. wall scraping plate material: polytetrafluoroethylene

    3. wall scraping speed: consistent with planetary case speed

    4. whether it is detachable: detachable design (the wall scraping must be removed during high viscosity process)

    Upper barrel part

    1. upper barrel material: 304

    2. powder feeding port: quick opening interface dn108, one with 80 sight glass

    3. liquid feeding port: one ISO standard 1 "quick connector

    4. spotlight port: one dn75 tempered glass mirror

    5. vacuum port: G 1/2 "one

    6. exhaust port: g1/2 "one

    7. spare port: g1/2 "one

    Rack components

    1. A3 steel framework

    2. All stainless steel appearance surface

    E.Performance parameter

    No.

    Project

    Data

    Unit

    Quantity

    Note

    1

    Total power

    About 105KW







    2

    Mixing motor + reducer

    45KW

    set

    1

    International trade or the same quality brand

    3

    Mixing frequency converter

    45KW

    set

    1

    Mitsubishi or the same quality brand

    4

    Distributed motor

    55KW

    set

    1

    Dongguan globegroup or the same quality brand

    5

    Distributed frequency converter

    55KW

    set

    1

    Mitsubishi or the same quality brand

    6

    Planetary case speed (revolution)

    0-23rpm

    group

    1

    SUS304

    7

    Mixing paddle speed (rotation)

    0-42rpm

    group

    2

    SUS304

    8

    High speed dispersion disk speed

    0-2200rpm

    group

    2

    SUS304

    9

    Specification of dispersion disk

    Φ280mm

    piece

    4

    SUS304


    F.Anti stupidity protection

    1. if the mixing drum is not in place, the mixing head cannot be lowered;

    2. the mixing head can start working only after the upper and lower can bodies are closed in place;

    3. the upper and lower can bodies cannot be opened during mixing;

    4. the tank cannot be opened without vacuum discharge;

    5. there is a protection switch in the lifting process, and the function of "material return" can be selected slowly;

    6. automatic stop protection in case of motor current overload;

    7. when the temperature exceeds the set value, the automatic shutdown protection is provided;

    8. the mixing machine and electric control box must be grounded.
