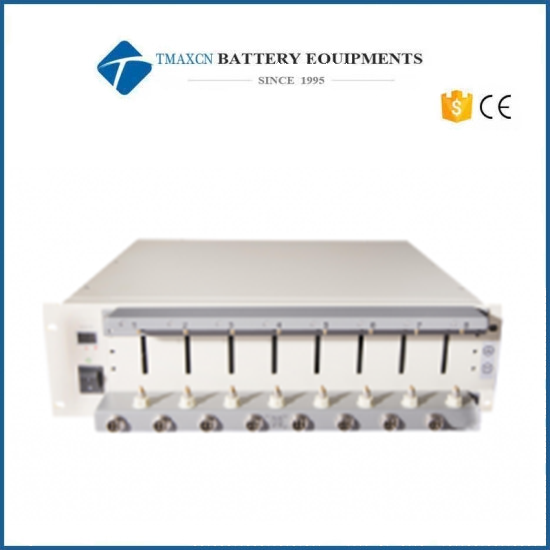

5V6A Lithium ion Battery Tester Cylindrical/Pouch Cell Charging&Discharge Test Machine

Model Number:
TMAX-5V6A
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

5V6A Lithium ion Battery Tester Cylindrical/Pouch Cell Charging&Discharge Test Machine

1. TMAX-5V6A Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-6A, voltage 0-5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

The triple range greatly improves the accuracy of the battery tester, and more importantly, realizes the CVD (constant voltage discharge) function. At the same time, it also helps customers save costs. At present, there are 5V10mA/50mA/6A/12A to choose from, and more models will be launched soon.

Specifications

Items		Values
Input AC		AC 220V/110V ±10% / 50Hz
Input power		425 W
Resolution		AD：16bit；DA：16bit
Input impedance		≥1MΩ
Voltage	CV output range	25mV~5V
	Min discharge voltage	1.0V for universial holder,1.5V for 2m cable
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Output range/channel	Range1: 0.5mA-100mA; Range2: 100mA-3A; Range3: 3A-6A
	Accuracy	± 0.05% of FS
	CV cut-off current	Range1: 0.2mA; Range2: 6mA; Range3: 12mA
	Stability	± 0.05% of FS
Power	Output power/channel	30	W
	Stability	± 0.1% of FS
Time	Current response time	Max rising time:1ms (10%FS~90%FS)
	Working step time	≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)
Data record	Data record conditions	Min data recordinterval:100ms
		Min voltage change：10mV
		Min current change：0.2mA; 6mA; 12mA
	Frequency	10Hz
Charge	Charge modes	CC、CV、CCCV、CP
	Cut-off condition	Voltage、Current、Time、Capacity、-△V
Discharge	Discharge modes	CC、CP、CR、CV
	Cut-off condition	Voltage、Current、Time、Capacity
Pulse	Charge	CC、CP
	Discharge	CC、CP
	Min pulse width	500ms
	Pulse counts	Up to 32
	Chg and Dischg switch	Supported
	Cut-off condition	Voltage、Time
DCIR	Supported
Cycle	Max cycles	65535
	Max steps	254
	Cycle nest	3
Protection	Safety protection	● Power-off data protection
		● Off-line operation mode
		● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
Channels feature		Independent pairs of closed loop for constant
Channels control mode		Independent control
Data acquisition method		Kelvin connection
Noise		<85dB
Database		MySQL
Communicatin		TCP/IP
Operating system		Windows 7/8/10 64 bit
Data export		EXCEL、TXT、CSV、PDF、Plot/Graph
Disk drive		500GB
Communication port		Ethernet port
Leak Current		<5μA
Channels per unit		8
Operation and storage environment requirement
Items		Values
Operation environment temperature		0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 50ppm /℃)
Storage environment temperature		-10℃~50℃
Operation environment humidity		≤70% RH(no moisture condensation)
Storage environment humidity		≤80% RH(no moisture condensation)
Clamps and dimensions
Items		Values
Clamps		Alligator		Polymer	Coin
Dimensions（WDH）(mm)		3U1F，480400130

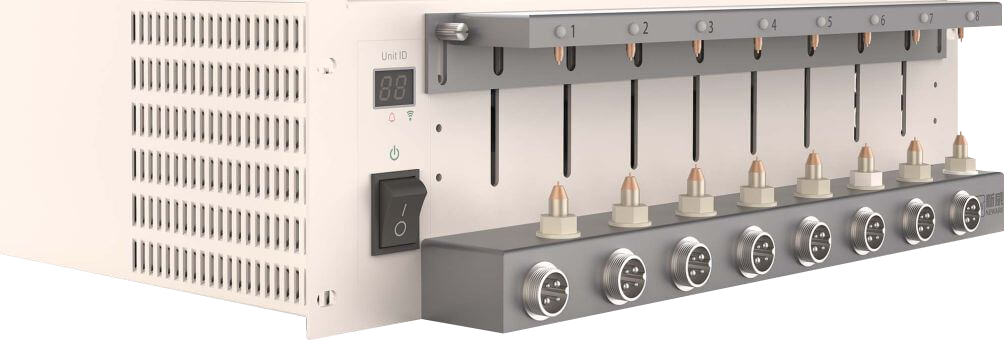

battery tester

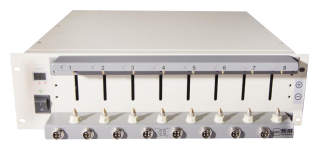

5V6A Tester
