5T Lab Manual Hydraulic Press Machine

5T Lab Manual Hydraulic Press Machine

The powder tablet press can be used in sample preparation with calcium-iron analyzer, Fourier infrared spectrometer (IR), X-ray fluorescence spectrometer (XRF) and other analytical testing instruments; it has been widely used in scientific research, teaching, testing, catalysis, pharmaceuticals, and chemical industries. In addition, various powder materials such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3) and other powder materials can be pressed into shapes through specific tableting molds, and various types of For scientific research on specimens, cylinders, special-shaped bodies or other shapes; at the same time, the hydraulic press is also suitable for other workplaces that require corresponding pressure. It is used as a press to test the pressure resistance of various objects, etc., and is widely used , Can replace similar imported products.

The SYP series laboratory manual tablet press is a new generation of compression molding machine developed by TMAX to meet the current market demand and accept the suggestions and feedback of some college teachers. The machine has the characteristics of beautiful appearance, compact structure, small size, fast pressing, simple operation, convenient cleaning, etc.; it adopts national utility model patent technology, one-piece structure, oil cylinder, oil pool, main board, and piston are all on one main body. The sealed connection reduces the oil leakage point and reduces the oil leakage rate of the tablet press; the imported pressure sensor is used to greatly improve the pressure stability; the future cleaning and maintenance work of the hydraulic press is considered at the beginning of the design, which is more convenient The user maintains the equipment and is deeply loved by users at home and abroad.

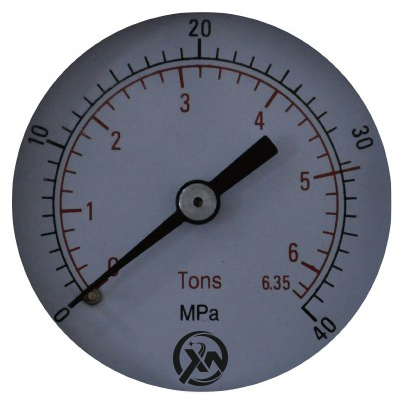

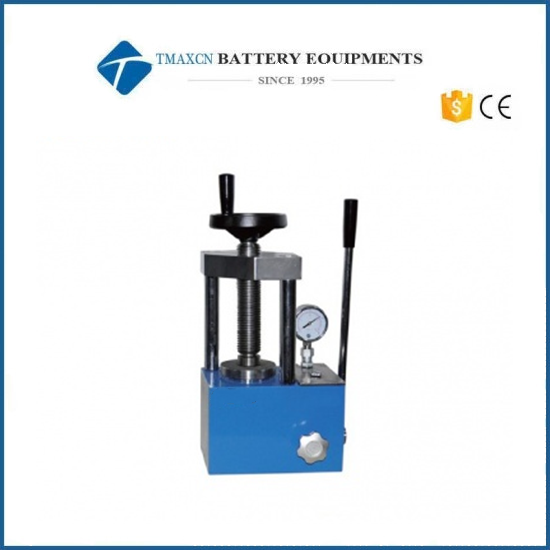

SYP-5B manual 5-ton tablet press adopts a 2-column design. Because of its small size and light weight, it is very suitable for use in a glove box. Small size molds with a diameter of Ф8mm or less are also recommended to purchase a 5-ton tablet press for preparation. For samples, the machine is equipped with pointer pressure gauge as standard. The dual scale displays the pressure tonnage and pressure in megapascals. The applied pressure does not need to be converted, which is simple and intuitive, and avoids mold overpressure. If the pressure control is more strict, it is recommended to choose a digital pressure gauge, 0.00-40.00Mpa/0.01MPa, which is suitable for places with more precise pressure control or pressure test activities.

Technical parameters

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.

Pressure conversion table
