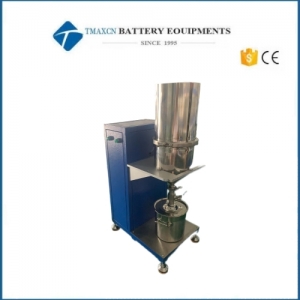

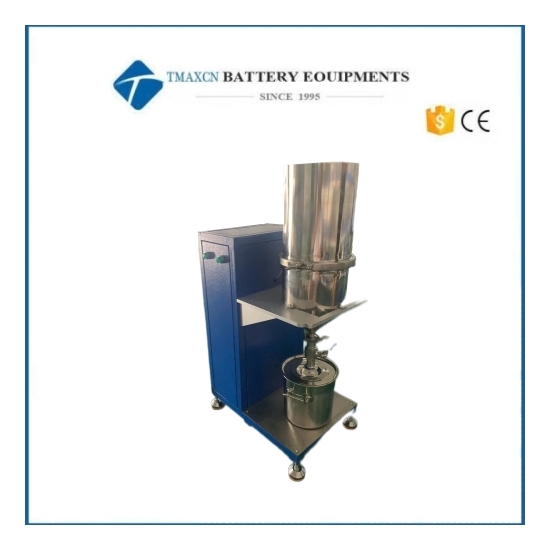

5L Small Battery Electrode Slurry De-Ironing Filtration System Machine For Lithium Ion Battery Making
Model Number:
TMAX-FT02Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

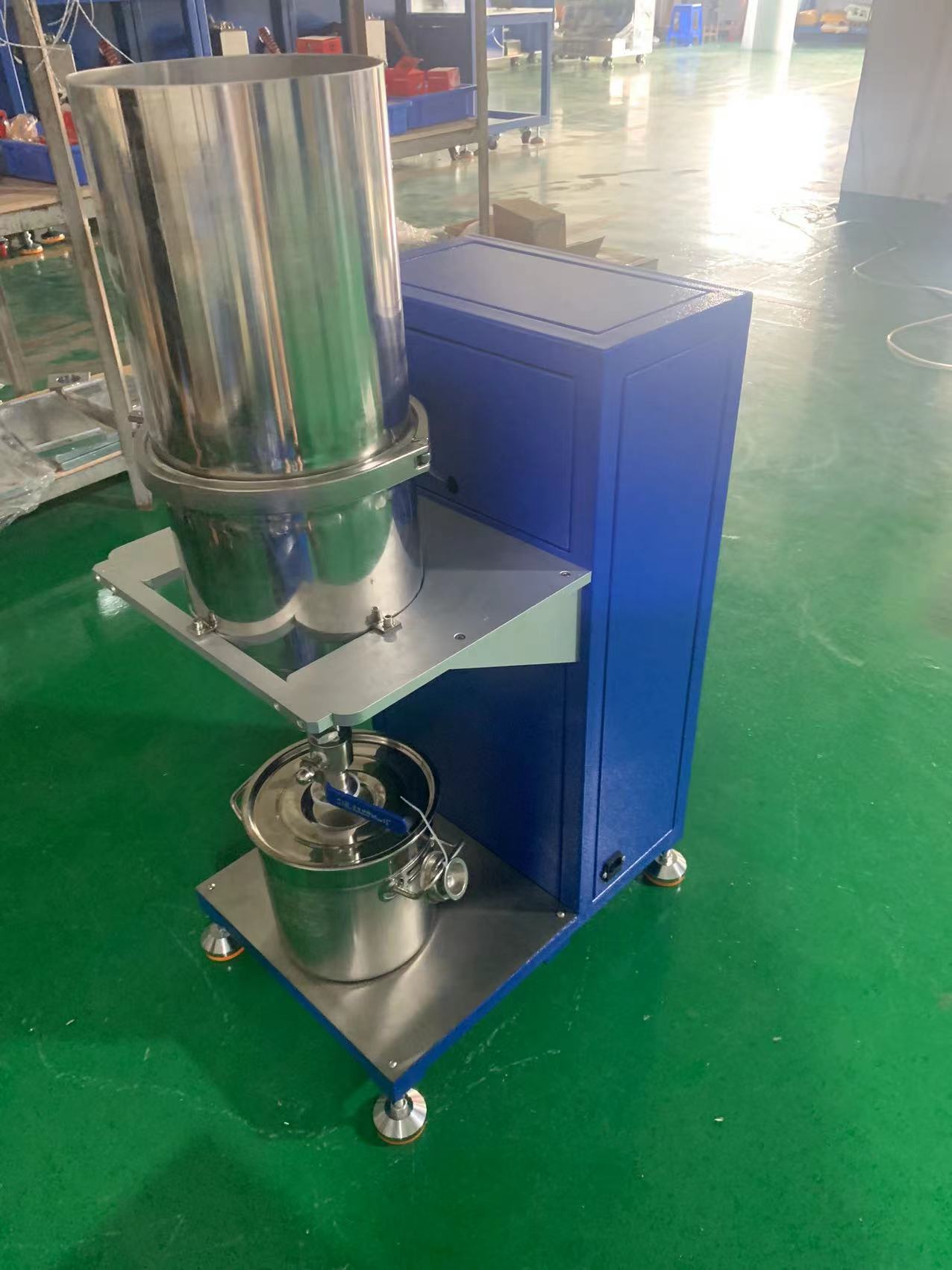

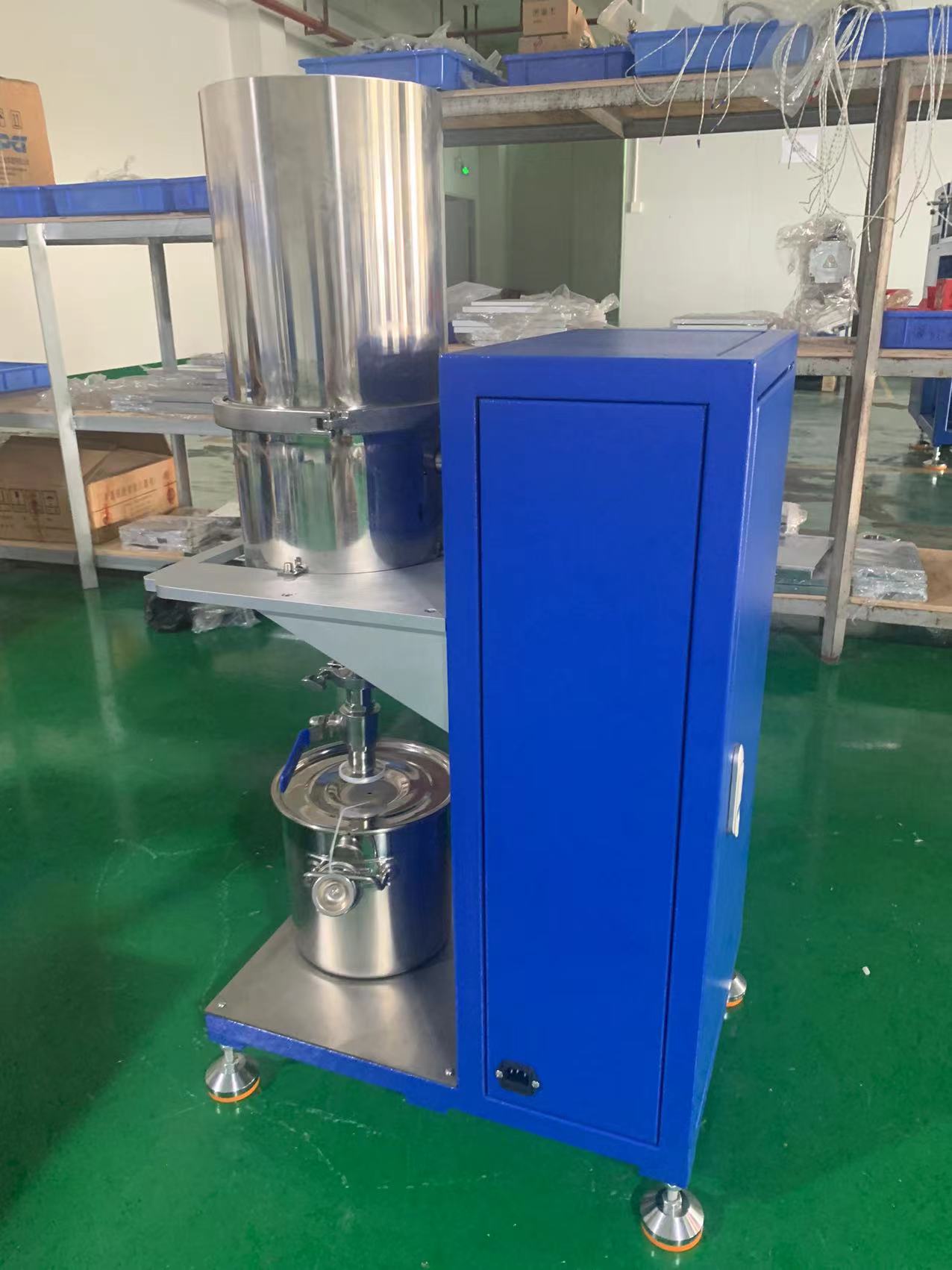

5L Small Battery Electrode Slurry De-Ironing Filtration System Machine For Lithium Ion Battery Making
Product Introduction：
The equipment is equipped with two functions of iron removal and vacuum filtration, which are used for the optimization of the slurry after the lithium ion battery anode and cathode slurry ingredients and before the coating.，
Main feature：
*All stainless steel design, good corrosion resistance, easy to clean.*Beautiful appearance, easy maintenance and other advantages.
*Equipped with vacuum system to achieve filtration, and different mesh filters can be configured according to requirements；
*Equipped with permanent magnet for iron removal treatment, the magnet can be easily removed for cleaning；
*Optimize the fine particle size of slurry and improve the consistency of coating products；
Work process：
First turn on the power supply and start the vacuum pump. The slurry is poured into the upper cavity, and iron impurities are absorbed by the magnet. Then the slurry is sucked into the lower cavity through the filter through the vacuum, and finally the valve is opened, and the slurry in the lower cavity flows into the receiving barrel. Finish filtering.
Technical Parameters
|
Model |
TMAX-FT02 Slurry iron removal filter |
|
Processing content |
vacuum filtration, magnetic separation and iron removal, intermittent processing |
|
Processing capacity |
5L/time |
|
Vacuum |
Absolute vacuum 65KPa |
|
Filter specifications |
below 1000 mesh, recommended lithium battery 80~120 mesh |
|
Iron removal capacity |
8000~10000 Gauss |
|
Slurry state |
Recommended viscosity≤20000CP, solid content≤80% |
|
Power supply |
single-phase voltage 100~240VAC±10%, frequency 50Hz/60Hz |
|
Power |
100W |
|
Installation size |
L500×W300×H850mm |
|
Weight |
40Kg |
Maintenance methods and precautions
1.Remove the dirt from the inner tank of the filter and the filter net after each filtration to keep it clean.
2.Regularly check the screws, nuts, pins and other fasteners in various parts to prevent loosening.
3.Do not touch the filter with sharp objects to avoid damage to the filter.
