5L/30L/60L Planetary Vacuum Mixing Machine
Model Number:
TMAX-PVM-10LType:
Planetary Mixer MachineMax. Loading Capacity:
5L/30L/60LNet Weight:
About 300kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportDelivery Time:
3 Days
Wechat:13506084915

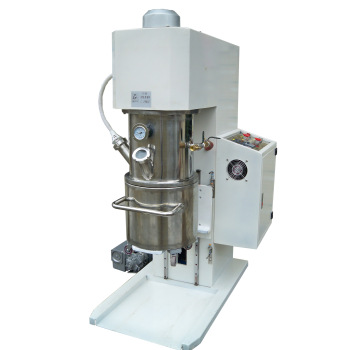

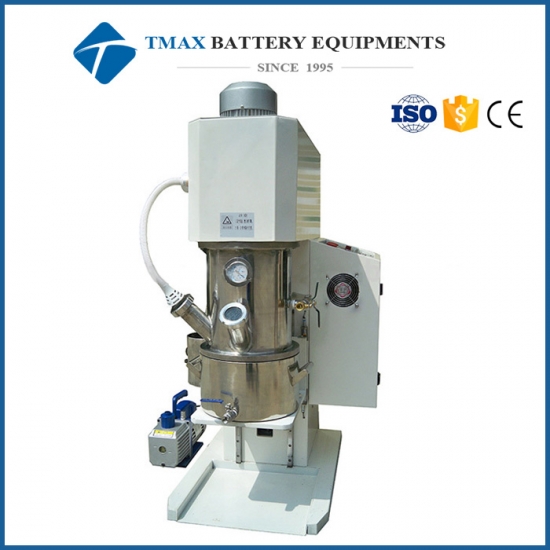

5L/30L/60L Planetary Vacuum Mixing Machine
SPECIFICATION
1 This TMAX-PVM-10L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2 This lab planetary mixer Mixing motor adopts transmission frequency adjustment,
can choose different rotational speed and torque according to different process, different viscosity.
3 The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model |
Planetary Vacuum Mixer TMAX-PVM-10L |
|
Source voltage |
AC 110V,220V,380V, 50HZ |
|
Power |
4500W |
|
Warranty |
One Year limited warranty with lifetime support |
|
Rotation speed |
0-1400 r/min, Through the inverter speed control |
|
Revolution speed |
0-70r/min |
|
Effective volume |
10L, 1-10 Liters Customized according request |
|
Design volume |
5L,30L,60L |
|
Mixing barrel opening mode |
Deceleration motor driven fill rises |
|
Mixing barrel size |
Φ310mm(Diameter)*200mm(Hight) |
|
Mixing time set |
0-99H can be set, auto stop when finish with vacuum |
|
Weight |
About 400kg |
|
Dimension(H*L*W) |
1800*1200*800mm |
|
Advantage |
10 liters 304 stainless steel container with high accuracy Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours. Double Step Rotary Vane Vacuum Pump is included for immediate operation Programmable controller to set time, speed, rotation direction. With time setting function Double blade design, make the material up and down around, mixing battery paste rapidly |
