5L Battery Electrode Slurry Magnetic De-Ironing Filtration System Machine
Model Number:
MSK-FT02Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

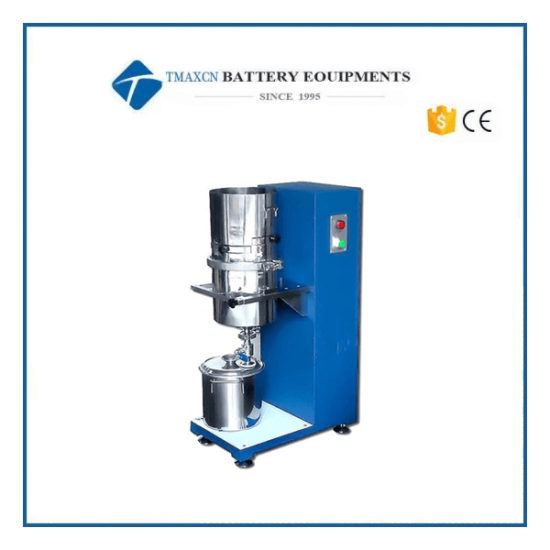

5L Battery Electrode Slurry Magnetic De-Ironing Filtration System Machine
Features
MSK-FT02 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
Specifications
|
Structure |
Containers Made of Stainless Steel 304 |
|
Voltage supply |
Input:110VAC - 240VAC universal power |
|
Power |
50W |
|
Working Temperature |
<=40°C |
|
Process Capacity |
5L |
|
Magnetic Field Strength |
8000 G |
|
Filter |
3 mesh filters: 80, 100, 120 |
|
Slurry Viscidity |
<=15000CP |
|
Humidity |
0-90%RH |
|
Deironing Function |
8000-10000 GC |
|
Overall Dimensions |
500mm(L) x 300mm(W) x 850mm(H) |
|
Shipping Weight & Dimension |
130 lbs, 48"x40"x43" |
|
Compliance |
CE Certified CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input ， which can be used without any safety certification |
|
Warranty
|
One year limited with lifetime support Parts rusted without regular cleaning and maintenance are not covered by the warranty |
STANDARD PACKAGE
|
Item No. |
Product Name |
QTY |
|
MSK-FT02 |
Magnetic De-ironing Filtration System (5L) for Battery Electrode Slurry |
1 |
|
FT02-Tank |
Receiving tank for Battery Electrode Slurry |
1 |
|
FT02-Container |
Slurry Container |
1 |
|
FT02-FILTER |
80,100,120 Filter mesh (3 pcs) |
1 SET |
|
UL adaptor |
UL certified adaptor |
1 |
|
Hex wrench |
4mm Hex wrench |
1 |
|
Screw-bolt |
Screw-bolt for taking out Magnetic rods |
1 |
