5-22 Channel 18650 26650 32650 21700 Cylidrical Battery Sorting Machine Sorter for Battery Pack Assembly

Model Number:
TMAX-FN
Type:
Automatic
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

5-22 Channel 18650 26650 32650 21700 Cylidrical Battery Sorting Machine Sorter for Battery Pack Assembly

Features

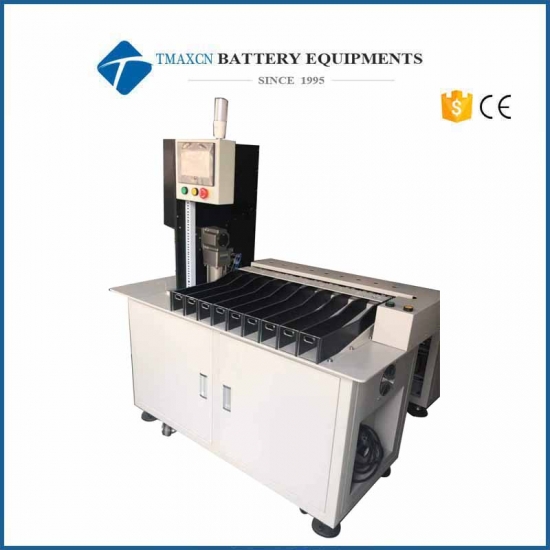

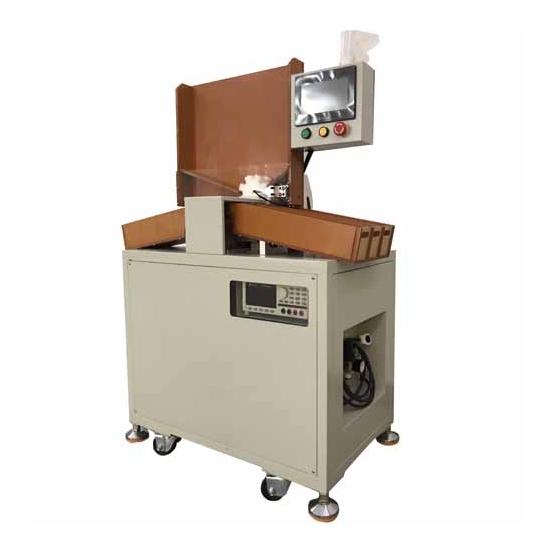

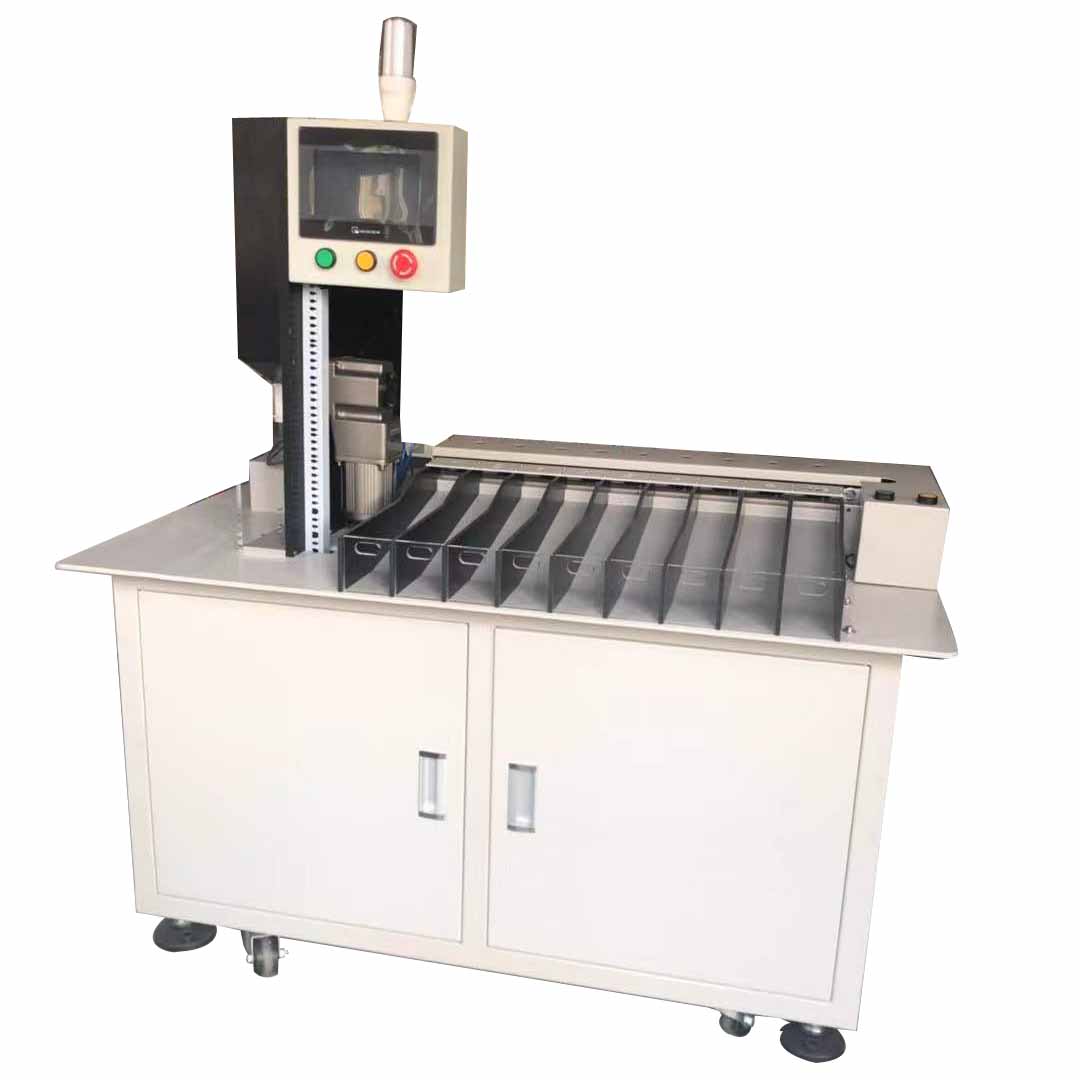

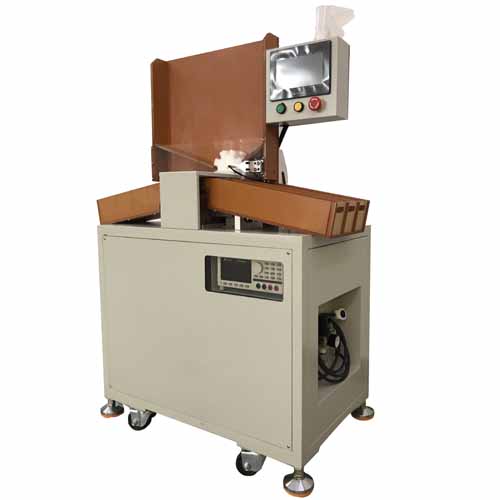

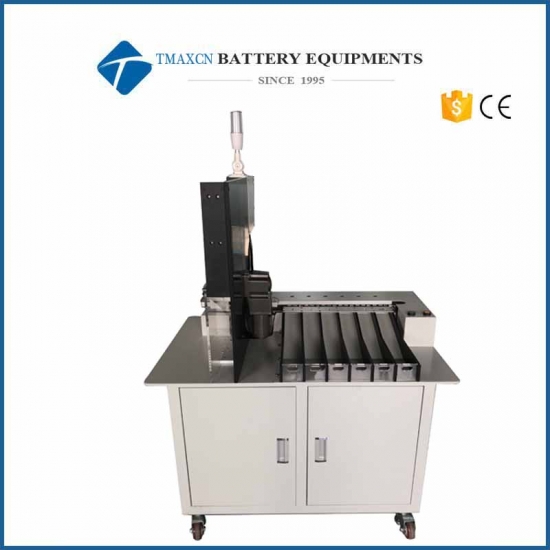

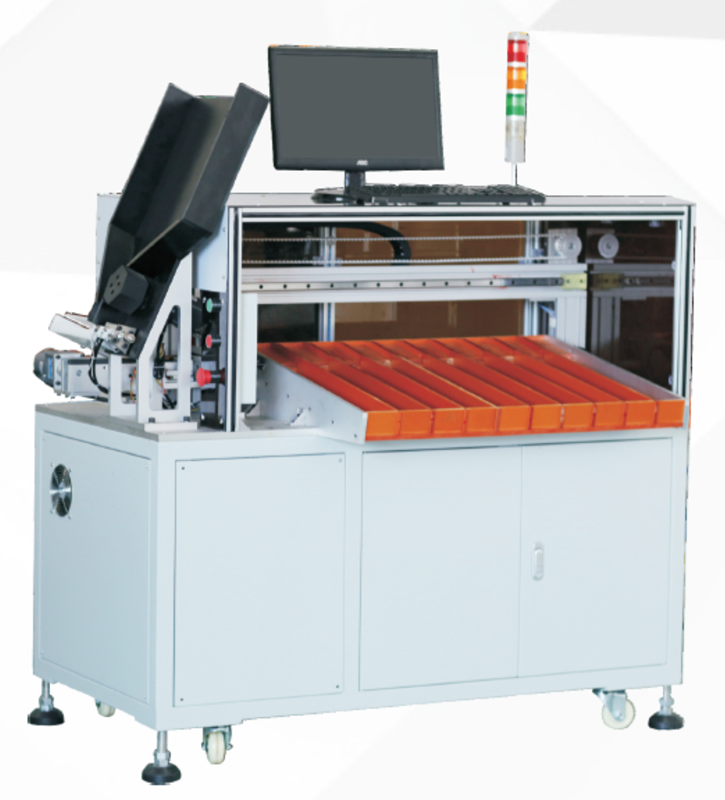

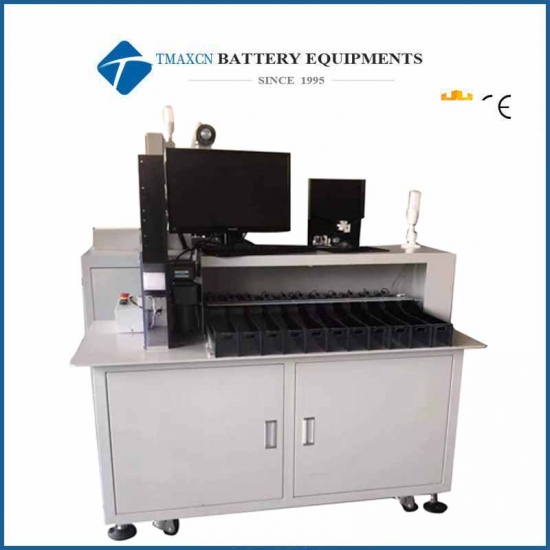

The 5/6/9/10/11/13/20/22 channel battery sorter of cylindrical battery automatic sorter is used for automatic sorting of voltage and internal resistance of 18650/21700/26650/32650 cylindrical cells. It can also separate voltage or internal resistance separately. This test and sorting is composed of PLC control + PC industrial computer, PLC control AC servo motor, stepping motor and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation. The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous, the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting equipment in the market.

Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products

Technological Process

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.

Structure of Sorter

1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.

2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.

3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.

4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.

5) The equipment is equipped with universal movable casters, which can move easily when shifting.

Specifications

5 Channel Battery Sorter
Voltage Supply	220V±10%/50Hz±10%
Power	＜800W
Display Screen	Large size LCD screen/Touch screen
Battery Types	Cylindrical Cell (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.5% rdg Resolution: 0.01mV
Sorting Speed	80PPM
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000pcs/h

10 Channel Battery Sorter
Model	TMAX-FN-10
Power supply	AC220V ± 10% 50Hz
Power Consumption	≤1000W
Display Screen	Large size LCD screen/Touch screen
Compressed Air Pressure	0.5 ~ 0.7Mpa
Sorting Speed	≥ 90PPM
Chance of Damaged Product	≤0.1%
NG Equipment Failure Rate	≤0.1%
Open Circuit Voltage Accuracy	± 0.1% rdg Display Resolution: 0.1 millivolt
AC Resistance Accuracy	± 0.5% rdg Display Resolution: 0.1 milliohm
Productivity	5000pcs/h
Dimension	1330x920x1600mm
Adaptation Battery	Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	10 channels
Operating Temperature Range	25 ° C ± 5 ° C
Humidity	≤85%
Total weight	300kg

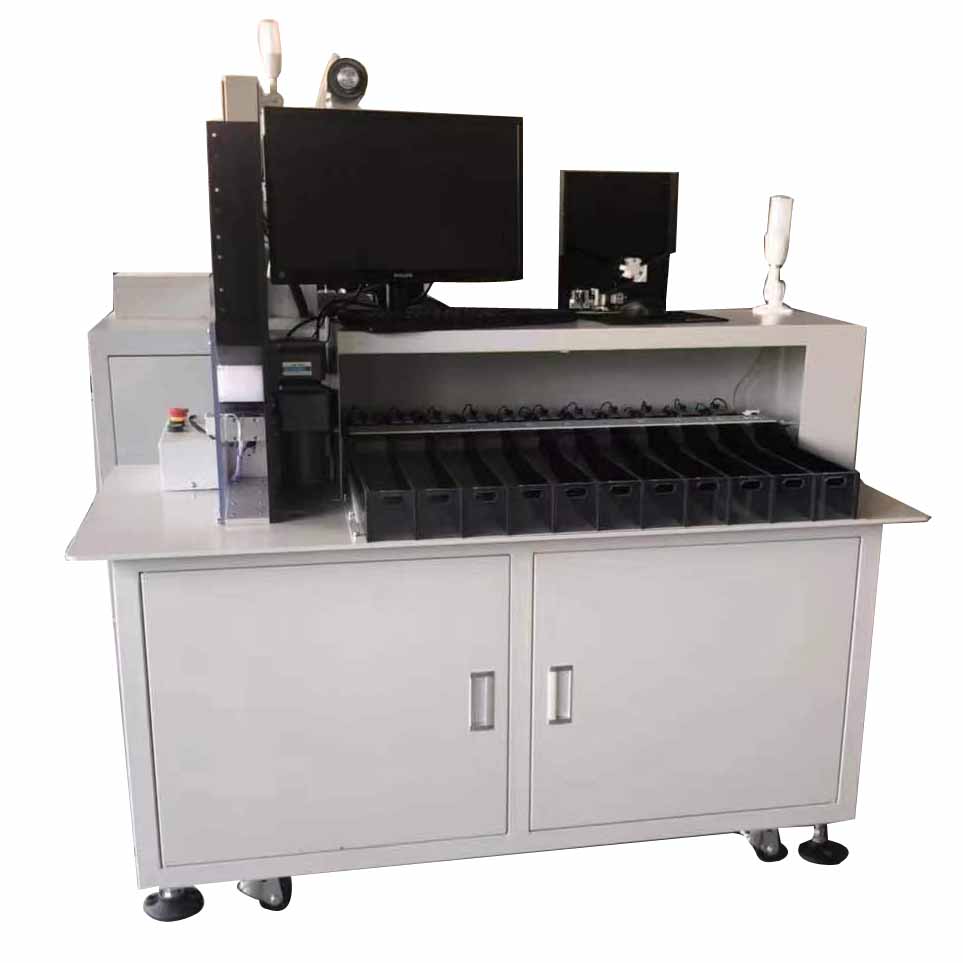

11 Channel Battery Sorter
Model	TMAX-FN-011
Power supply	AC220V ± 10% 50Hz
Voltage	900W
Sorting parameters	Open Circuit Voltage and AC Internal Resistance
Compressed Air Pressure	0.5 ~ 1.0Mpa
Sorting Speed	≥80PPM
Productivity	5000pcs/h
Dimension	1320x880x1450mm
Adaptation Battery	Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	11 channels
Internal Resistance Tester	HIOKI3561 or HK3561
	HIOKI3561: Open circuit voltage accuracy:± 0.01% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.1% rdg; Display Resolution: 0.01 mΩ HK3560: Open circuit voltage accuracy: ± 0.05% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.3% rdg; Display Resolution: 0.01 mΩ
Total weight	280kg
Control component	7.5 inch touch screen, 3-axis PLC programmer
Motion device	Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged.
Feeding	Using hopper feeding mode, 500 PCS can be put in one time.
Data storage	Test data can be stored on a U disk
Scan code function	Can be customized
Automatic Online Interface	It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.
Other	Customizable scanner and database data docking
	Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core
	Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)
	Automatic collection of production quantity to show current production efficiency

Equipment Configuration List

Tester	HIOKI3561 or HK3561
Computer	Industrial Computer
PLC	FX3U-80MT/ES-A and SC-09
Servo	Panasonic A5 Series
Sensors	Panasonic and Omron, Japan
Guideway	ShangYin, Taiwan
Bearing	Japan NSK
Cylinder	Adec
Indoor temperature	- 30 ℃ ~ 70 ℃
Factory	No pollution and no strong electromagnetic interference

13 Channel Battery Sorter
Electricity Source	220VAC±10%/50Hz,
Power	1KW
Working Gas Source	0.5-0.8MPa
Adaptation Battery	18650,26650,32650,21700 ect
Efficiency	60-70PPM
Dimension	1500L X 700W X 1600H mm
Instrument	Precision voltage resistance tester (HK3561)
Batteries Sorting Parameters	Open circuit voltage & AC resistance
Open Circuit Voltage Accuracy	± 0.05% rdg Display Resolution: 0.1 millivolt
AC Resistance Accuracy	± 0.5% rdg Display Resolution: 0.01 milliohm
Channel	13 channel
Linear Guide Rail	HIWIN
PLC	Motion Controller
Solenoid Valve	AirTAC
Cylinder	AirTAC
Noise	≤65db
Equipment Crop Mobility	≥95%

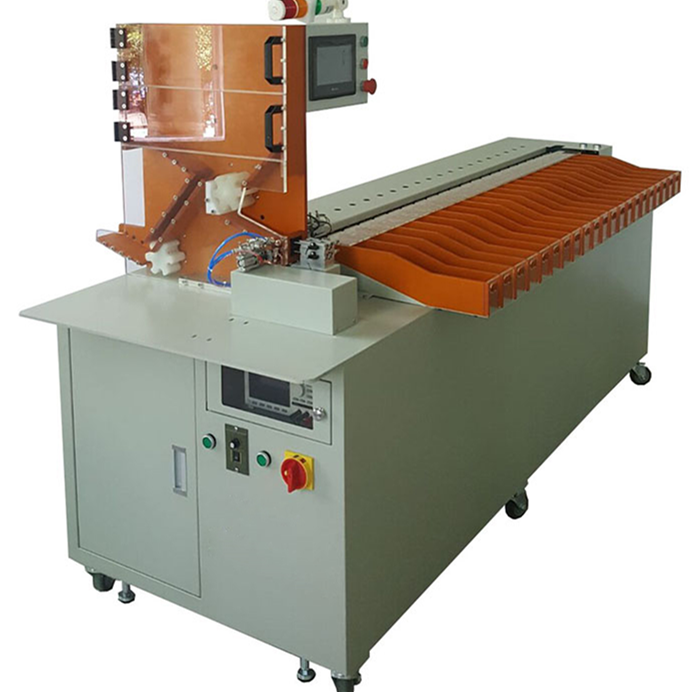

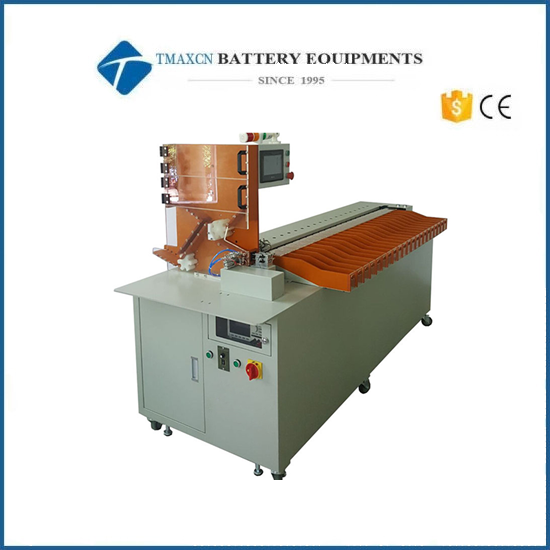

22 Channel Battery Sorter
Channel No.	22
Production Efficiency	6000pcs/hour
Scope of Adaptation	Automated sorting voltage for 18650 or other cylindrical cores. Internal resistance can also be sorted separately or separately.
Automatic Online Interface	It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.
External Connection	Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)
Equipment Power	1.6KW, 220V/110V AC input, 50Hz
Air Pressure	0.4-0.8Mpa
Voltage Setting	0.000V-6.000V
Internal Resistance Setting	000.0 milliohms - 999.9 milliohms
Standard Tester	HK3561 High Speed Tester Voltage Accuracy :0.00005V Internal Resistance Accuracy:0.01 moh
