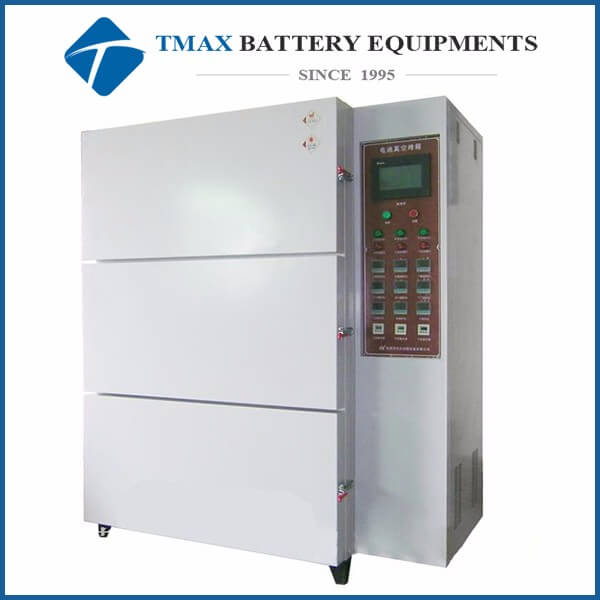

430L Three Layers Battery Vacuum Drying Oven For Cylindrical Cell Production

Structure

1.Total capacity: 430 liters (143 liters per level)

2.Inner Chamber size:W300mm x D800mm x H600mm per level

3.A good vacuum seal is achieved by silicone door gasket and positive latch door

4.High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°Cduring the work

5.Interior material: Stainless Steel 304 (3mm thick)

6.Exterior material:Cold rolled steel plate (2mm thick)

Working Voltage

Three Phase AC 380V

Power Consumption

13.5KW

Heating Rates

RT-80°C, less than 20 minutes (unloaded)

Thermocouple

K type

Working Temperature

RT ~200°C

Temperature Controller

1.PID precise temperature controls withbuilt-in over-temperature protection

2.Temperatureuniformity:+/-2°C@ 85°C

3.TemperatureStability: +/-1°C of the setpoint

Vacuum Pump(optional)

Ultimate Vacuum Level: 750 millitorrs.

Gas Inlet/Vacuum Port

1.Features 1/4" tube fitting for chamber purging with inert gas

2.Vacuum Port: KF-25

Compliance

CE Certified

Warranty

Oneyearslimited warranty with lifetime technical support

Dimensions

Oven: 1850 x 1420 x 890 mm(L x W x H)

Net Weight

700kg

Application Notes

Such an oven is an excellent tool for the larger volume of battery electrode drying.
