40 Layers Ultrasonic Metal Welding Machine For Battery Electrode Welding
Model Number:
TMAX-USW-3000WInput Power:
3000WDimension(L*W*H):
Welding Area: 6mm*6mm It can be customizedCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
40 Layers Ultrasonic Metal Welding Machine For Battery Electrode Welding

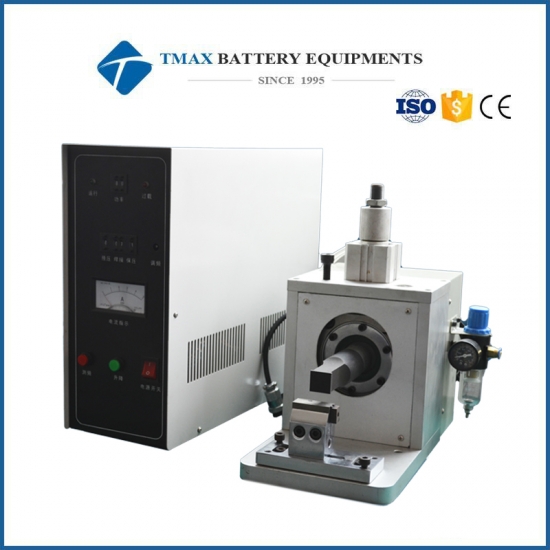

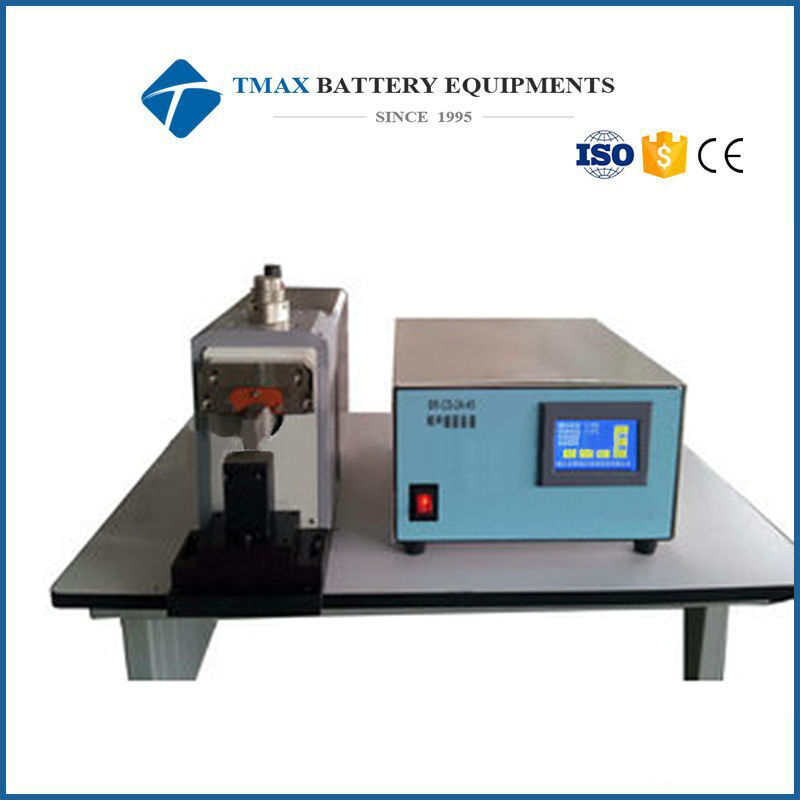

TMAX-USW-3000W ultrasonic metal welding machine is Designed for Lithium battery tab welding with touch-screen controller.
It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion
pouch cells in R&D laboratories and production line.
The 3000w Battery Welding Machine can weld stacked electrode with 10-40 layers aluminum foil or copper foil with Al tab and
Nickel tab, If with bigger battery with layer up to 30 layers, can choose the
|
Model |
Battery Welding Machine TMAX-USW-3000W |
|
Type |
Ultrasonic spot welding machine |
|
Welding ability: |
|
|

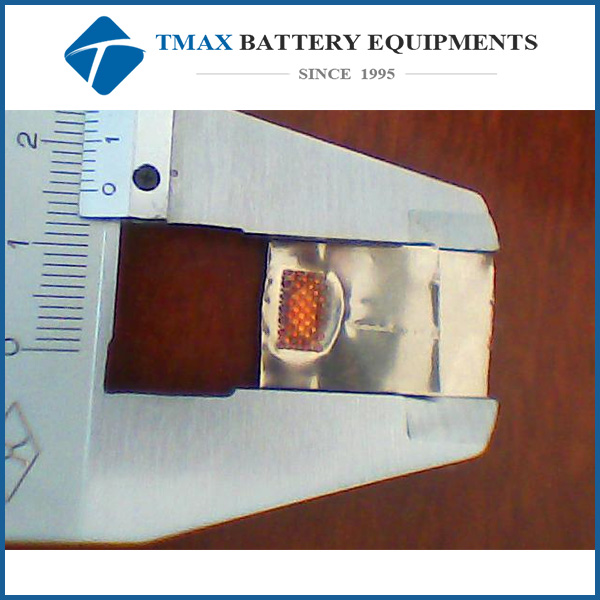

1 10-30 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding. Welding point : 4*6, 4*8, 4*10, 4*12 mm customized |
|
|

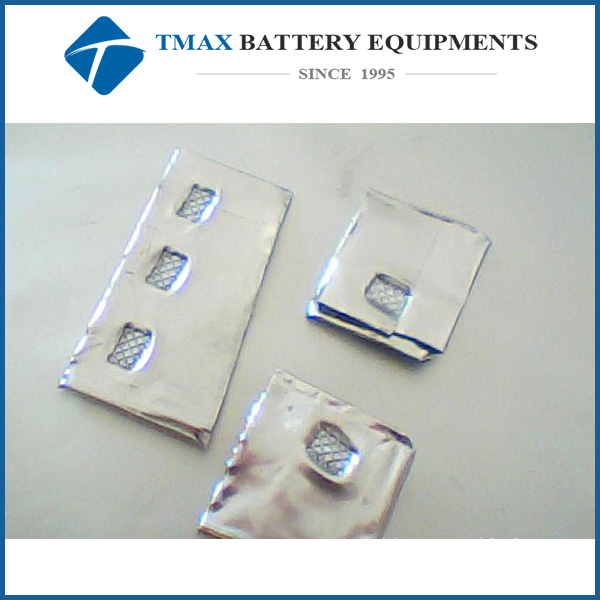

2 10-30 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding. Welding point : 4*6, 4*8, 4*10, 4*12 mm customized |
|
|
3 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding. Welding point : 4*6, 4*8, 4*10, 4*12mm customized |
|
|
4 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld. Welding point : 4*6, 4*12mm customized |
|
|
Frequency |
24KHZ |
|
Max output power |
3000W |
|
Control mode |
CPU control |
|
Air supply |
≥0.5MPa |
|
Voltage source |
110/ 220V 50HZ/60HZ |
