30T 300C Automatic Hydraulic Hot Press Machine With Double Heating Plates
Model Number:
TMAX-RYJ-600Z3Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

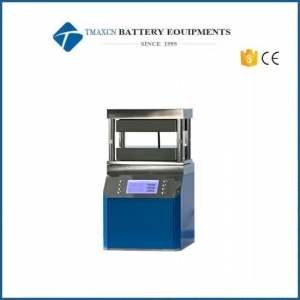

30T 300C Automatic Hydraulic Hot Press Machine With Double Heating Plates
Introduction
The RYJ-600Z series electric heating tablet press is a fully automatic, integrated, and widened hot pressing machine developed by our company based on market demand and the original manual hot press and split hot press. This hydraulic press is widely used to meet the needs of some customers for large tonnage pressure and large area sample heating. Hot press machines are mainly used in laboratories and units that require high-temperature and high-pressure sample preparation or testing of powder samples, particle samples, plastic films, and other solid samples. The particles or powders of the samples are heated and pressurized to improve their chemical stability, which is not easy to break and is conducive to cutting and preservation. They are ideal supporting equipment for engineering and technical personnel in various universities and research institutes to conduct spectral detection, analysis, and qualitative analysis.
Specification
|
Model |
RYJ-600Z3 |
|
Pressure range |
1.0-30T/0.1t |
|
Pressurization process |
Automatic, program pressurization/slow pressurization - program pressure maintaining/replenishment timed pressure relief |
|
Hold time |
0-999.59 (minutes and seconds) |
|
Temperature controller temperature control range |
RT -500℃/0.1℃ |
|
Temperature controller type |
Multifunctional PLC program temperature controller |
|
Mold heating temperature |
Room temperature -300.0℃ |
|
Insulation method |
Inlet insulation board |
|
Mold cooling method |
Rapid cooling of water cooling cycle |
|
Equipment structure |
Integrated structure, equipment without sealed connection, reducing oil leakage points |
|
Heating mold type |
Double plate heating, pressurization, fixed upper plate, polished panel |
|
Model Description |
Water cooler optional! If you need a high temperature of 500℃, please choose RYJ-600ZG type |
|
Heating mold size |
300x300mm |
|
Overall size |
400x500x720mm |
|
Equipment power supply |
220V/3000W |
|
Equipment weight |
About 300kg |
