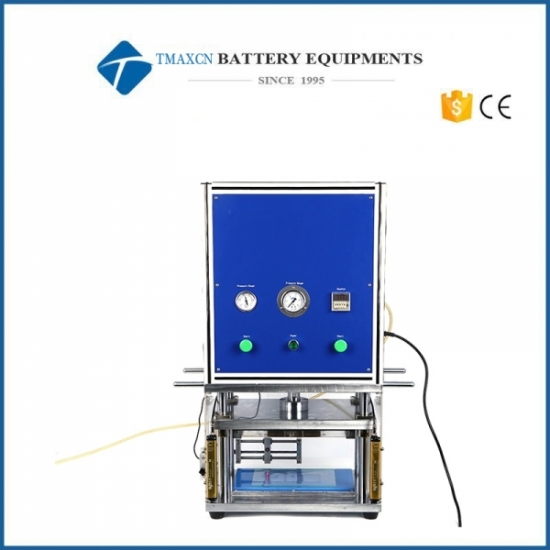

300*250 mm Pouch Cell Electrode Die Cutter Machine
Model Number:
TMAX-MQ300Type:
Electrode Die CutterDimension(L*W*H):
Max.300mm(L) x 250mm(W) The mold can be customizeNet Weight:
150kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
300*250 mm Pouch Cell Electrode Die Cutter Machine

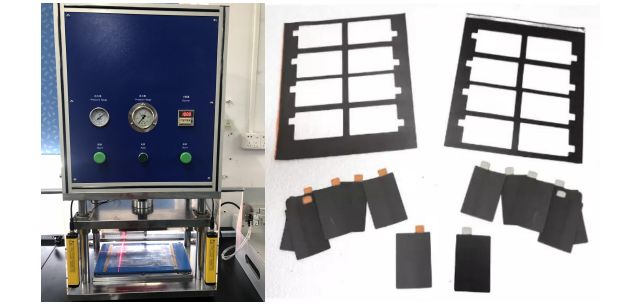

TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

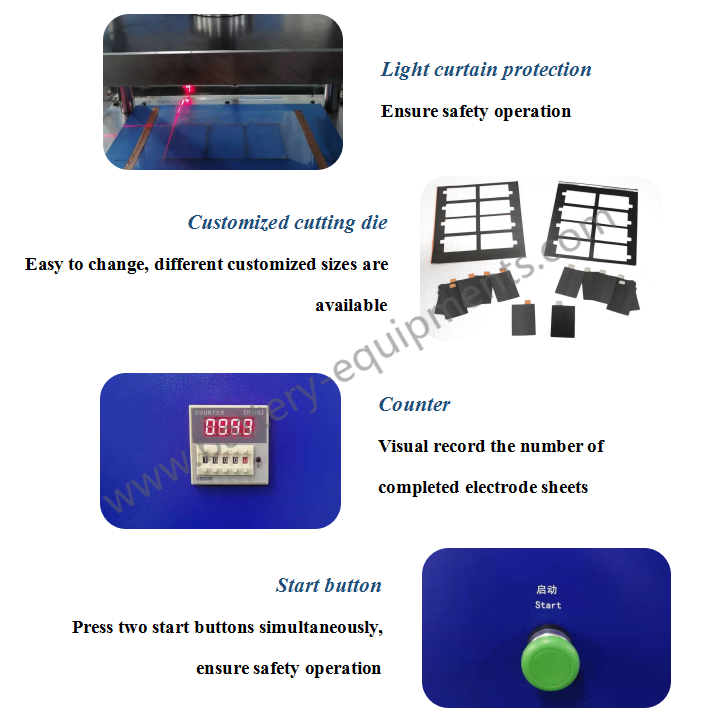

This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.
High speed, high accuracy,long lifetime to make cut electrode without burr, to get a good consistency.
Specifications
|
Model |
Battery Electrode Die Cutter Machine TMAX-MQ300 |
|
Work voltage |
AC110V/220V, 50/60HZ |
|
Power |
100W |
|
Warranty |
One year limited warranty with lifetime support |
|
Cutting Die |
Customized according to customer's request |
|
Safety Protection |
Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button |
|
Cutting Accuracy |
±0.1mm |
|
Air Cylinder |
5 tons Max. pressure |
|
Tensile Cylinder |
0.15 tons pressure |
|
Cutting stroke |
250mm |
|
Feeding |
Manually |
|
Yield |
800 - 2000 pieces of electrodes per hour |
|
Air Pressure |
0.5-0.8Mpa |
|
Dimension (L*W*H) |
580*455* 900mm |
|
Net Weight |
120kg (265 lbs) |
|
Shipping Dimensions |
47*75*109cm |
|
Recommendation |
For the pouch cell assembly, we also recommend you the following items:
Forming machine Hot sealer with tab Vacuuming sealer
Ultrasonic tab welder Stacking machine Aluminum Laminated Film |
