3 in 1 Large Semi-automatic Battery Edge Trimming Machine

Ironing Module

Trimming  Module

Folding  Module

Max. Power Consumption

2.5KW

Working Voltage

208-240 VAC, single phase

Compress Air Pressure

·          0.7 - 0.8 MPa (Each stroke will consume 0.09L air )

·          Note:Air Compressor  is not included .

Size Info (Edge Ironing, Trimming & Folding Width/Length)

·          Cell length: 10~580mm

·          Cell width: 10~240mm

·          Cell thickness: 2~12mm

Temperature Info

Ironing Temperature: 0-250 ℃  adjustable

Dwell Time

0-99 seconds adjustable

Productivity

160~220 pcs / hr (Expected lifespan of Trimming blade ~ 1 million times)

Trimming accuracy

+/-0.1mm

Working Modes

·  Continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases (manual cases loading is needed)

·  Linear sliding rail for easy manipulation of trimming, folding and ironing modules.

How to use

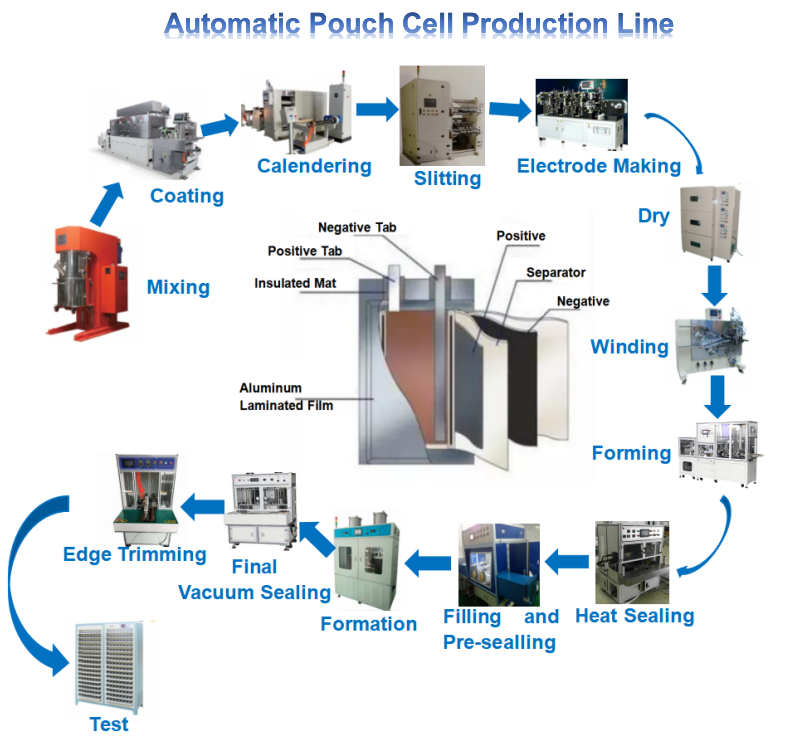

When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below:
Step 1 . The trimming module will cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing
Step 2 . The ironing  module will  smooth the edge prior to the folding
Step 3 . The folding  module will  partially fold the edge
Step 4 . The ironing  module will  smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.

Product Dimensions

2000X 850 X 1800 mm

Net Weight

360Kg

Warranty

Two Years limited warranty with lifetime support.
