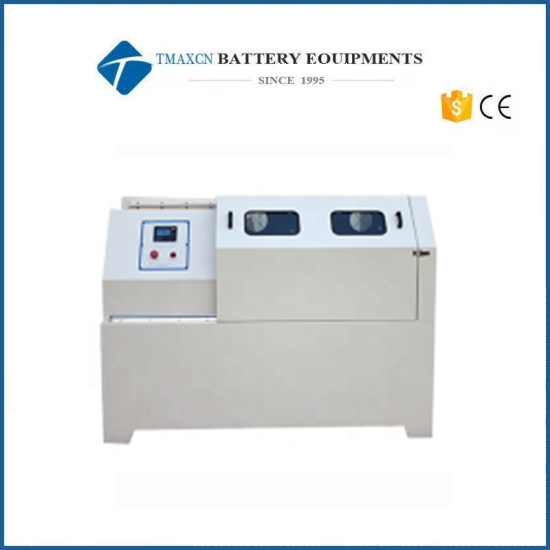

2L-100L Lab Scale Vertical Planetary Ball Bead Mill For Nano Powder Making

Model Number:
TMAX-XQM100
Type:
Planetary Ball Mill
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

2L-100L Lab Scale Vertical Planetary Ball Bead Mill For Nano Powder Making

Overview of Industrial Planetary Ball Mill

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tmax planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

Working Principle of Industrial Planetary Ball Mill

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

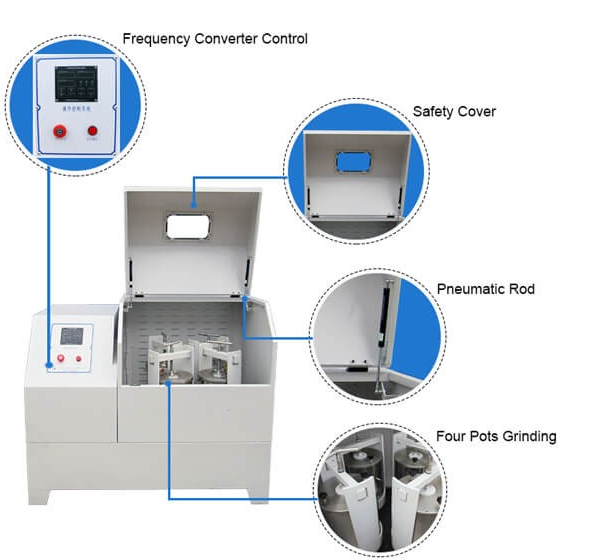

Features of Tmax Industrial Planetary Ball Mill

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

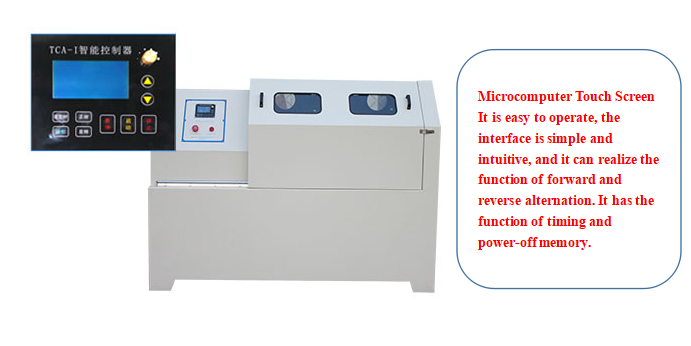

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tmax Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Specification

Drive Mode	Gear drive
Operate Mode	Two or four grinding jars working together
Maximum Loading Capacity	2/3 of the total volume of milling jars
Feeding Size	Soil material≤10mm,other materials≤3mm
Output Granularity	Smallest granule reaches 0.1μm
Rotational Speed Ratio	1:2
Max.Continuous Operating Time	72 Hours
Materials of Jar	Stainless steel.agate,nylon,corundum,zirconia,etc

Type	Specification	Volume of Each Matched Pot	Qty
XQM-2	2L	50ml-500ml	4 set
XQM-4	4L	250ml-1L	4 set
XQM-6	6L	lL-1.5L	4 set
XQM-8	8L	1L-2L	4 set
XQM-10	10L	1L-2.5L	4 set
XQM-12	12L	1L-3L	4 set
XQM-20	20L	2L-5L	4 set
XQM-40	40L	5L-10L	4 set
XQM-60	60L	10L-15L	4 set
XQM-100	100L	20L-25L	4 set

Model	Power supply	Motor power Converter power	Operating time setting (min)	Positive and negative alternating operation time(min)	Adjustable speed Revolution (rpm)	Adjustable speed Rotation (rpm)	Noise <db
XQM-2	220V 50HZ	0.75KW	1-9999	1-999	30-335	70-670	60db
XQM-4	220V 50HZ	0.75KW	1-9999	1-999	30-335	70-670	60db
XQM-6	220V 50HZ	0.75KW	1-9999	1-999	30-335	70-670	60db
XQM-8	220V 50HZ	1.5KW	1-9999	1-999	35-290	70-580	60db
XQM-10	220V 50HZ	1.5KW	1-9999	1-999	35-290	70-580	60db
XQM-12	220V 50HZ	1.5KW	1-9999	1-999	35-290	70-580	65db
XQM-20	380V 50HZ	4KW	1-9999	1-999	25-215	50-430	65-db
XQM-40	380V 50HZ	5.5KW	1-9999	1-999	20-195	40-390	68db
XQM-60	380V 50HZ	7.5KW	1-9999	1-999	27-174	40-260	68db
XQM-100	380V 50HZ	11KW	1-9999	1-999	27-160	40-240	68db

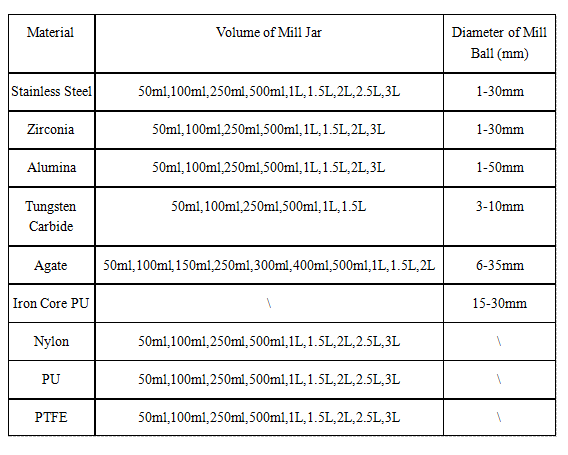

Accessories of Mill Jars & Balls For Industrial Ball Mill

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

material of ball mill1

material of ball mill2

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

material of ball mill3
