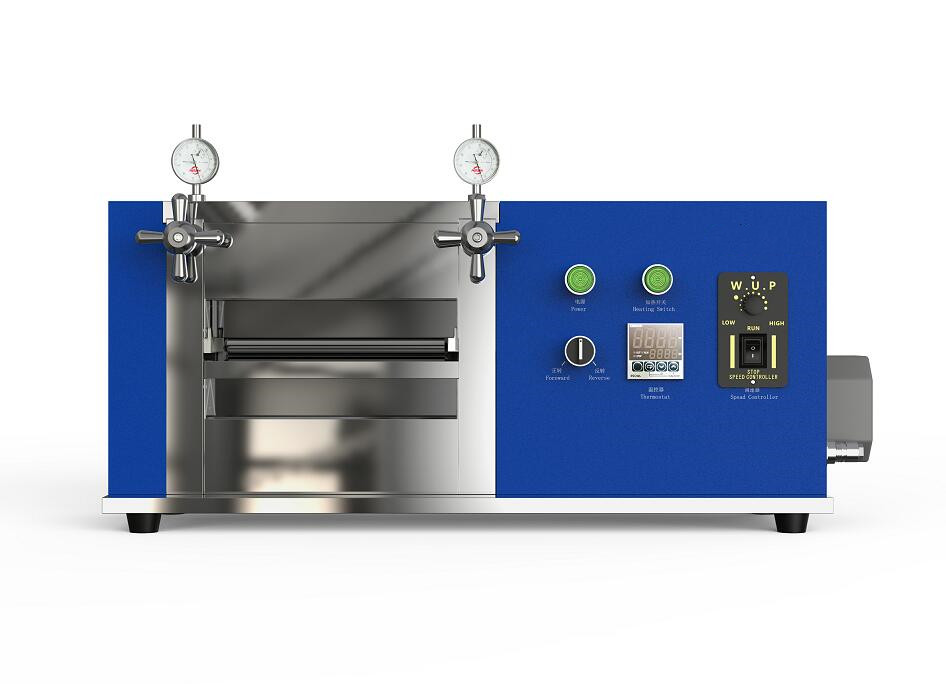

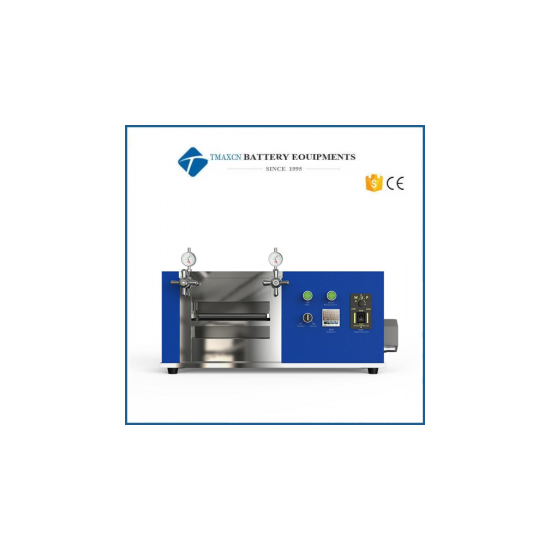

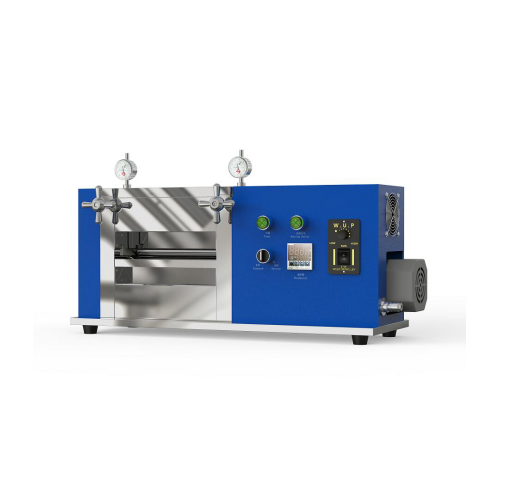

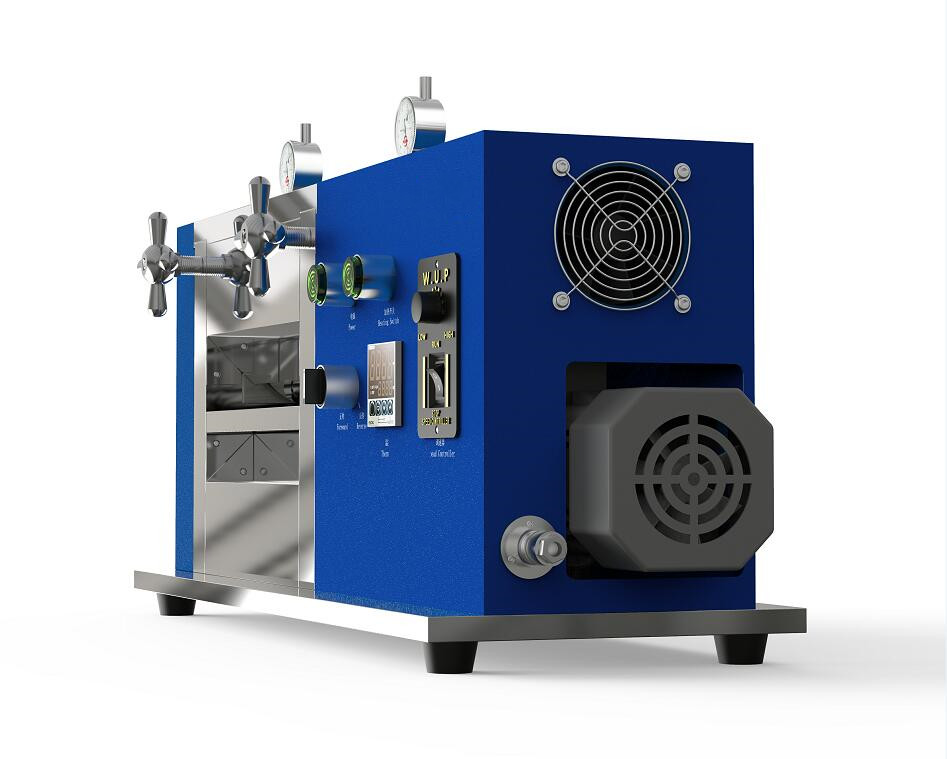

250mm Width Lab Heat Roller Press Calender Machine

Model Number:
TMAX-JS
Dimension(L*W*H):
Diameter 100/200
Net Weight:
55kg(180lbs)
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

250mm Width Lab Heat Roller Press Calender Machine

1.Used in lithium battery material,metal in Lab
2.Easy to operate
3.Roll width: 100/150/200/250mm

4.One year warranty,one stop service,provide full solutions

TMAX-HR100 Small Calendar machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.

ITEM	Unit	Data
Size(LWH)	mm	390x250x356
Weight	kg	55
Roll Width	mm	100
Hot rolling width	mm	100
Calendering thickness	mm	0~2

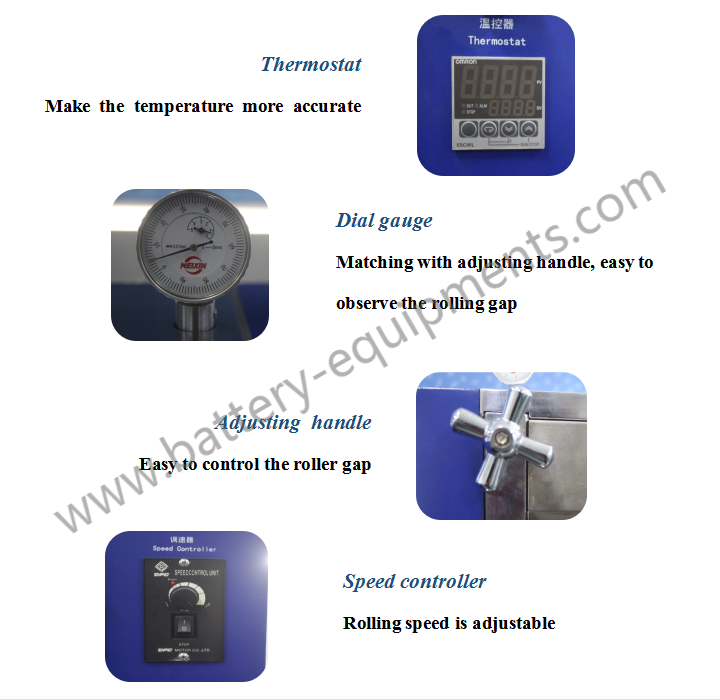

Dial Gauge Accuracy	mm	0.01
Rolling Speed	mm/sec	0~10
Roller Surface Max. Tem	°C	130
Surface hardness of rollers		HRC60-62
Total Power		AC220V,720W
