250 x 800 mm Vacuum Film Coating Machine with Vacuum Chuck
Model Number:
TMAX-AFA-L800Input Power:
750WDimension(L*W*H):
250mmW x 800mmLNet Weight:
About 65kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

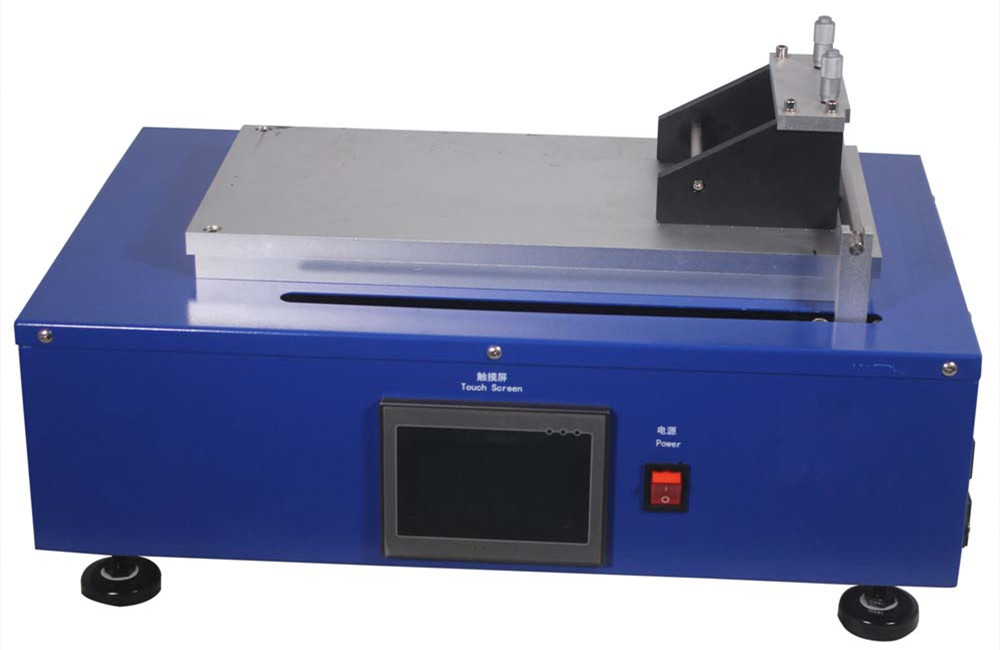

250 x 800 mm Vacuum Film Coating Machine with Vacuum Chuck
TMAX-AFA-L800 is a CE Certified 800 mm long tape casting coating machine with vacuum chuck, oilless vacuum pump, and micrometer adjustable applicator. It is designed for producing long thick film and has a unique driving system to produce smooth coating at all types of materials. It is specially designed for electrode coating of varies cylindrical batteries such as 18650.
Specification:
|
Voltage |
110V - 240V AC 50/60Hz Single Phase |
|
Power |
750W |
|
Traverse Speed |
0 - 80mm/sec variable |
|
Stroke Length |
10 - 800mm adjustable by using Adjustable Position Switch |
|
Platform |
Aluminum alloy flat vacuum chuck Vacuum chuck Dimensions: 800mm(L) x 250mm(W) x 28mm(H) |
|

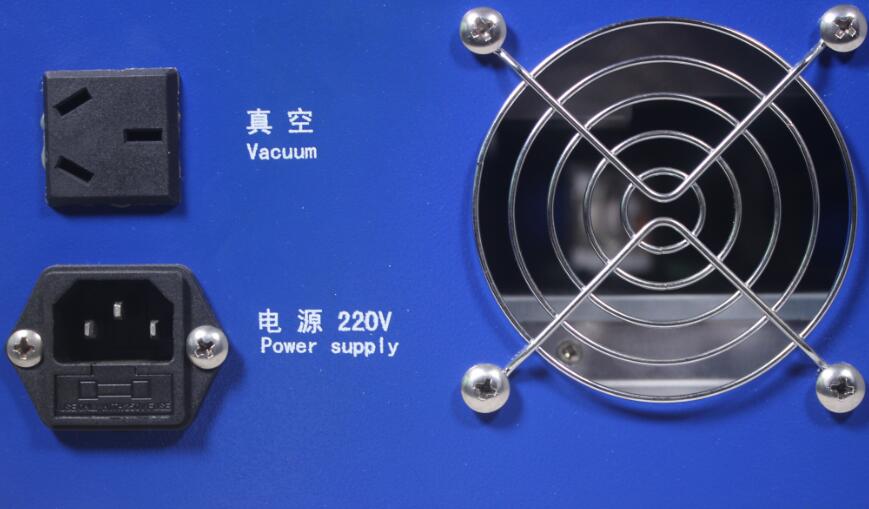

Vacuum Pump |
Vacuum pump is included. |
|
Film Applicator |
Built in pushing bar for using micrometer adjustable applicator, which may be ordered separately 180 mm width Applicator with micrometer adjustable head included to make coating upto 800mm(L) x 180mm(W) Note: Thinnest film can be achieved is > 10 microm |
|
Max. Coating Area |
800mm(L) x 250mm(W) |
|
Accuracy of Film thickness |
+/- 0.01mm |
|
|
Heating lid is available at extra cost for drying . Working voltage of heating lid would be the same as the input voltage for the coater. Max. working pwoer: 750W Max. heating temperature: 100°C |
|
Machine Dimensions |
960mm(L) x (W) x 240mm(H) |
|
Net weight |
65 kg |
|
Compliance: |
CE Certified |
|
Warranty |
Two Years limited with life time support |
