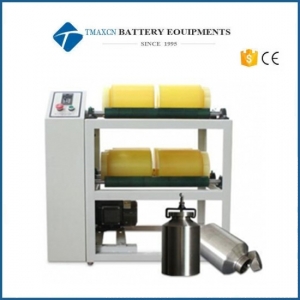

2-8 Work Positions Rolling Mill Jar Ball Mill For Lab R&D

Model Number:
TMAX-GQM-4-5
Input Power:
0.75KW
Dimension(L*W*H):
750*470*564mm
Net Weight:
80KG
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

2-8 Work Positions Rolling Mill Jar Ball Mill For Lab R&D

Overview

Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.

Lab Jar Mill

When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.

Features

1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set as per users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.

Application Cases of Planetary Ball Mill

Lab Jar Mill

Technical Parameters of Lab Jar Mill

Category	Model No.	Power Supply	Rotate Speed	Max Load Per Jar	Dimensions & Net Weight
2 Work Positions	GQM-2-5	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480685mm 59KGS
	GQM-2-15	220V-50Hz or 60Hz/1.1kw	40-365 rpm	80KGS	1130550690mm 80KGS
	GQM-2-20	220V-50Hz or 60Hz/1.5kw	40-340 rpm	120KGS	1350650690mm 92KGS
4 Work Positions	GQM-4-5 Single layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950660690mm 70KGS
	GQM-4-5 Double layer	220V-50Hz or 60Hz/0.75kw	50-410 rpm	35KGS	950480870mm 92KGS
	GQM-4-15	220V-50Hz or 60Hz/1.5kw	40-365 rpm	80KGS	1130800690mm 95KGS
	GQM-4-20	380V-50Hz or 60Hz/2.2kw	40-340 rpm	120KGS	1350820690mm 122KGS
8 Work Positions	GQM-8-5	220V-50Hz or 60Hz/1.5kw	50-410 rpm	35KGS	950660960mm 106KGS
8 Work Positions	GQM-8-15	380V-50Hz or 60Hz/2.2kw	40-365 rpm	80KGS	1130800960mm 152KGS

Matching Solutions Recommendation for Materials & Mill Balls roll mill jars，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Lab Jar Mill

Available Roll Mill Jars & Specifications

Description of Roll Mill Jars	Available Specifications
Normal ceramic roll mill jar	From 1.0L to 15L
304 Stainless steel roll mill jar	From 0.5L to 20L
Alumina ceramic (Corundum) roll mill jar	From 0.5L to 10L
Nylon roll mill jar	From 0.5L to 20L
Polyurethane roll mill jar	From 0.5L to 20L
PTFE/Teflon roll mill jar	From 0.5L to 20L
Tungsten carbide roll mill jar	From 250ml to 3L
Roll jacket (Stainless steel)	0.5L to 3L
316l Stainless steel roll mill jar	Customized

Matching Solutions Recommendation for Materials & Roll Mill Jars

Materials & Requests	Recommended Solutions
Soil materials and other materials which are not allowed with any impurity contamination	Agate mill jar
Metal or nonmetal which are not allowed with any impurity contamination	Zirconium mill jar
High hardness materials like diamond, tungsten carbide	Tungsten carbide mill jar
Strong add & alkali materials, or other materials under high temperature	PTFE mill jar
Iron ore materials or other materials with low impurity sensitivity	304 stainless steel mill jar
Pigment or materials with later processing under high temperature	Nylon mill jar
Aluminum materials like ceramic glaze	Corundum mill jar
Electronic materials like lithium battery	Polyurethane mill jar

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Lab Jar Mill

Available Mill Balls & Specifications

Descriptions	Available Specifications (Diameter Size)
304 Stainless steel mill balls	From 1mm to 30mm
316l Stainless steel mill balls	From 1mm to 30mm
Alumina mill balls	From 1mm-50mm
Zirconium mill balls	From 0.1mm to 30mm
Agate mill balls	From 1mm-30mm
Tungsten carbide mill balls	From 2mm to 20mm
Carbon steel mill balls	From 1mm to 30mm
Iron core PU mill balls	From 15mm-30mm
