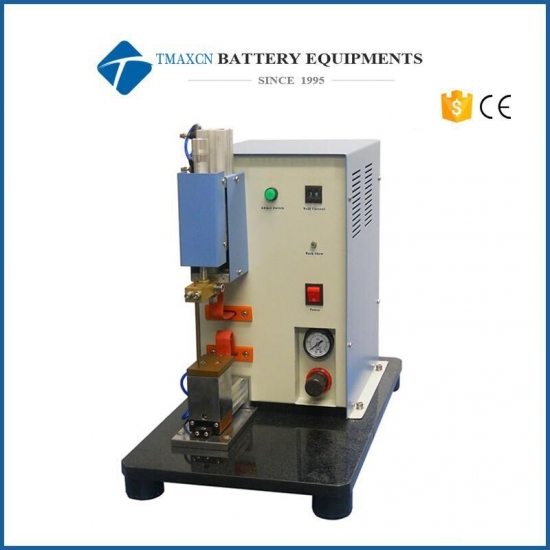

18650 Single Point Pneumatic Welder
Model Number:
TMAX-MSK-330AInput Power:
10KWDimension(L*W*H):
32cm(L) x 52cm(W) x 50cm(H)Net Weight:
48 kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

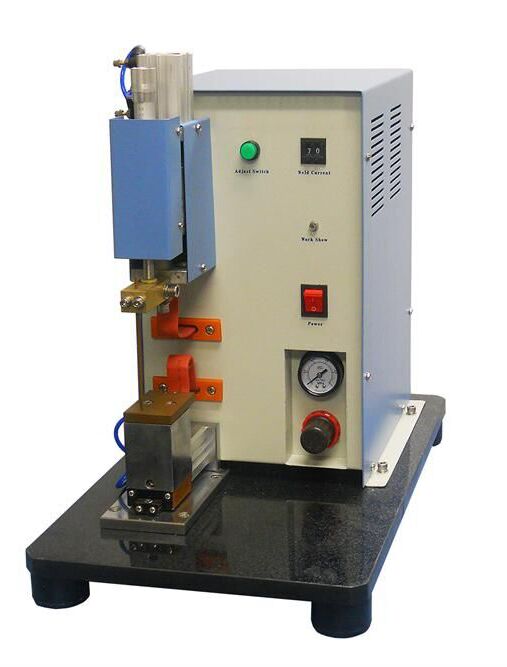

18650 Single Point Pneumatic Welder

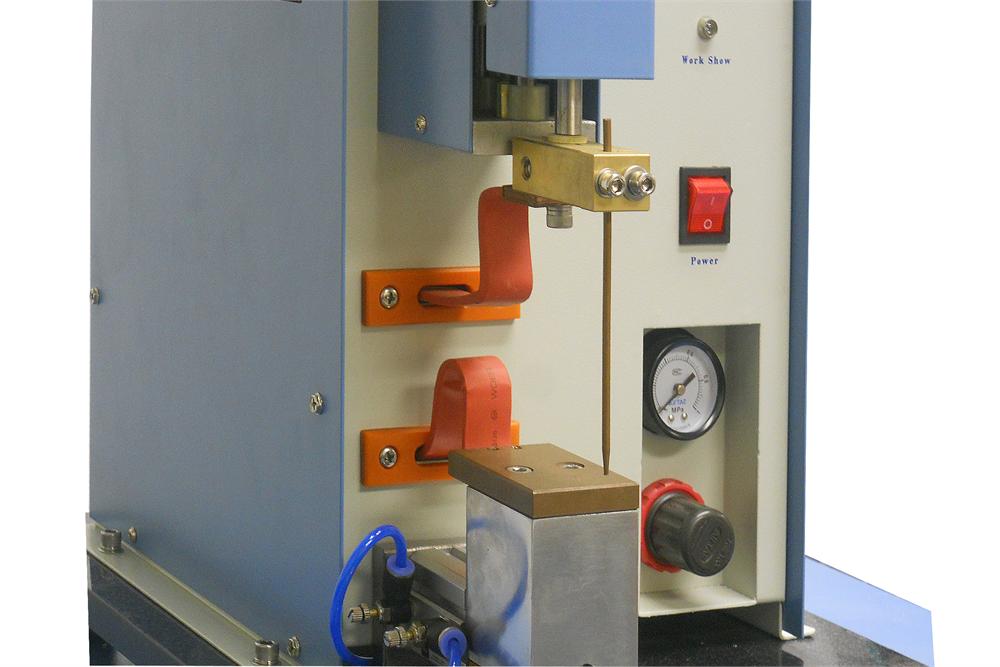

TMAX-MSK-330A Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-ion Battery Research. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the microcontroller, which is very easy to operate and can provide stable performance.
|
Power Supply |
110-240V, Single Phase 50/60Hz |
|
Max. Power |
10KW |
|
Air Pressure Range |
0.1 - 0.8 Mpa ( air compressor is required, please order at related product below ) |
|
Welding Current |
0-99A |
|
Welding Thickness |
0.03 - 0.25mm |
|
Operation Temperature |
-20 - 40℃ |
|
Controller |
Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding |
|
Pressure |
The pressure applied on the welding needle can be adjusted independently and easy to operate |
|
Design |
|
|
Weight |
48 kg (100 lbs) |
|
Product Dimensions |
32cm(L) x 52cm(W) x 50cm(H) |
|
Warranty |
Two years limited with lifetime support |
