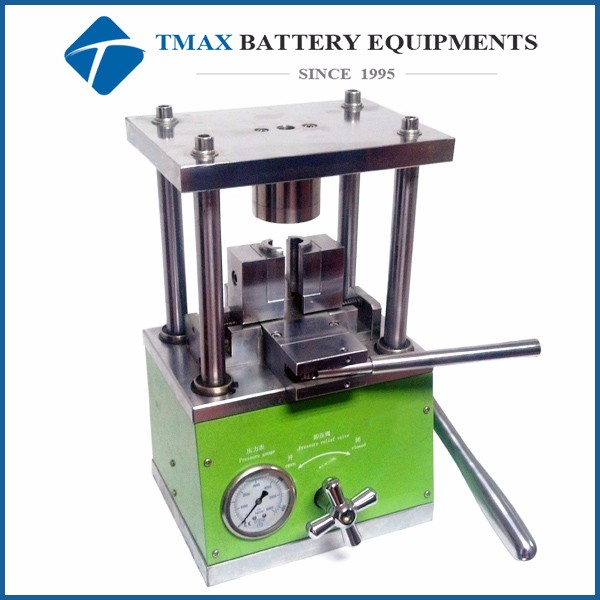

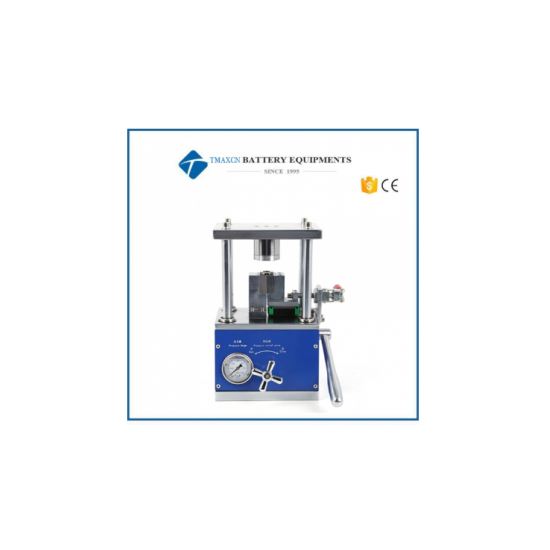

18650 Cylindrical Cell Hydraulic Crimper Crimping Machine
Model Number:
TMAX-CF650Type:
Hydraulic CrimperDimension(L*W*H):
350L x 200 W x 350H mmNet Weight:
40 kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
18650 Cylindrical Cell Hydraulic Crimper Crimping Machine

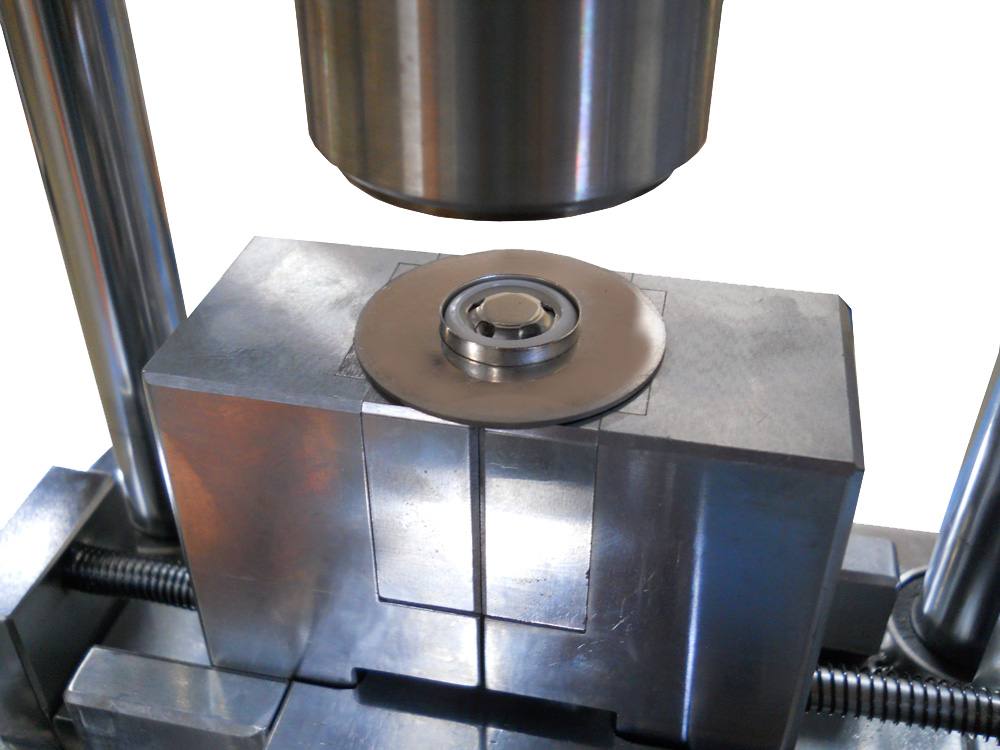

TMAX-18650Crimper is a compact hydraulic crimping machine for sealing all types of cylinder cases in batter lab. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 3-5 minutes.
SPECIFICATIONS:
|
Driving Force |
Manual hydraulic pressing up to 8T |
|
Pressure Gauge |
0-3500 psi (0-250 kg/cm^2) |
|
Body |
304 Stainless Steel |
|
Crimping Die |
Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA |
|
Compliance |
CE certified |
|
Warranty |
Two years limited with lifetime support |
|
Product Dimensions |
350L x 200 W x 350H mm |
|
Application Notes |
Customized die for other cylindrical cell types is available upon request Each type of cylinder cell can only be sealed specifically by the certain model of this equipment. |
|
Net Weight |
40kg |
