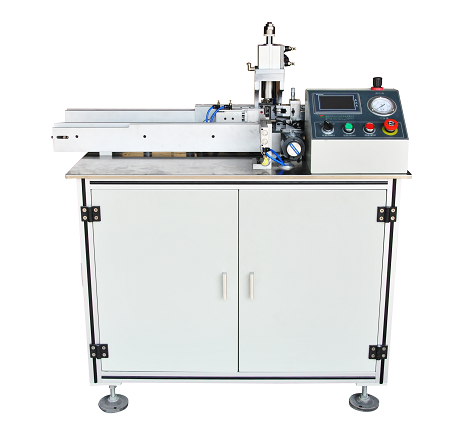

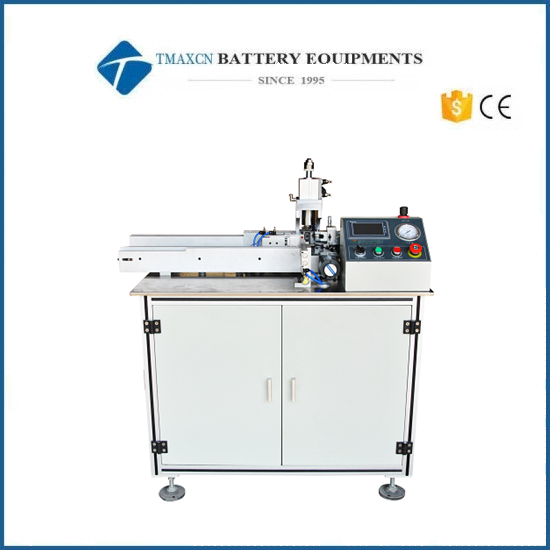

18650 Automatic Vertical Cylindrical Cell Grooving Machine
Model Number:
TMAX-LSGC-18ADimension(L*W*H):
L1100*W700*H1250mmNet Weight:
175kgCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
18650 Automatic Vertical Cylindrical Cell Grooving Machine
1. Equipment Description

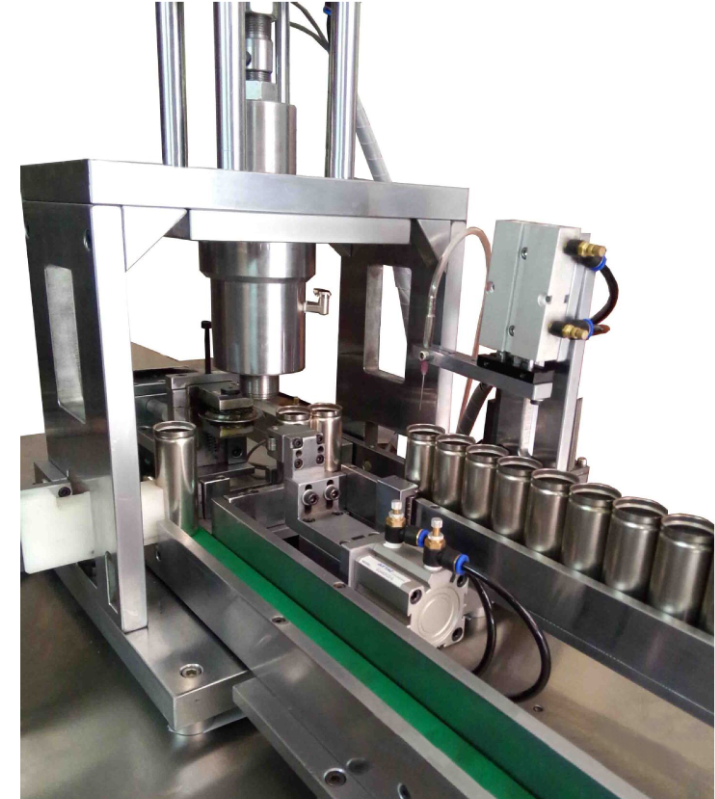

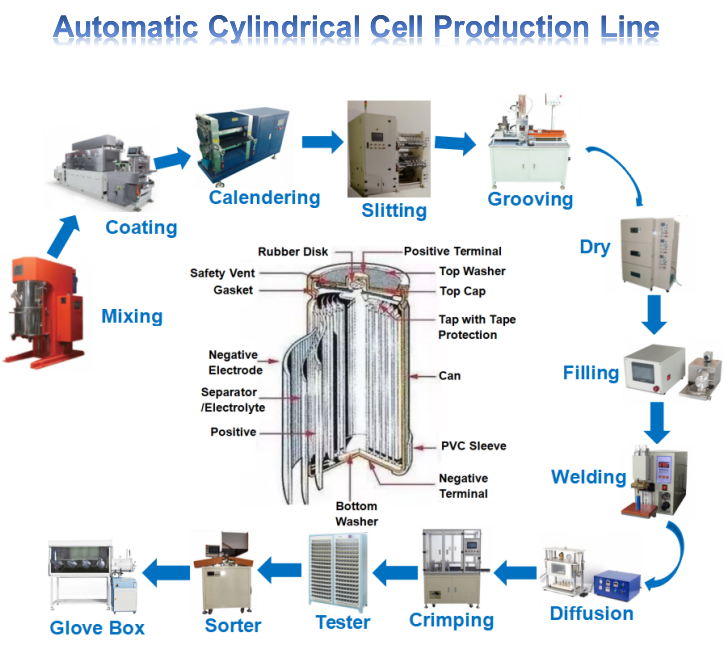

This equipment can be used for the grooving process of rechargeable Ni-MH (Nickel-Metal Hydride), Ni-Cd (Nickel-Cadmium), and cylindrical lithium-ion batteries. The grooving machine controls the coordination of various cylinders through the PLC, intermediate relays, and time-delay relays. The motor drives the main body to rotate at high speed, automatically grooving the cylindrical steel shell containing the battery cell uniformly.
2. Specification
|
Specification |
Value |
|
Applicable Steel Shell Model |
18650 |
|
Rated Voltage |
380V, 50Hz |
|
Rated Power |
0.75KW |
|
Working Air Pressure |
0.5-0.6MPa |
|
Weight |
175Kg |
|
Loading/Unloading Height |
About 900MM |
|
Overall Dimensions (LWH) |
L1100W700H1250mm |
|
Grooving Cutter Thickness Error |
±0.01mm |
|
Cutter Edge Sharpness |
Greater than 0.4 (Micrometer measurement) |
|
Grooving Mold Head Precision Error |
±0.01mm (Micrometer measurement) |
|
Grooving Depth |
±0.02mm (Internal Micrometer measurement) |
|
Grooving Mold Head Concentricity |
±0.01mm (Dial Indicator measurement) |
|
Concentricity between Grooving Mold Head and Tailstock |
±0.02mm (Dial Indicator measurement) |
3. Process accuracy
|
Dimension/Position Name |
Tolerance (mm) |
|
Groove Concentricity |
±0.03mm |
|
Grooving Inner Diameter Error |
±0.03mm |
|
Grooving Height Error |
±0.03mm |
|
Grooving Edge Height Error |
±0.03mm |
|
Post-grooving Steel Shell Expansion, Ovality |
Expansion ≤0.08 |
|
Plating Scratches, Delamination, and Other Defects |
None |
