1800°C 7x6x6" Muffle Furnace w/ Kanthal (Sweden) Heating Element
Model Number:
TMAX-1800MuffleCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
1800°C 7x6x6" Muffle Furnace w/ Kanthal (Sweden) Heating Element

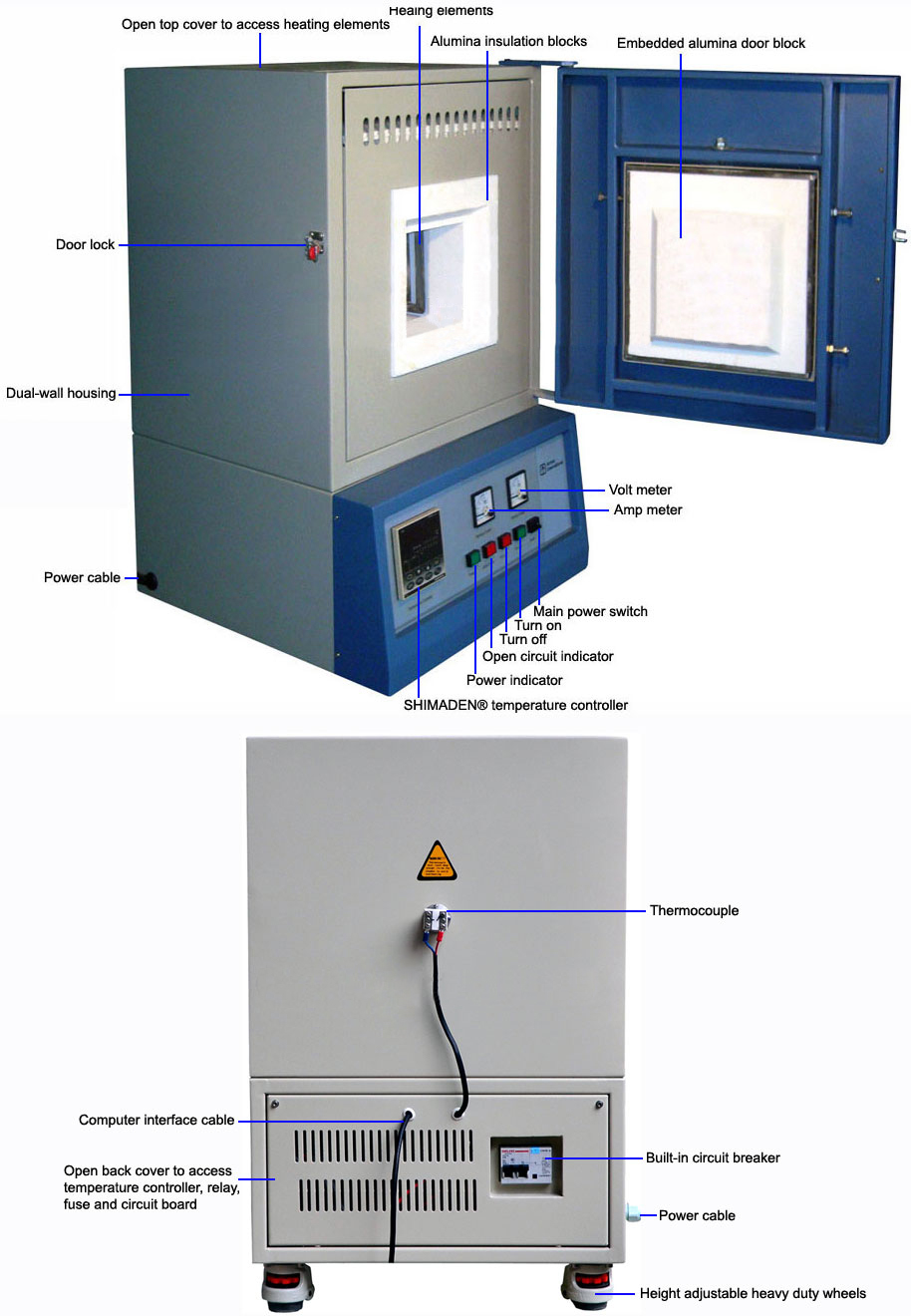

TMAX-1800Muffle series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1900 alumina fiber insulation and the famous Kanthal (Sweden) molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is
controlled by Shimaden (Japan) 40-segment digital controller with built-in
RS485 digital communications port and USB adaptor, allowing the user to connect
to a PC for remote control and monitoring of the furnace. You can also save or
export test results.
Features
· Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
· Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
· Built-in computer interface.
· Long life type B thermocouple.
· CE compliant
Safety
· Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
· Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Specifications
|
Chamber vs usable size (DxWxH) |
7 x 6 x 6" (0.15 cubic foot) / 5 x 5 x 5.5" |
|
Max. working temperature |
1800°C (3272°F) for less than 5 hours |
|
Refractory lining |
Mitsubishi (Japan) high quality grade 1900 fiber alumina |
|
Heating element |
Kanthal (Sweden) grade 1900 Molybdenum Silicide (MoSi2), 6 installed |
|
Thermocouple type |
B or PtRh40-PtRh20 (optional) |
|
Min. working temperature |
300°C (572°F) |
|
Max. constant working temperature |
1700°C (3092°F) or 1750°C with PtRh40-PtRh20 (optional) |
|
Temperature controller |
Shimaden fp93 (Japan) with 4
programs and |
|
Max heating / cooling rate |
1200°C and below: <30°C/min, 1200°C+: < 15°C/min |
|
Temperature accuracy |
+/- 1°C |
|
Input |
208-240v AC, 50/60Hz, single phase |
|
Maximum output |
4.5 kW |
|
Unit/shipping dimensions (WxDxH) |
24 x 22 x 34" / 30 x 29 x 42" |
|
Shipping weight |
300 Lb |
|
CE compliance |
Yes |
Standard package
|
Part description
|
Quantity
|
Part image
|
|
TMAX-1800Muffle furnace |
1 pc |
|
|
Type K thermocouple |
1 pc |
 |
|
Stainless steel tongs |
1 pc |
|
|
Alumina thermal cushion block |
1 pc |
|
|
Thermal gloves |
1 pair |
|
|
Spare fuse |
2 pcs |
|
|
USB/RS485 computer interface kit |
1 set |
|
|
Furnace operation manual |
1 pc |
|
