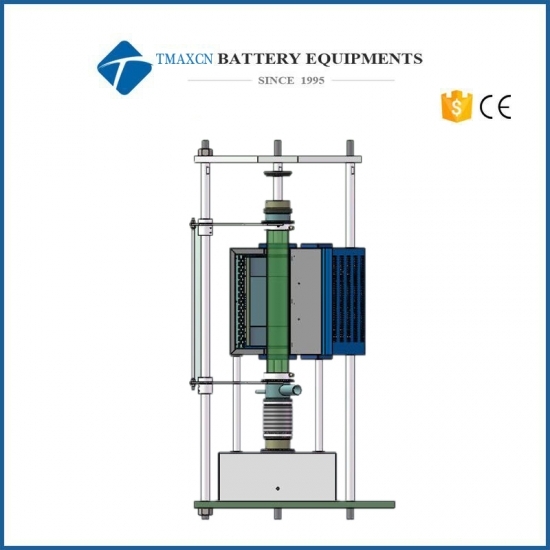

1700°C Vacuum Heat Press Furnace with Resistance Wire Canthal A1 (Sweden)

Model

TMAX-PressFurnace2

Power

5  KW

Chamber size(mm)

Dia60 (OD) X700

boundary dimension

900X700X1600 （WXDXH）

supply voltage

220V

Phase

Single

Heating element

 Sweden Kanthal  A1 resistance wire

 Sweden resistance wire    VS     Chinese resistance wire

Temp Control Mode

Adopt the yu electric program control thermometer

1.The 30 program control temperature can only adjust PID.

2.over temperature protection is broken accidentally protection with a temperature or broken accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the limited protection electric furnace).

3. With 485 communication interface (standard and standard for choosing software)

4. It has the function of power failure protection, that is, when the power is off, the program will not start up from the beginning temperature, but the furnace will start to rise when the power is off.

The instrument has the function of temperature self-setting

FP93 temperature controller（SHIMADEN，Japan）（optional）

1. The program control temperature can be divided into 4, 2 and 1 groups. If it is divided into 4 groups, each program is 10 paragraphs.

2. The PID control of group 6, low, medium and high temperature can be used with a set of PID, so that each temperature segment can be controlled accurately.

3. over temperature protection is broken accidentally protection with a temperature or broken accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the limited protection electric furnace).

4. The meter has the degree of Fahrenheit (F) and Celsius (C)

5. With a 485 communication interface (with the selection of software)

6. Automatic stop function

7. You can store multiple sets of programs and use them in any way you want.

8. It has the function of power failure protection, that is, when the power is off, the program does not start up from the beginning temperature, but the furnace temperature starts to rise from the power failure.

9. The instrument has output power, the number of segments and the execution time of the program, the display of temperature, temperature and cooling status of the program.

10. The meter has the function of skipping (that is, the meter can jump this step and carry out the next step directly.

11. The instrument has the function of temperature self-tuning.

Chamber materiels

 Alumina polycrystalline fiber (more than 95% aluminum oxide content) imported from Japan

Imported                   VS                      Chinese

control precision

 +/- 1 ℃

trigger

Phase-shifted trigger

electric appliance

 Zhejiang zhengtai

silicon controlled

106/16E SEMIKRON, Germany

maximum temperature

1700 ℃

rated temperature

1650 ℃

heating rate

≤20 ℃/ Min （Modify as required）

Recommended heating rate

≤10  ℃/ Min

Thermocouple Type

K

heating-length

200mm

SHIMADEN FP93 controller and software

COM and USB switcher        Dataline of computer and furnace

vacuum system

  TW-1.5A                        2XZ-2                           VS-0.1            VS   high vacuum system

Generally, the gas in the tube is made out of A rough vacuum

2. 2xz-2 vacuum pump can pump the vacuum of tube furnace tube to about 10Pa

3. The vs-0.1 vacuum system can pump out the vacuum in tube furnace tube to 0.1 Pa (with resistance vacuum gauge display)

4. VS high vacuum system (which is composed of molecules and mechanical pumps) can vacuum the tube furnace tube to 10-3 Pa.

mould

1. High temperature mould unit is made of high purity graphite and the maximum working pressure is 50MPa

2. Please carefully design the dimensions of the high temperature mold and select the correct pressure.

dwell time

0-50Min

pressure stroke

40mm

pressure stability

≤1MPa/5min

maximum pressure

5T（The pressure gauge shows 8MPa）

water-cooling（Optional）

water-cooling machine

Certification

 CE

Surrounding surface temperature

≤45℃

safety system

There are air switches and fuses on the furnace, and when the current exceeds the rated current of the air, the empty meeting automatically jumps open and effectively protects the furnace.

Switching protection system

The furnace is equipped with a travel switch. When the cover is opened, the relay will automatically cut off the main power supply and ensure the user's safety.
