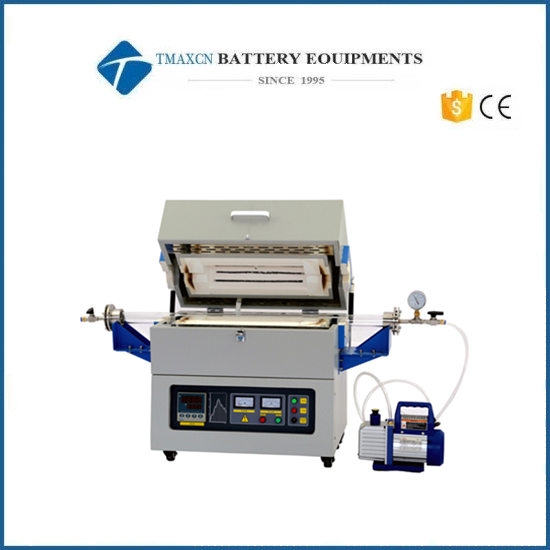

1600℃ Single-Zone Split Tube Furnace

Type

TL1600-I

TL1600-II

TL1600-III

Power

5KW

KW

6KW

Tube size （OD, mm)

Dia60 X1000

 Dia80X1000

Dia100X1000

Dimension

(mm)

1120*490*855

1120*490*855

1120*520*945

Supply voltage

220V

Phase

Single phase

Heating element

1800 silicon molybdenum rod

Temperature control

UAV  program temperature control instrument (standard)

1.50 - stage program temperature control intelligent PID adjustment.

2.With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1620 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Chamber material

1. Furnace material is made of high-quality alumina polycrystalline fiber

2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.

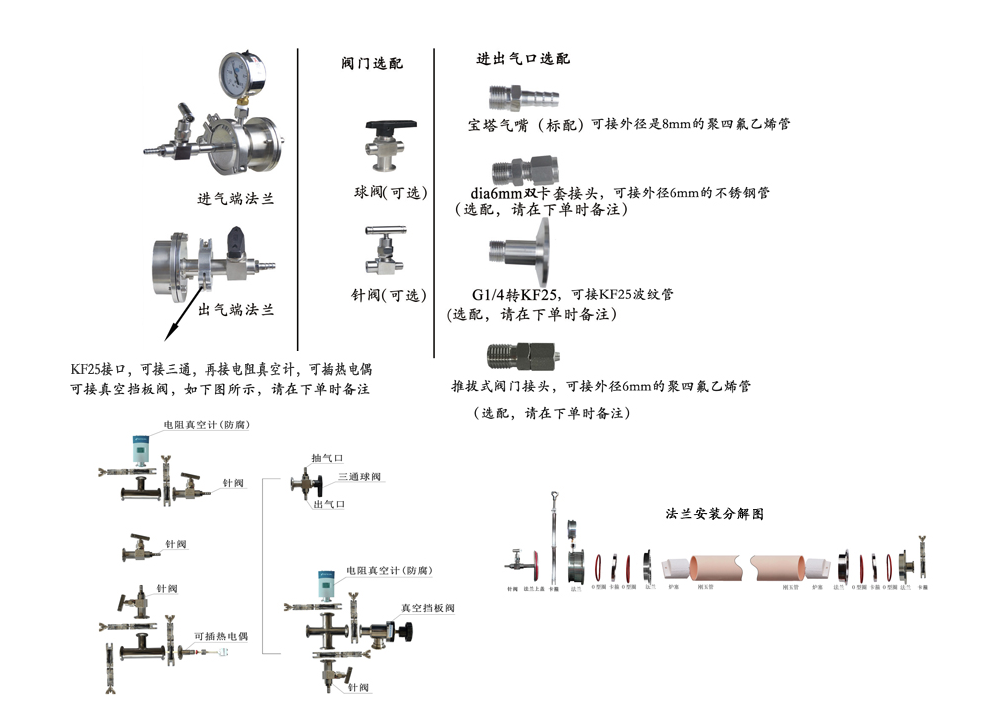

Valve and flange

Control accuracy

 +/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E SEMIKRON

Maximum temperature

 1600 ℃

Rated temperature

 1550℃

Heating rate

 ≤20 ℃/ Min (it can be modified as required)

Recommended rate of temperature rise

≤10  ℃/ Min

Thermocouple Type

B Type

Heating length

300mm

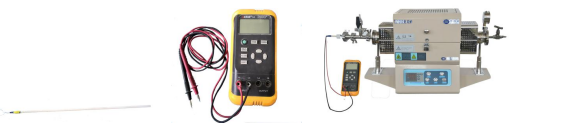

Temperature calibration (optional)

Regular temperature calibration of the tube furnace maintains the accuracy and uniformity of the furnace temperature. You can purchase a simple calibration tool from the company to assist you with this work. The complete calibration kit includes a standard thermocouple S-type, temperature calibrator.

Peripheral surface temperature

≤45℃

Open cover protection system

When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user.

Vacuum system (optional)

1) Generally, the gas in the furnace tube can be pumped out by roughly vacuumizing:TW-1.5A single-stage pump would be fine

2)  The double-stage pump 2XZ-2 vacuum pump can pump the vacuum degree of tube furnace tube to about 10Pa.

3) The VS-0.1 vacuum system can pump the vacuum degree in the tube furnace to 0.1Pa (with resistance vacuum meter display).

4) VS high vacuum system (composed of molecular and mechanical pump) can pump the vacuum degree in the tube furnace to 10-3 Pa.

5) Constant pressure pump (the system can control the pressure in the pipe within - 100.0KPa ~ 100.0KPa).

6)  British (INFICON) capacitance vacuum gauge (measuring range: 3.8x10-5 -1125 Torr, it can detect various gases, including mixed gases, with accurate measurement, good repeatability, and optional anti-corrosion type: PCG554)

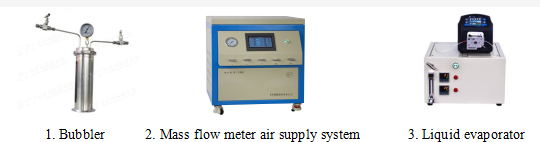

Gas supply system (optional)
