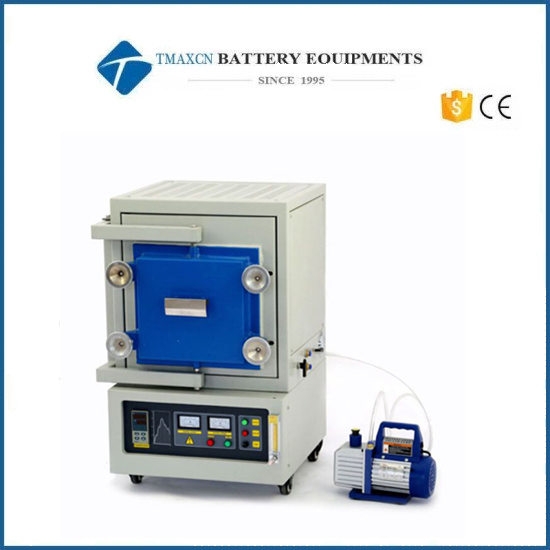

1600℃ Atmosphere Muffle Furnace

Model

GF16Q-I

GF16Q-II

GF16Q-III

GF16Q-IV

GF16Q-V

GF16Q-VI

Power

3KW

5KW

7KW

9KW

13KW

27KW

Chamber size

(DXWXH, mm)

160X150X150

200X200X200

300X200X200

300X250X250

  400X300X300

500X400X400

Dimensions (WXDXH)

550X515X905

590X555X995

590X655X985

640X655X1035

690X715X1465

834X902X1775

Voltage

220V

380V

Phase

Single phase

Single phase

Three phase

Heating element

1800 silicon molybdenum rod

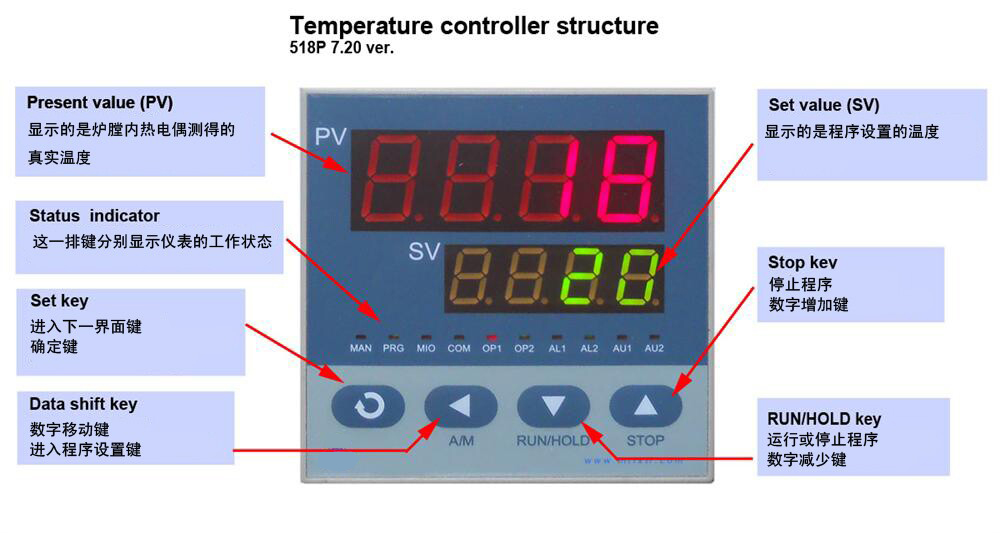

Controller

YUDIAN Controller(Standard)

1. 50-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1620 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

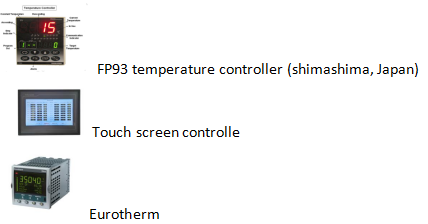

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace Material

Alumina polycrystalline fiber

Furnace materials imported from Japan can be purchased (additional payment is required when choosing imported furnace materials)

control accuracy

+/- 1 ℃

Trigger

Phase shift trigger (with soft start and current limit function)

Current limiting function: No matter how you adjust the heating time, the secondary current of our electric furnace after passing through the transformer is limited to less than 160A, which protects the equipment limitedly, no matter how you operate it, it will not burn the equipment.

Soft start function: The current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element

Electrical appliances

Zhejiang Chint

maximum temperature

1600 ℃

Rated temperature

1550 ℃

Thermocouple model

B Type

Heating rate

≤20 ℃/ Min(Can be modified as required)

Recommended heating rate

≤10℃/ Min

Thyristor

106/16E Siemens Germany

surface temperature

≤45℃

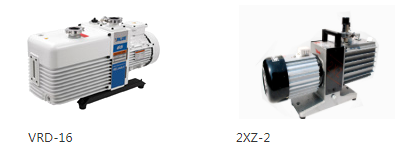

Vacuum pump(Optional)

Cover protection system

The furnace is equipped with a travel switch, and the relay will automatically cut off the main power when the furnace cover is opened, effectively ensuring the safety of users
