1500W Lithium Battery Fiber Laser Welder Welding Machine
Model Number:
TMAX-FLW1500Input Power:
1500WCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

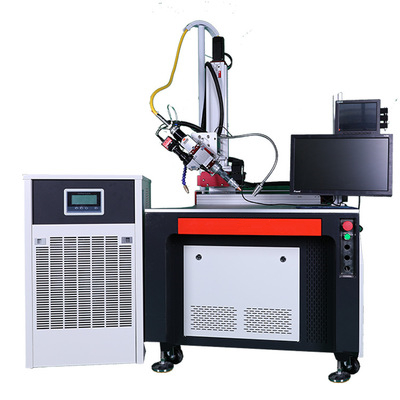

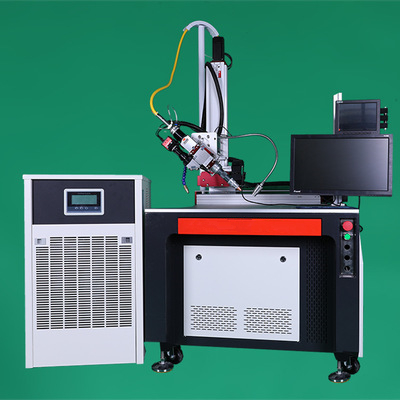

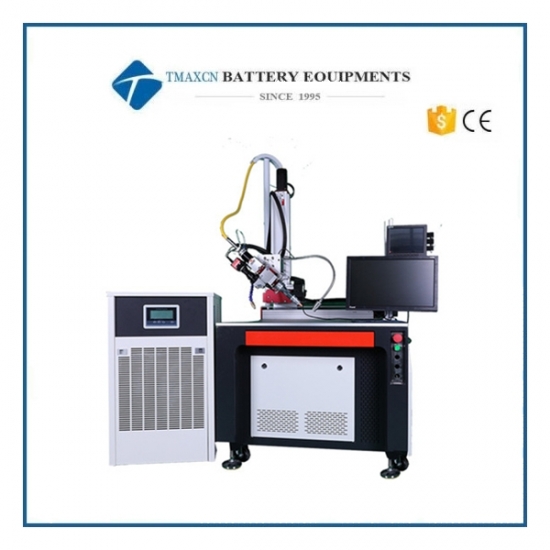

1500W Lithium Battery Fiber Laser Welder Welding Machine

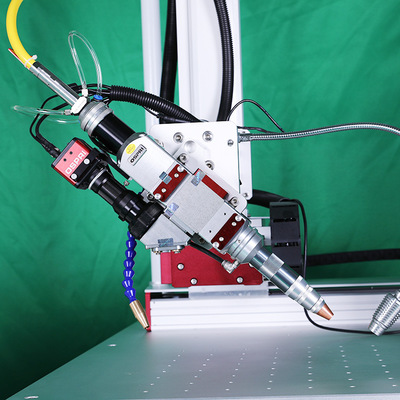

The laser adopts high-performance fiber laser with excellent optical mode, which can easily obtain very high focus optical power density and is more conducive to the realization of welding. Perfect protection device, continuous pulse output mode modulation, laser average output power 1500W.
Specifications
Rated output power (W) |
1500W |
Operating mode |
continuous |
Power adjustment range (%) |
0~100 |
Center wavelength (nm) |
1080 |
Welding thickness: carbon steel plate (235) |
0.5~5.5mm |
Welding thickness: stainless steel (304) |
0.5~5mm |
Welding thickness: galvanized sheet |
0.5~4.5mm |
Output power stability |
<3% |
Maximum modulation frequency (kHz) |
continuous |
Indication red light output power (mW) |
0.5~1 |
Beam quality (㎡) |
<1.2 |
Divergence angle (rad) |
<0.1 |
Fiber core diameter (μm) |
100 |
Output fiber length (m) |
15 |
Maximum power consumption (W) |
5600 |
Machine size (mm) |
950*600*750 |
Weight (kg) |
<260 |
cooling method |
Water cooling |
Electricity running cost (8 hours / day) |
56kwh |
Consumables running cost (8 hours / day) |
0 |
