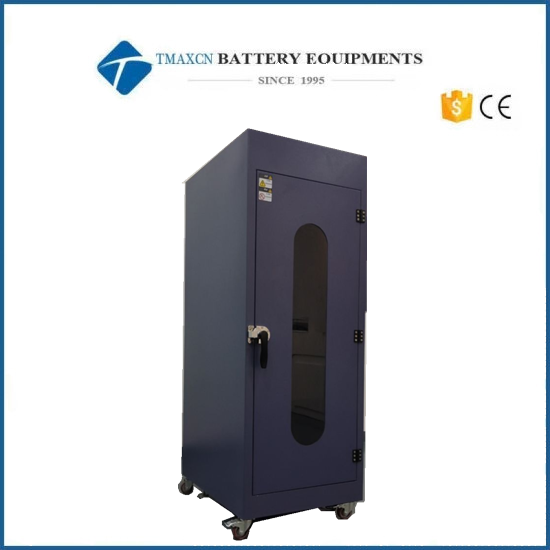

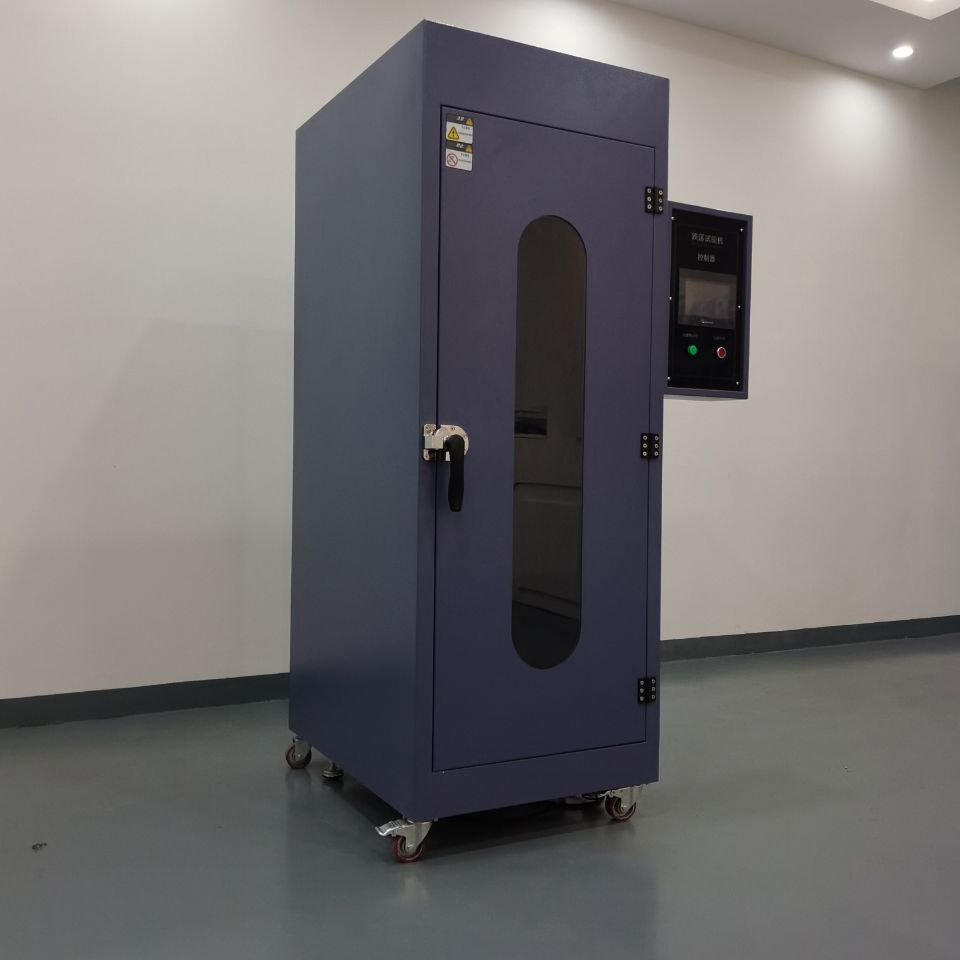

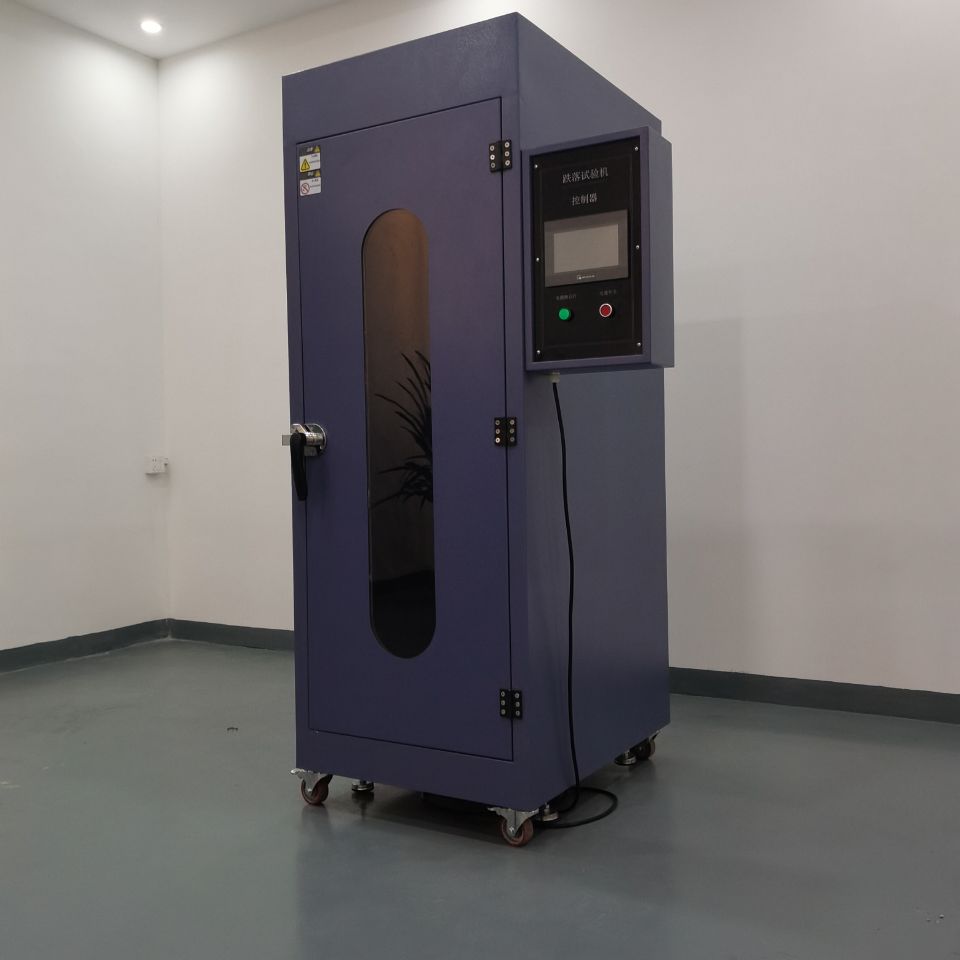

1500mm Battery Drop Tester Machine For Free Fall Testing
Model Number:
TMAX-6001CCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
1500mm Battery Drop Tester Machine For Free Fall Testing
Introduction
This machine is suitable for mobile phones (cell phones), lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3, and other small consumer electronic products and parts for free fall test.
According to standard
GB31241-2014 UN38.3 UL 1642, UL 2054; QC-T744-2006; QC-T743-2006; GB-18287-2000; SJ-11169-1998; YD-1268-2003; SJ/T 11170-1998; GB 8897.4-2002 and other test standards.
Features
This machine adopts a pneumatic structure, the test sample is placed in a special fixture (adjustable stroke) and clamped firmly, press the drop button, the cylinder is released, the test sample will be tested in a free fall, the drop height can be adjusted up and down, and the height is attached The ruler can know the drop height of the test sample, and a variety of drop floors are available for selection, which can meet different test standards.
Specification
|
Model |
6001C |
|
Drop height |
300-1500 mm, adjustable |
|
Test method |
Face, edge, corner drop in all directions |
|
Test load |
0～3kg |
|
Acceptable max. sample size |
W200*D200*H200 mm |
|
Falling floor medium |
A3 steel plate (acrylic plate, marble plate, wood board for choice) |
|
Drop panel size |
W600*D700*H10 mm (solid steel plate) |
|
Machine weight |
About 250kg |
|
Machine size |
W700*D900*H1800 mm |
|
Motor power |
0.75KW |
|
Drop method |
Pneumatic drop |
|
Lifting method |
Electric lifting |
|
Power supply |
220V 50Hz |
|
Safety device |
Fully enclosed explosion-proof device |
|
Air pressure |
＜1mpa |
|
Control display mode |
PLC touch screen |
