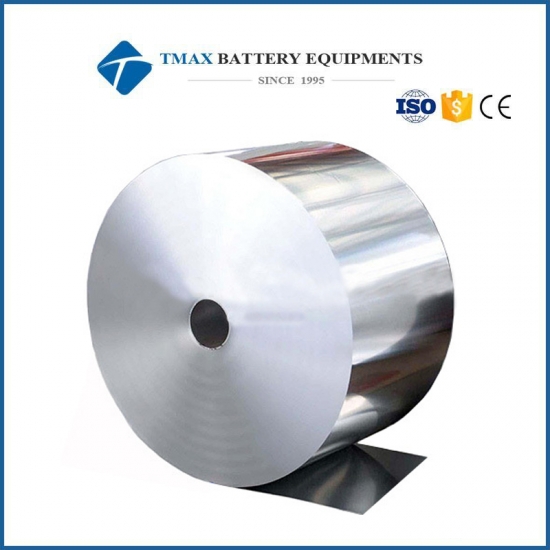

14um Battery Grade Aluminum Foil For Lithium Battery
Model Number:
TMAX-Aluminumfoil2Dimension(L*W*H):
6~20um Thickness can be customizedCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

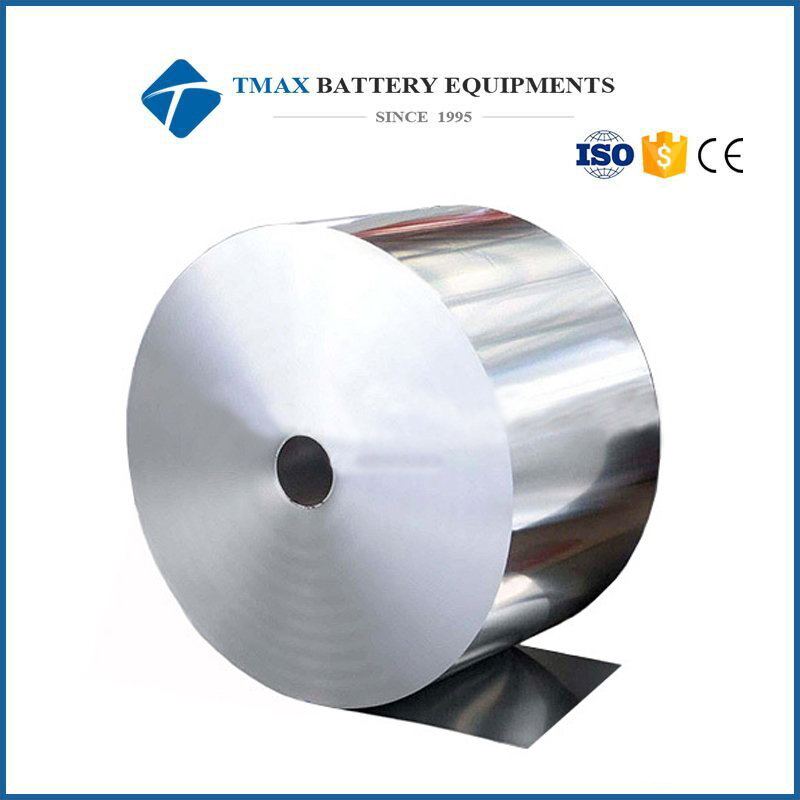

14um Battery Grade Aluminum Foil For Lithium Battery
Width:300mm Lenght: 170m Thicness:14um
6~20um Thickness can be customized
|
Battery Grade Aluminum Foil |
|
|
Item |
Data |
|
Width |
300mm |
|
Thickness |
14±1um |
|
Areal density |
30~34g/m2 |
|
With transverse surface density uniformity |
≤0.003 g/ 40×40 mm |
|
The same volume of vertical surface density uniformity |
≤0.03 g/ 400×40 mm |
|
High temperature oxidation resistance (200°C*30min) |
No oxidation |
|
Connect no |
<2 |
|
Chemistry content(Al) |
>99.45% |
|
Extensibility |
<0.5% |
|
Normal temperature Tensile strength kgf /mm2 |
>141 |
|
After 1200C baking 1h, Tensile strength kgf/mm2 |
>122 |
