12T 500℃ Lab Compact Manual Double Plate Lamination Hot Press Machine
Model Number:
TMAX-RYJ-600EGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

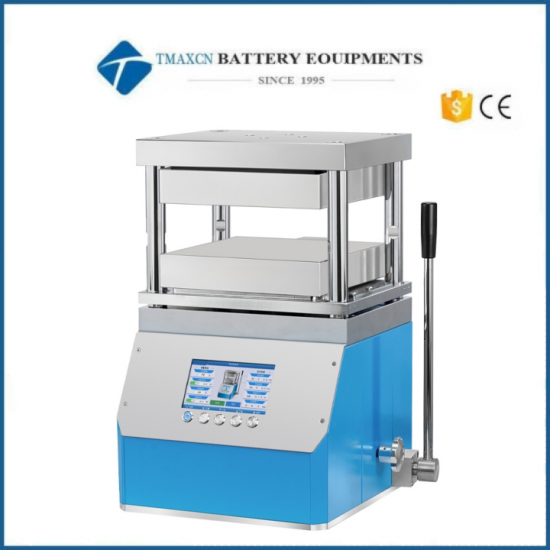

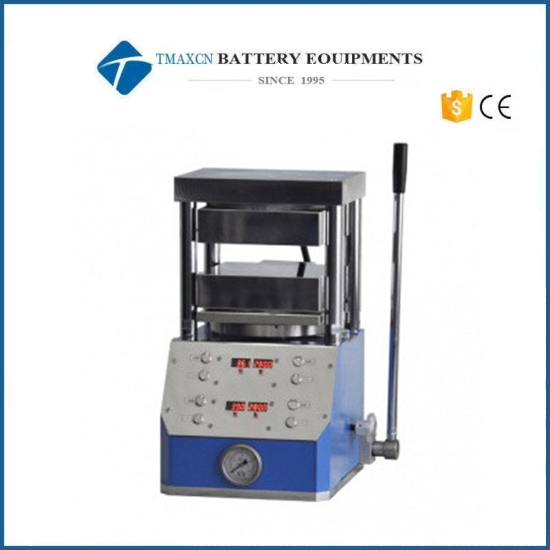

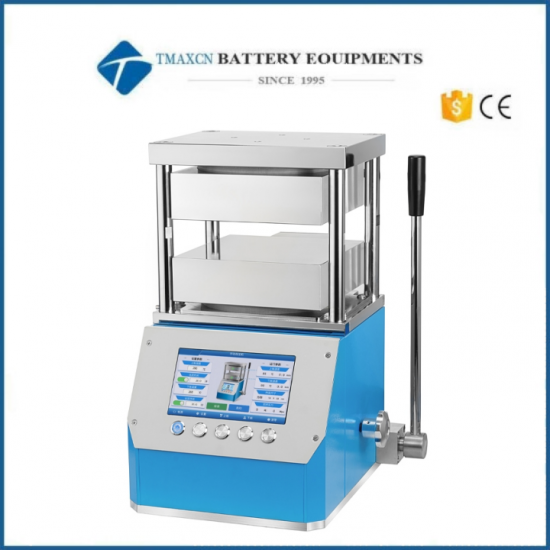

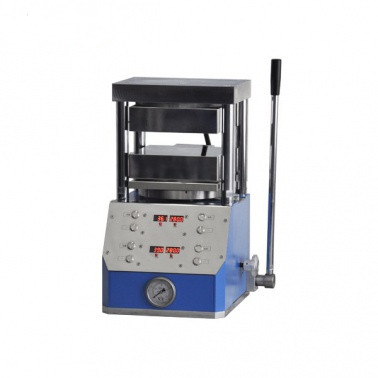

12T 500℃ Lab Compact Manual Double Plate Lamination Hot Press Machine
RYJ-600E series heating tablet press is a brand-new integrated, small tonnage, widened, double-plate hot tablet press developed by our company in accordance with market demand. This manual hot press is suitable for users who have strict pressure control accuracy and need wide-size mold compression test. It can perform high-temperature compression test on some solid samples such as powder, rubber, plastic film, and can also be used as a small vulcanizer It has been widely used in scientific research, teaching, persistence, pharmacy, catalysis, chemical industry and other industries, and can replace similar imported products
Technical parameters
|
Model |
RYJ-600E1 |
RYJ-600E2 |
RYJ-600EG1 |
RYJ-600EG2 |
|
Pressure range |
0-12T（0-30MPa） |
|||
|
Piston diameter |
Ф70mm chrome-plated cylinder |
|||
|
Pressure gauge type |
Pointer type, 0-40Mpa, double scale display of pressure and pressure |
|||
|
Pressure method |
Manual Pressure |
|||
|
Thermostat type |
PID temperature controller |
|||
|
Temperature control range of thermostat |
RT --600.0℃/0.1℃ |
|||
|
Mold heating type |
Heating of upper and lower two plates (double plate/polished surface) |
|||
|
Mold heating temperature |
RT-300.0℃ |
RT-500.0℃ |
||
|
Mold cooling method |
Water cooling |
Water cooling |
||
|
Insulation method |
Imported insulation board |
Imported heat insulation board + stainless steel water-cooled heat insulation board |
||
|
Heating mold size |
80×180mm |
200×200mm |
180×180mm |
200×200mm |
|
Power |
220V/1800W |
220V/2500W |
||
|
Dimension |
280×320×520mm |
|||
|
Weight |
95kg |
|||
|
standard configuration |
1 hot press (water cooler optional) |
|||
