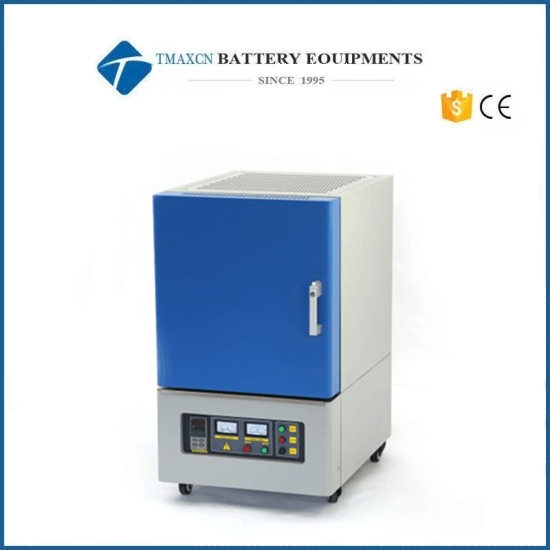

1200°C Muffle Furnace w/ Kanthal (Sweden) Heating Elements
Model Number:
TMAX-1200MuffleCompliance:
CE compliantWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
1200°C Muffle Furnace w/ Kanthal (Sweden) Heating Elementsr

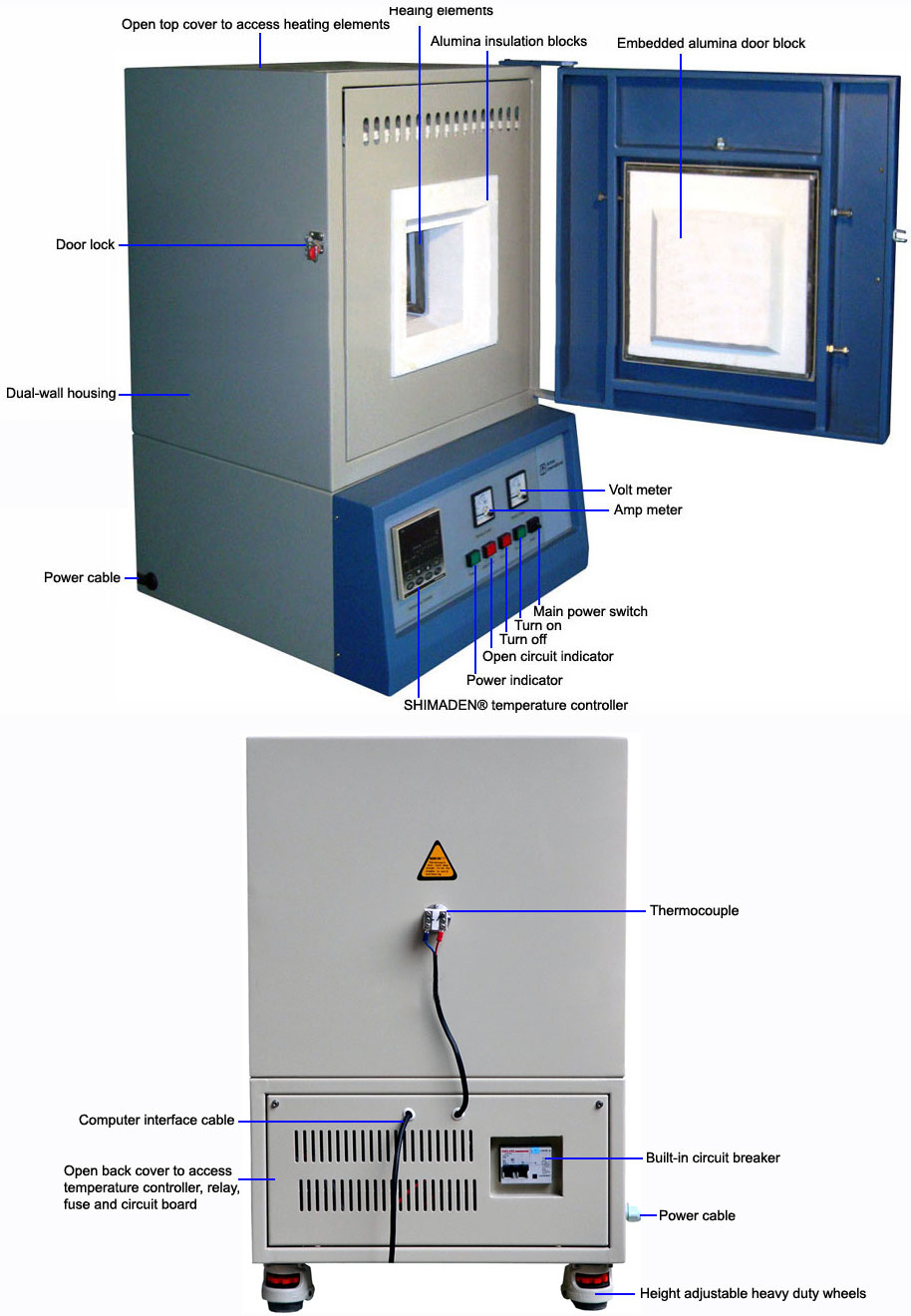

TMAX-1200Muffle series muffle furnaces feature
the famous Kanthal(Sweden)
spiral wire coils embedded in Mitsubishi (Japan)
high quality alumina fiber insulation. A double walled steel internal housing
helps minimize heat loss to exterior surface.
Furnace operation is controlled by Shimaden (Japan)
40-segment digital controller with built-in RS485 digital communications port
and USB adaptor, allowing the user to connect to a PC for remote control and
monitoring of the furnace. You can also save or export test results.
Features
· Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
· Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
· Built-in computer interface.
· Long life type K thermocouple.
· CE compliant
Safety
· Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
· Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Specifications
|
Electrical requirements |
208-240VAC, 50/60Hz, single phase |
|
Min. working temperature |
Ambient |
|
Max. working temperature |
1200°C (2192°F) |
|
Max. constant working temperature |
1100°C (2012°F) |
|
Refractory lining |
Mitsubishi (Japan) high quality 1500 grade fiber alumina |
|
Heating element type |
Kanthal (Sweden) resistance coil wire |
|
Thermocouple type |
K |
|
Temperature controller |
Shimaden fp93
(Japan) with 4 programs and 40 segments |
|
Max heating / cooling rate |
< 15°C (59°F) / min |
|
Temperature accuracy |
+/- 1°C |
|
CE compliance |
Yes |
Size comparison
|
Chamber size (DxWxH) |
12x8x8" |
16x12x12" |
|
Usable chamber space (DxWxH) |
10x7x7" |
14x11x11" |
|
Chamber capacity (cu ft) |
0.44 |
1.33 |
|
Maximum output |
4 kW |
9 kW |
|
Furnace dimensions (LxWxH) |
22x25x34" |
26x29x39" |
|
Shipping dimensions (LxWxH) |
28x28x36" |
34x37x46" |
|
Unit/shipping weight (Lb) |
530/620 |
600/700 |
Standard package
|
Part description
|
Quantity
|
Part image
|
|
TMAX-1200Muffle muffle furnace |
1 pc |
|
|
Type K thermocouple |
1 pc |
 |
|
Stainless steel tongs |
1 pc |
|
|
Alumina thermal cushion block |
1 pc |
|
|
Thermal gloves |
1 pair |
|
|
Spare fuse |
2 pcs |
|
|
USB/RS485 computer interface kit |
1 set |
|
|
Furnace operation manual |
1 pc |
|
