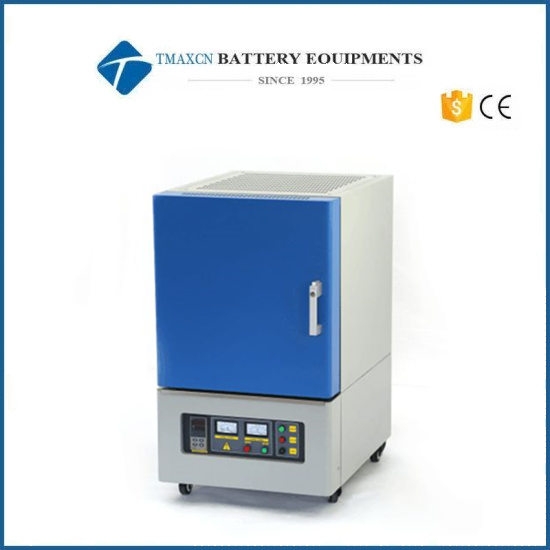

1100C 7.2 - 36 L Small Muffle Furnace With Programmable Controller & Venting Port

Model

KFB1100-I

KFB1100-II

KFB1100-III

KFB1100-IV

Chamber Size

300x200x120 mm, Capacity: 7.2 liter

300x200x200 mm, Capacity: 12 liter

300x250x250 mm, Capacity: 19 liter

400x300x300 mm, Capacity: 36 liter

Power

2.5 KW

3.5KW

6KW

10KW

Furnace Construction

High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands.

Voltage

220V or AC 380V 50/60 Hz

Operating Temperature

1.      1000°C max continuously

2.       1100°C max for 1 hour

Max. Heating Rate

30 °C /min

Temperature Controller

1.      PID automatic control and auto-tune function.

2.      40 programmable segments for precise control.

3.      Built in protection for the over-heating and broken thermocouple.

4.      Large digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type

Net Weight

8~ 30Kg

Warranty

Two years limited warranty with lifetime support

Compliance

 CE Certified

Application Notes

With the small footprint, low weight and low power requirement, it can be easily accommodated in a glove box and heat treat samples under protective gas.

Warnings

1.      Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety.

2.       Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
