1100°C 11x9x9" St. St. Interior Controlled Lab Atmosphere Furnace

Model Number:
TMAX-1100CAtmosphere
Compliance:
CE compliant
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

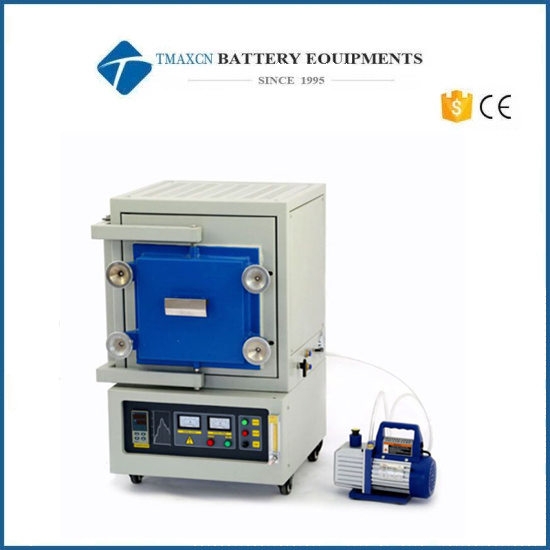

1100°C 11x9x9" St. St. Interior Controlled Lab Atmosphere Furnace

TMAX-1100CAtmosphere series controlled atmosphere furnaces feature a chamber with polished stainless steel interior and the famous Kanthal(Sweden) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces are CE compliant.

The benefits of an controlled atmosphere furnace

An atmosphere furnace provides the perfect environment for various procedures in many laboratories, providing the controlled temperature and atmosphere specific projects require. The controlled atmosphere is desired to complete tasks that require exact temperatures with no room for error. This is the best way to ensure the successful outcome of your project because it is sealed tightly to ensure the proper environment.

Gases

One of the main components of the atmosphere furnace is the correct mixture of gases. The precise measurement of each gas is essential to the success of your project. You can use a separate chamber to mix the gases, which are then pumped into the furnace chamber where the work will be completed when they are done mixing. It is essential that the separate chamber that holds the gases does not receive any outside air because it could throw off the gas mixture and render your project useless.

Temperature

Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money. Across International furnaces come with built-in 28-segment PID digital temperature controller for accurate monitoring and consistency.

Features

· Polished stainless steel interior finish for ultra clean operation and easy maintenance

· Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets can be ignited to burn off gas.

· Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket.

· Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use.

· Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

· Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

· Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

· Built-in computer interface.

· Long life type K thermocouple.

Safety

· Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

· Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

* Ultimate vacuum level for GCF furnaces is around 100 Pa with all flange connections, and 1000 Pa with hose barb connections. Please keep in mind that our GCF atmosphere furnaces are NOT designed to be vacuum furnaces, the vacuuming part is mainly for users to pre-vac the chamber, before putting in inert or other protective gases.

Atmosphere Muffle Furnace

Specifications

Electrical requirements	208-240V, 50/60Hz, single phase
Heating element type	Kanthal (Sweden) resistance coil wire
Min/max/constant temperature	Ambient/1100°C/1000°C
Temperature controller	Shimaden fp93 (Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments).
Maximum heating rate	15°C / min
Furnace chamber material	Grade 310S stainless steel
Thermocouple type	K
Gas inlet/outlet	1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
Temperature controller precision	+/- 1°C
Working environments	Air, N2, Ar, NO2, CO, CO2, He, Ne, etc. Hydrogen, up to 5%
CE compliance	Yes

Size comparison

Chamber size (DxWxH)	11x7x4"	11x9x9"	15x11x11"
Chamber capacity (cu ft)	0.18	0.52	1.05
Maximum output	2.5 kW 12 amp	5 kW 23 amp	9 kW 41 amp
Furnace dimensions (LxWxH)	23x19x24"	23x21x30"	30x23x33"
Shipping dimensions (LxWxH)	40x30x40"	40x30x40"	41x33x41"
Net weight (Lb)	250	300	350
Shipping weight (Lb)	350	400	465

Standard Package

Part description	Quantity	Part image
controlled atmosphere furnace	1 pc
Type K thermocouple	1 pc
Flow meter	1 pc
Alumina cushion block	1 pc
Furnace door block	1 pc
Stainless steel tongs	1 pc
Thermal gloves	1 pair
Spare fuse	2 pcs
USB/RS485 computer interface kit	1 set
Water pump	1 pc
Furnace operation manual	1 pc
