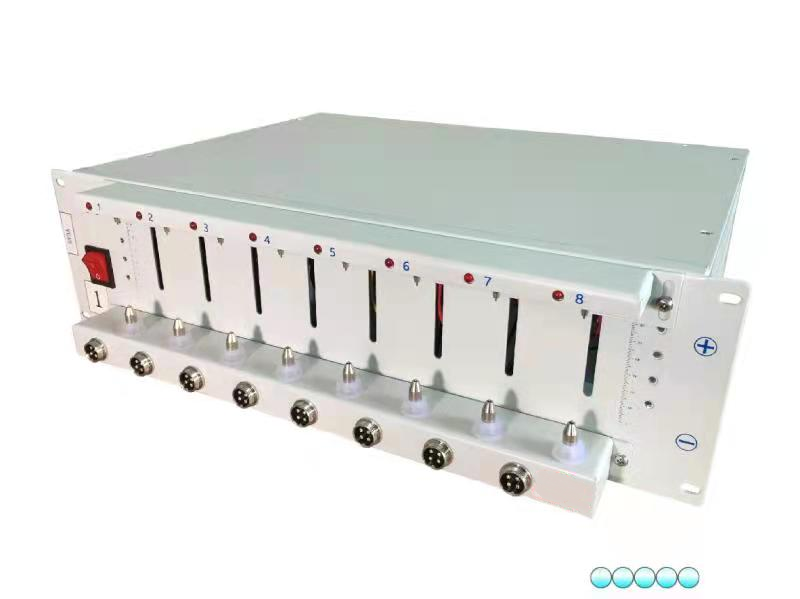

10V6A 8 Channels Lithium Ion Battery Charge and Discharge Analyzer Machine

Input Power

AC 220V ±10% / 50Hz

resolution

AD：16bit；DA：16bit

Input Resistance

≥1MΩ

Input Power

729W

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

Charge：0.05V~10V；Discharge：2.0V~10V

Accuracy

± 0.1% of  FS

Stability

± 0.1% of  FS

Current

Per Channel Current Range

Range：0.03A~6A

Accuracy

± 0.1% of  FS

Stability

± 0.1% of  FS

Power

Per Channel Output Power

60W

Stability

± 0.2% of  FS

Time

Current Response Time(10%FS~90%FS)

20ms

Step Time Range

1s≤Single Step Time Range≤365*24 h，

Time Form Support 00：00：00(h、min、s)

Data Recording

Record Condition

Min. Record  Time：100ms

Min. Record  Voltage：20mV

Min. Record  Current：Range：12mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

CC-CV Charge 、CP-Charge

End Condition

Voltage、Current、Relative Time、Capacity、-△V

Discharge

Discharge Mode

Constant Current Discharge  CP-D CR-D

End Condition

Current、Current、Relative Time、Capacity

Pulse Model

Charge

Constant Current、Constant Power

Discharge

Constant Current、Constant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

Voltage、 Relative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function，Max Support 3 Layers

Protection

Software Protection

l Power-down Data Protection

l Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCEL、TXT

Communication Interface

Ethernet Port

Main Channels

8

Dimensions

3U，W*D*H：480*730*130（mm）per unit

Working Temperature Range

0℃~40℃

Storage Temperature Range

-10℃~45℃

Working Environment Relative Humidity Range

30% ~ 80% RH

Storage Environment Relative Humidity Range

30% ~ 90% RH
