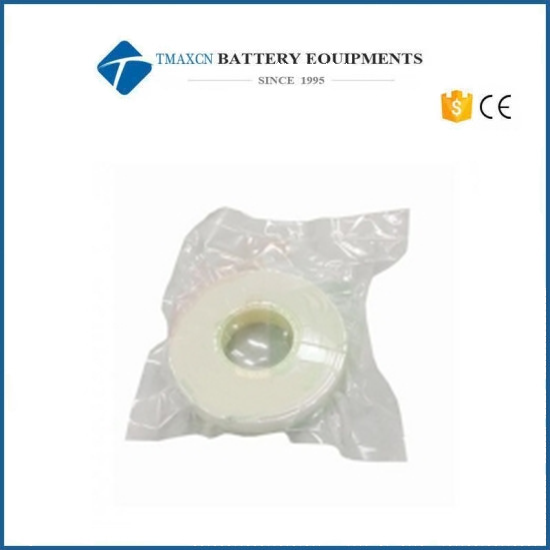

10mm Width High Temperature KAPTON Tape
Model Number:
TMAX-W-TTPCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
10mm Width High Temperature KAPTON Tape
This hot melt adhesive/sealant is specific and necessary item for sealing tab (Nickel or Aluminum) in between aluminum-made lamination film (pouch cell case).
|
Model |
TMAX-W-TTP |
|
Color |
Milk-White |
|
Thickness |
100 um |
|
Width |
4mm, 5mm, 6mm, 7mm, 8mm,10mm, Customized width |
|
Length |
100m for 1 roll |
|
Material |
Enhanced Sulfurized Polymer Resin Material (3 Layers Lamination) |
|
Outside Layers (Both Sides) Thermal Softening Index |
116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
|
Outside Layers (Both Sides) Thermal Melting Index |
135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
|
Middle Layers (Both Sides) Thermal Softening Index |
145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
|
Middle Layers (Both Sides) Thermal Melting Index |
175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only) |
|
Removal Strength from Tab |
> 15N/15mm |
|
Removal Strength from Al Lamination Film (Cell Case) |
> 35N/15mm |
|
Resistance to LiPF6 Solution (1:1:1) |
No Change in the Solution @ 85ºC*24 Hours |
