100MWH EV Battery LFP/NCM Prismatic Cell Manufacturing Line Pilot Line Turn Key Solution

100MWH EV Battery LFP/NCM Prismatic Cell Manufacturing Line Pilot Line Turn Key Solution

Ⅰ、Introduction of prismati cell:

The shell of the prismatic cell is mostly made of aluminum alloy, stainless steel and other materials. The internal winding or stacking process is adopted, which has a better protective effect on the cell than the aluminum plastic film battery (i.e., the pouch cell). The cell safety has also been greatly improved compared with the cylindrical battery.

The popularity rate of prismatic cell is very high in China. With the rise of automobile power battery in recent years, the contradiction between vehicle range and battery capacity has become increasingly prominent.

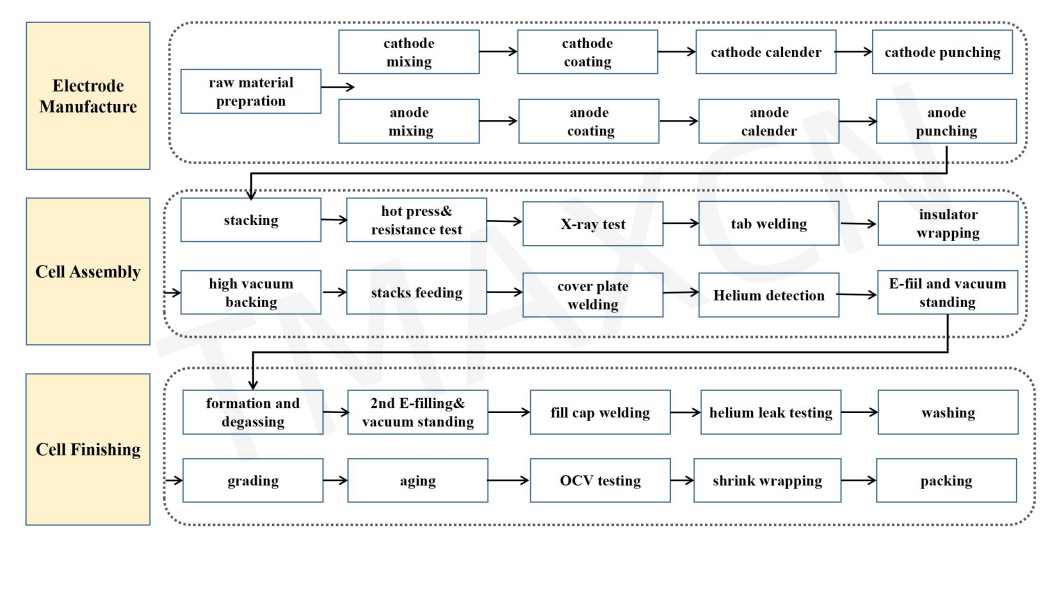

Ⅱ、Production process flow:

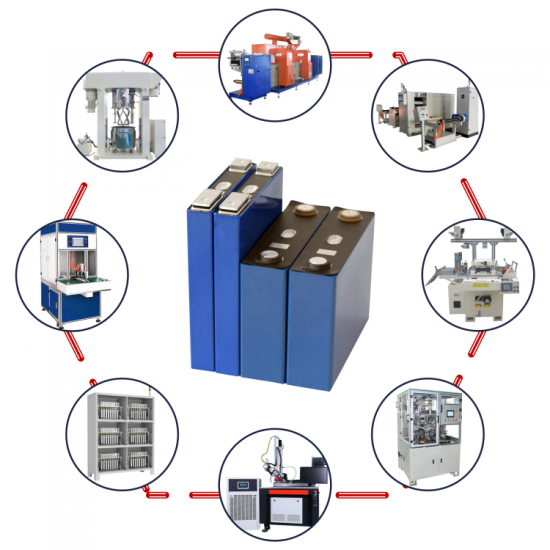

Ⅲ、Equipment List:

S NO.	Equipment
1	Cathode Mixer
2	Anode Mixer
3	Cathode Slot Die Coater
4	Anode Slot Die Coater
5	NMP Recovery System
6	Cathode Calender
7	Anode Calender
8	Cathode Slitting Machine
9	Anode Slitting Machine
10	Cathode Die Cutting Machine
11	Anode Die Cutting Machine
12	Auto Stacking Machine
13	Hot Press Machine
14	Ultrasonic Battery Core Pre Welding Machine
15	Ultrasonic Battery Core Welding Machine
16	Cover Plate Welding Machine
17	Battery Core Film Covering Machine
18	Integrated Machine for Shell Welding
19	Primary Helium Testing Machine
20	High Level Vacuum Oven
21	Electrolyte Filling Machine
22	Negative Pressure Forming Machine
23	Sealing &laser Welding Machine
24	Grading Machi

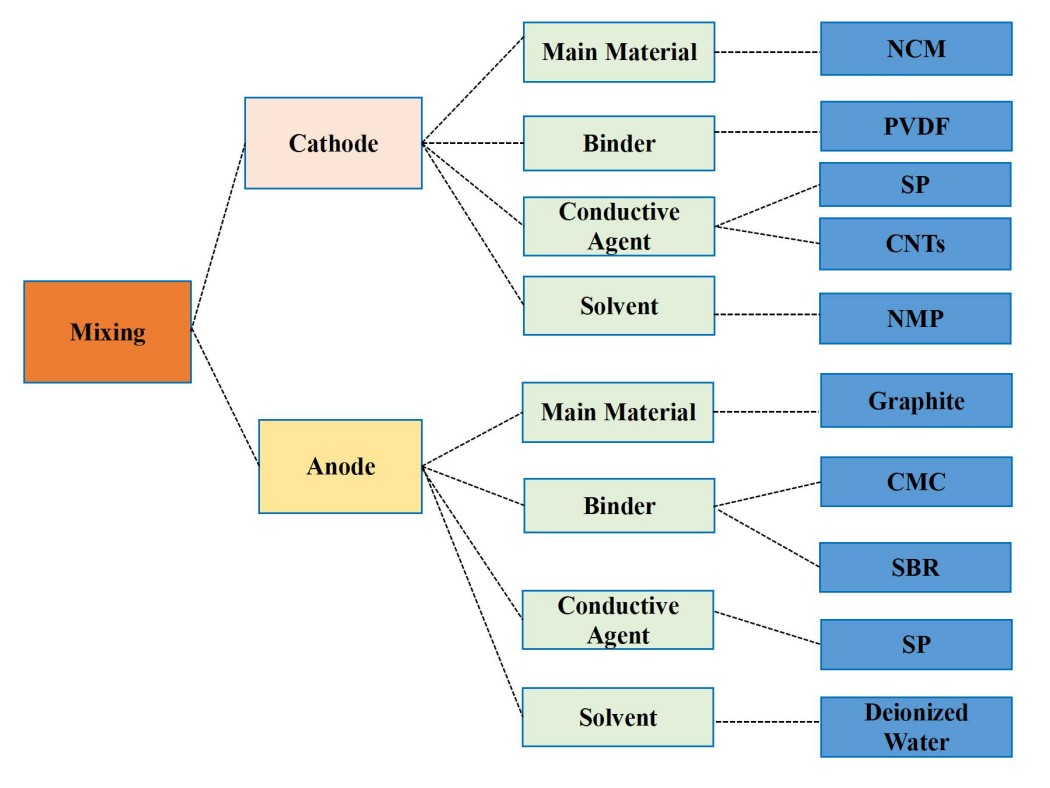

Ⅳ、Mixing and coating:

Electrode Coating:

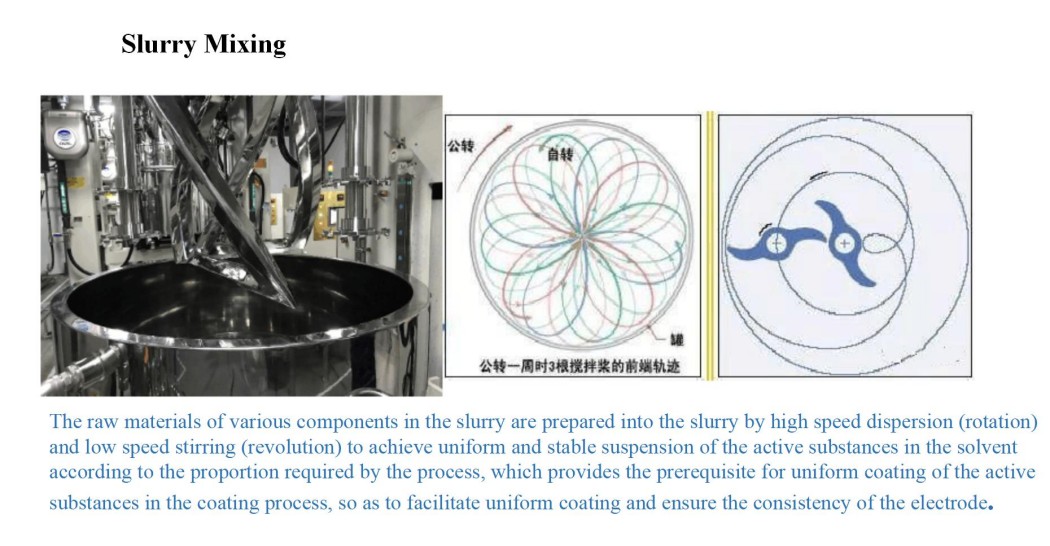

The anodes and cathodes in Lithium cells are of similar form and are made by similar processes on similar or identical equipment. The active electrode materials are coated on both sides of metallic foils which act as the current collectors conducting the current in and out of the cell. The anode material is a form of Carbon and the cathode is a Lithium metal oxide. Both of these materials are delivered to the factory in the form of black powder and to the untrained eye they are almost indistinguishable from eachother. Since contamination between the anode and cathode materials will ruin the battery, great care must be taken to prevent these materials from coming into contact with eachother. For this reason the anodes and cathodes are usually processed in different rooms.

Ⅴ、Cell Assembly Process:

Ⅵ、Auto cell testing system:

It is composed of an automatic loader, a rail robot and 46set automatic testers.

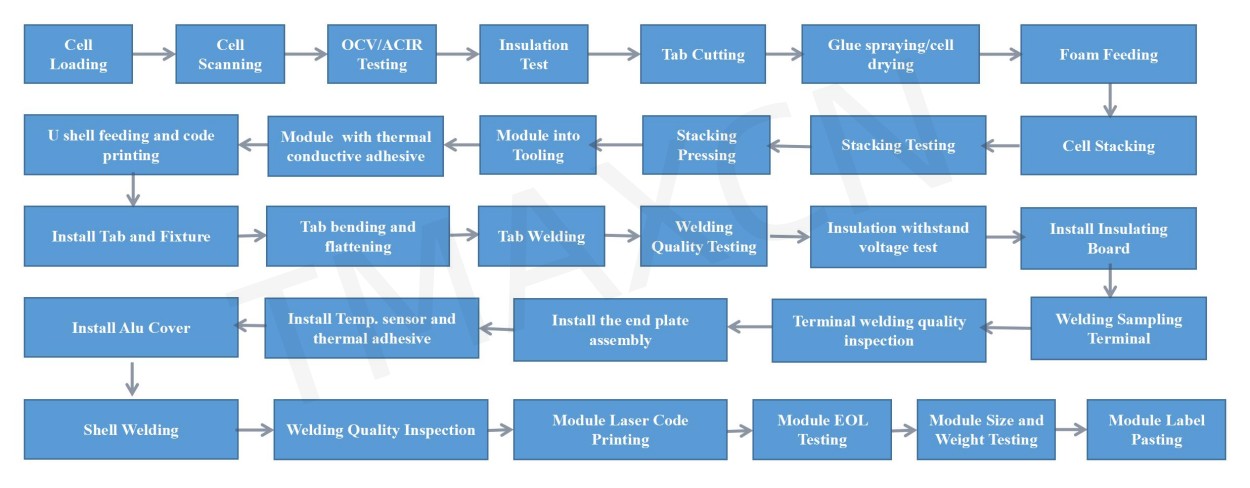

Ⅶ 、Module Pack Assembly Process:

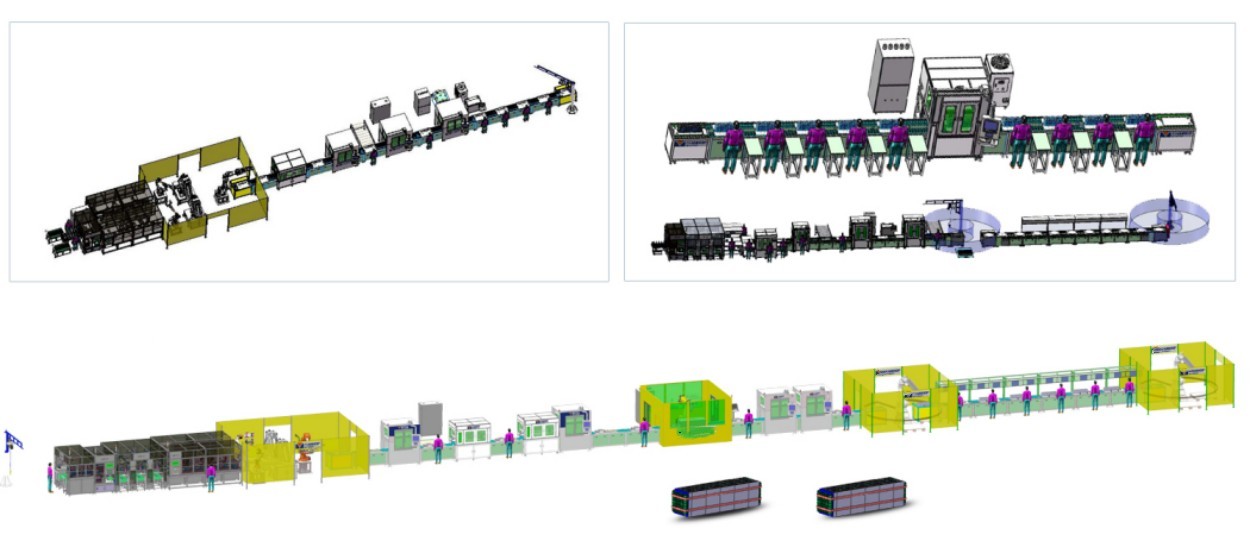

Ⅷ、Process features of the PACK assembly line for prismatic cell module:

Automatic loading, OCV test and sorting, NG removal, cell cleaning, gluing, stacking, polarity judgment, automatic tightening, manual binding, automatic loosening, pole cleaning, manual aluminum bar

(welded with the outside of the harness line), laser welding, post-welding detection, EOL detection, DCIR detection, rotating the speed chain of the PACK assembly line, manual assembly test.

 The assembly process flow is smooth, and the production efficiency and yield rate are high, which is suitable for the PACK assembly requirements of large and medium-sized square aluminum shell batteries.

Battery Module:

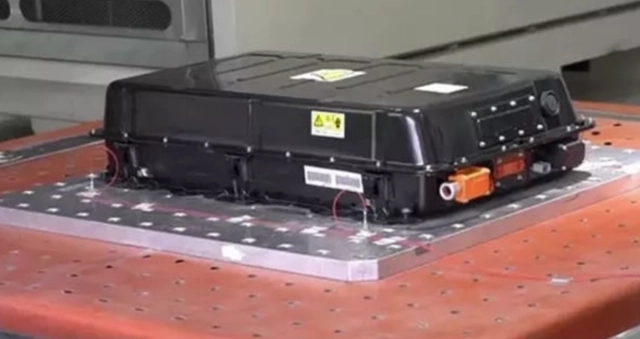

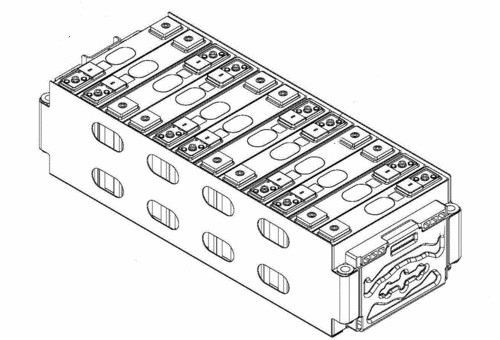

After the single battery is made. Grouping and series parallel connection of these batteries become the foundation of electric vehicle power battery system - Battery Module.
