100L Battery E-Liquid And Slurry Vacuum Mixer Storage Tank
Model Number:
TMAX-VST-100Dimension(L*W*H):
620*620*1650mmCompliance:
CE CertificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

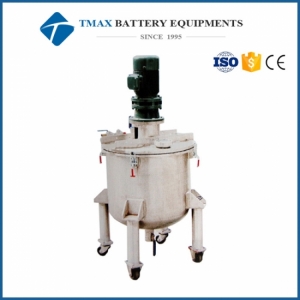

100L Battery E-Liquid And Slurry Vacuum Mixer Storage Tank
TMAX-VST-100 Vacuum Mixer Storage Tank with effective volume 100L, It is a set of vacuum mixing, dispersion of efficient equipment, suitable for battery anode/cathode paste and other electronic, chemical industry material mixing process.
It is mainly used for vacuum storage Lithium battery slurry with good viscosity after vacuum mixing and before coating process. The vacuum tank is equipped with Four moving wheels, which can transfer the battery paste/slurry to coating machine from mixing machine.
SPECIFICATIONS:
|
Source voltage |
AC 110V/220V, 50/60HZ |
|
Power |
2.2KW |
|
Warranty |
Two years limited warranty with lifetime support |
|
Mixing speed |
0-65r/min |
|
Effective volume |
100L |
|
Vacuum degree |
≤-0.098Mpa |
|
Storage tank dimension |
Dia 580*600mm |
|
Production dimension (L*w*H) |
620*620*1650mm |
|
Application |
Used for lithium battery anode/cathode slurry vacuum mixing and storage before coating |
