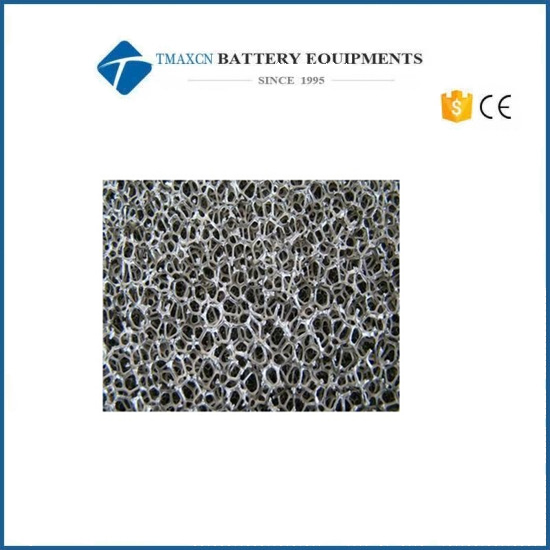

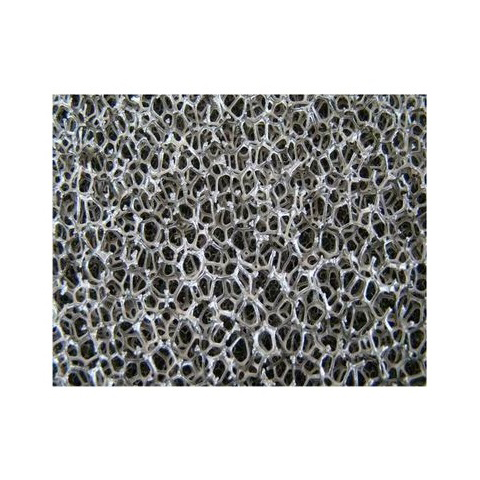

100 mm L x 100mm W x1.0mm Thickness Ag (Sliver) Foam for Battery Electrode
Model Number:
TMAX-Sliver-FoamDimension(L*W*H):
100 mm L x 100mm W x1.0mm ThicknessCompliance:
CE certificatePlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
100 mm L x 100mm W x1.0mm Thickness Sliver Foam for Battery Electrode
Features
1. Sound absorption: Porous structure has the characteristics of wide frequency sound absorption.
2. Sound insulation: Through additional processing, a high noise interception can be achieved, and the sound insulation effect is good.
3. Electronic wave shielding: about 90 dB of electronic wave shielding.
4. Processing performance: can cut, bend, and simply paste.
5. Fire resistance: Keep the shape stable, difficult to burn at high temperature, high temperature resistance.
Applicable for Conductive Electrode Substrate.
Specifications
|
Thickness |
1.0mm (can be customized) |
|
Porosity |
≥85% |
|
Length |
100mm |
|
Width |
100mm |
|
Net Weight |
21g |
|
Specific Surface area |
≥10 square / g |
|
Tensile Strength
|
Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2
|
