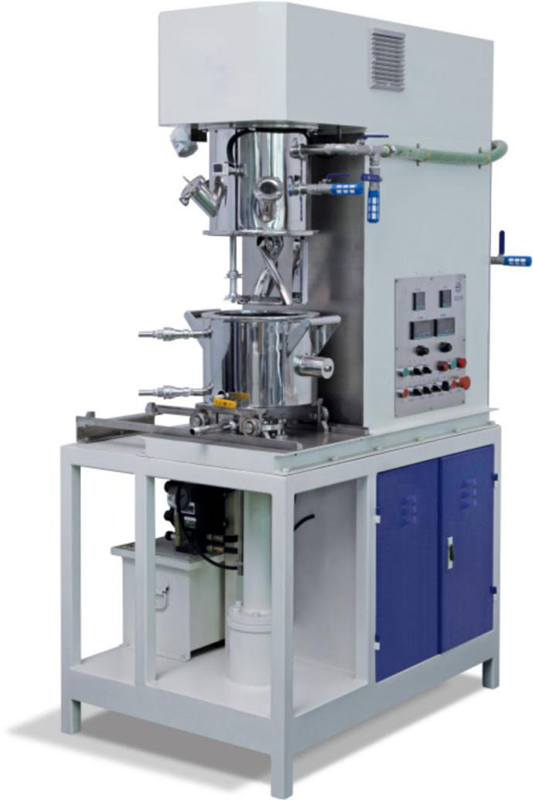

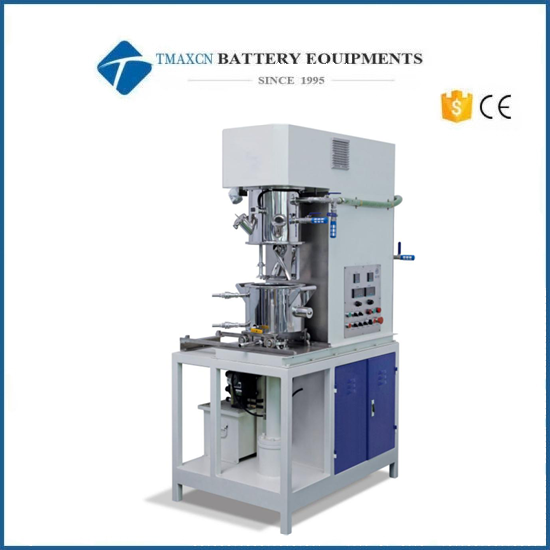

10 Liter Planetary Vacuum Mixer Mixing Machine for Lithium Battery Electrode Powder and Liquid Stirring

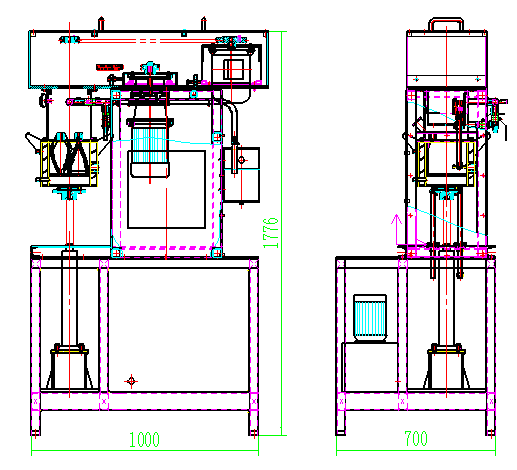

Basic technical parameters

Name

Planetary dispersion vacuum mixer

Structure

A.Cantilever structure hydraulic lifting bucket; B.Single direct material temperature measurement mode;

Single dispersion shaft + double stirring shaft + with scraping wall

Barrel body (mixing barrel)

A.Specification: φ220mm*160mm;

B.Design volume: 13L;

C.Effective volume: 10L.

A.Liner material: SUS304;

B.Mirror polished after turning of the inner wall to ensure good roundness;

C.The upper flange plane of the mixing tank and the upper tank body are sealed by a sealing ring;

D.G1/2" discharge ball valve at the bottom of the barrel;

E.A pair of handles on the barrel body.

Pure jacket direct cooling/heating

The water inlet and outlet interface is G3/8", equipped with quick-opening union; the jacket can pass cold water or hot water to cool or heat the processed material.

Upper barrel body (kettle cover)

A.Material: SUS304;

B.OneΦ40 powder/liquid hopper, which can be quickly switched on and off; 1 spotlight; with 2 small windows (a spotlight port and an observation hole), a vacuum pressure gauge, and other necessary connections (vacuum/vent /spare).

Mixing principle

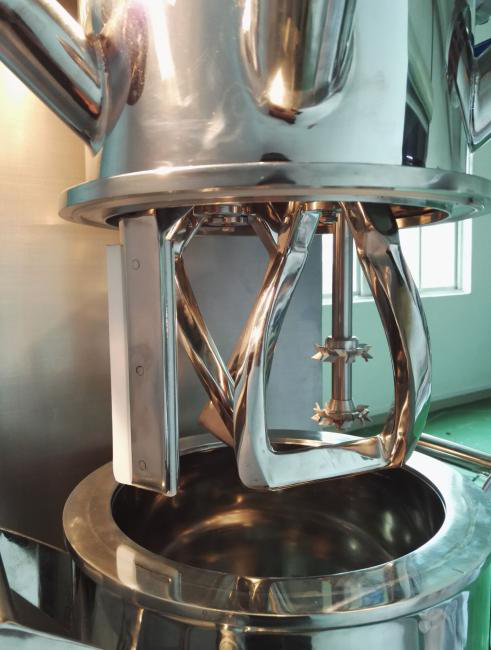

The low-speed stirring paddle and the serrated dispersing disc installed on the high-speed dispersing shaft both rotate and revolve. At the same time, combined with the low-gap design of the stirring paddle, the low-speed stirring paddle makes the material produce strong kneading interference motion and up-down/left-right circulation. ; The high-speed dispersing disc strongly shears and breaks up the materials; thus finally ensuring that the materials are fully dispersed and evenly blended (mixed).

Revolution/mixing motor and frequency converter, reducer

A.Quantity: one set;

B.Motor power: 1.5Kw/4P;

C.1.5KW frequency conversion speed controller matched with the motor;

D.Matching reducer BL1, reduction ratio of about I=29, use factor Fa=1.0 .

Planetary revolution speed

Speed: 0~50rpm (reference system: ground), adjustable.

Scraper

Quantity: 1 group; scraping material: SUS304 and Teflon; consistent with revolution speed.

Gap reference value

(Not mandatory)

A.Tolerance of mixing paddle and bottom: 2～4 mm;

B.Tolerance of mixing paddle and barrel wall: 3±1.5 mm;

Stirring shaft/stirring paddle speed

Speed: 0~80rpm (reference system: planetary box); or 0~130rpm (reference system: ground); adjustable.

Stirring paddle

A.Material: SUS304;

B.Quantity: one (group).

Stirring form

"Spiral twist type"; linear velocity: 0~0.55m/s (reference system: planetary box).

Decentralized motor

A.Quantity: one set;

B.Motor power: 2.2Kw/2P;

C.With a frequency conversion speed controller matched with the motor.

Dispersion speed (rotation)

A.Speed: 0~6000rpm, adjustable;

Linear speed: 0~17m/s.

Dispersing shaft and disc

A.Material: SUS304;

B.One piece, a dispersion disc is installed on the dispersion shaft to ensure better dispersion/mixing;

C. Diameter of dispersion plate: Φ55mm.

Lifting (mixing barrel)

A.Hydraulic lifting: piston cylinder Φ63/D40×S270; equipped with double guide rods, positioning device; positioning is safe and reliable.

B.One set of hydraulic oil pump station, equipped with a 0.37Kw/4P motor; no oil leakage, low noise.

C.Lifting height: ≤270.

Vacuum system

A.The stirring and dispersing process can be carried out under vacuum; vacuum degree: ≤-0.098mPa.

B.Equipped with vacuum pump 2XZ-2.

C.With vacuum buffer tank and switch.

D.Dynamic seal: mechanical seal; static seal: O-ring seal.

E.Keep the pressure for 24 hours, and no oil leaks into the mixing bucket under the mixing or pressure maintaining state.

GPS

A.With positioning adjustment device and locking device, it can accurately position the mixing barrel and the upper barrel and prevent rotation.

B.The positioning stop of the lower flange of the upper barrel body is precisely matched with the mixing barrel to ensure that the position of the mixing barrel is reasonable and the positioning is accurate.

Control System

(Manual operation control)

A.Manual operation control function: The vacuum start/stop during equipment operation, frequency conversion speed regulation, temperature display (or temperature control), spotlight switch, lift, and emergency stop operation are all performed on the operation panel.

Remarks: Dispersion has a timing function (recommended, but normal manual operation (ie without PLC and touch screen) does not include this item).

B.Man-machine interface operation function: This is an optional item, and the customer needs to purchase it at an additional price if necessary, and the plan will be quoted separately.

Safety operation

A.Relying on the frequency converter and the limit travel switch, through the specially designed control route, it is guaranteed that the barrel will stop automatically when it reaches the specified position.

B.During the ascending process of the barrel, the mixing/dispersing part of the equipment cannot be started. Similarly, when the machine is running the mixture, the barrel cannot be lowered and the mixing barrel cannot be opened.

C.Utilize circuit design such as proximity switch to ensure that the mixing tank cannot be lowered under vacuum.

D.The special vacuum buffer tank design can effectively prevent the vacuum pump oil from returning to the mixing tank.

E.Door bolt-type buckles are set on the kettle cover and the mixing barrel to prevent the oil cylinder from falling automatically.

Temperature measurement method

0-300℃, the temperature probe is located on the wall (or bottom) near the bottom of the barrel, which is in contact with the material and displays the temperature.

Total power of host: 3.7KW+ power of lifting motor: 0.37kw

Working voltage/frequency: 380V/50Hz/3Phase; control voltage: 220→24V.

Sealing material

Static sealing: use silicone rubber/fluorine rubber/NBR "O" or "trapezoidal" sealing ring, depending on the working conditions.

Dynamic seal: SiC-C+fluorine rubber.

High-speed bearing

The dispersing shaft and a high-speed intermediate drive shaft adopt German FAG or Japanese NSK brand.

Dispersion effect

The decentralized transmission adopts high-quality synchronous belts, so that the decentralized shaft does not lose rotation, and the decentralized shearing effect is good.

Technical documents

The supplier provides a complete set of technical documents for the "Planetary Dispersing Vacuum Mixer" and technical specifications of related parts.

Gasket

Material selection: A. silicone rubber or EPDM; or B. fluorine rubber or others; it is determined by the manufacturer according to the specific working conditions;

"O" ring use (location): mixing barrel and kettle cover, feeding hopper, sight glass observation port, etc.;

Quantity: 1 set (the quantity is determined by the manufacturer's design standards).

Shaft seal

High-speed shaft mechanical seal: one set (the quantity is determined by the manufacturer's design standard).

Timing belt

Spare high-quality synchronous transmission belt: one set (the quantity is determined by the manufacturer's design standard).

Scraper

If there is such a design, the quantity is determined by the manufacturer's design standard.

Glass sheet

Spotlight/observation port use: two pieces, matched with the corresponding machine model; material: tempered glass.
