1-95mm Width Single Hot Strip Cutter Cutting Machine
Model Number:
TMAX-HZX-987Type:
AutomaticInput Power:
0.5KWNet Weight:
38KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

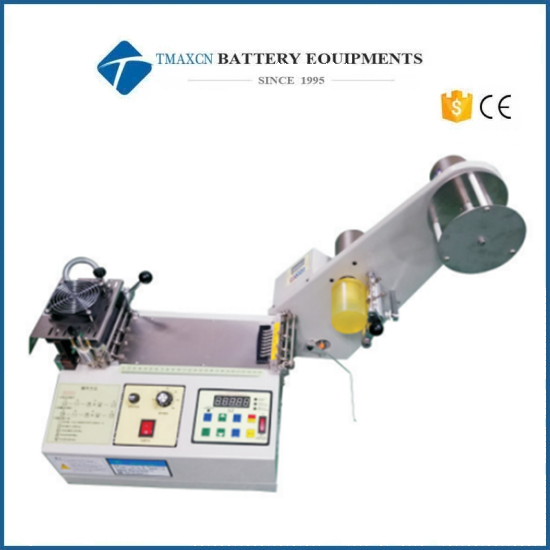

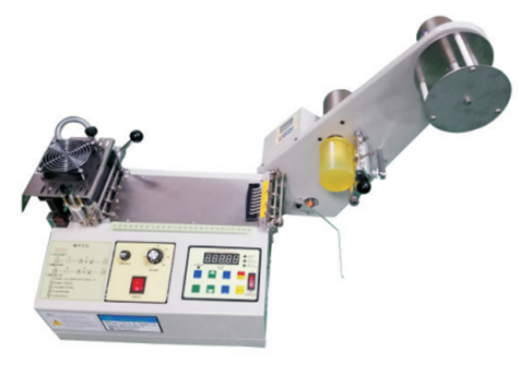

1-95mm Width Single Hot Strip Cutter Cutting Machine
Feature
TMAX-HZX-987 single hot strip machine adopts Taiwan high-quality heat pipe with stable performance; it is equipped with special feeding device to prevent materials and maintain uniform tension to ensure the accuracy of belt cutting length. The cutting materials include elastic belt, transparent shoulder belt, nylon ribbon, color ribbon, zipper, Velcro, packing belt, backpack belt, etc
Cutting speed:85 per minute can be cut.（50mm length, for example）

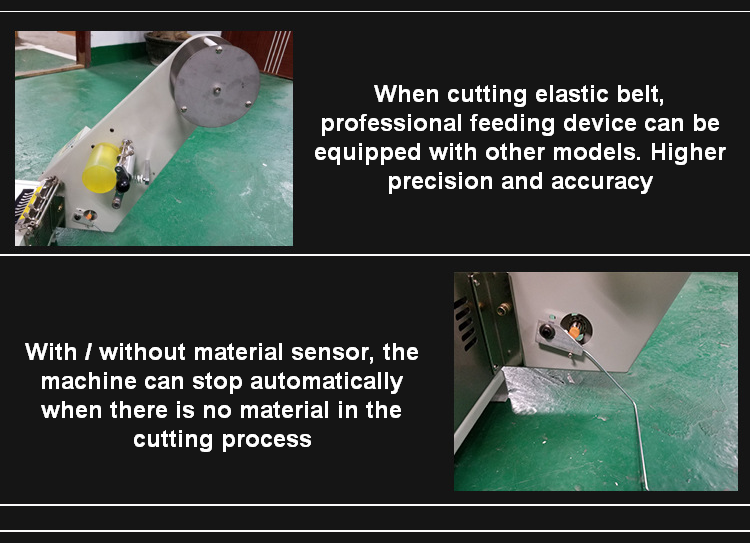

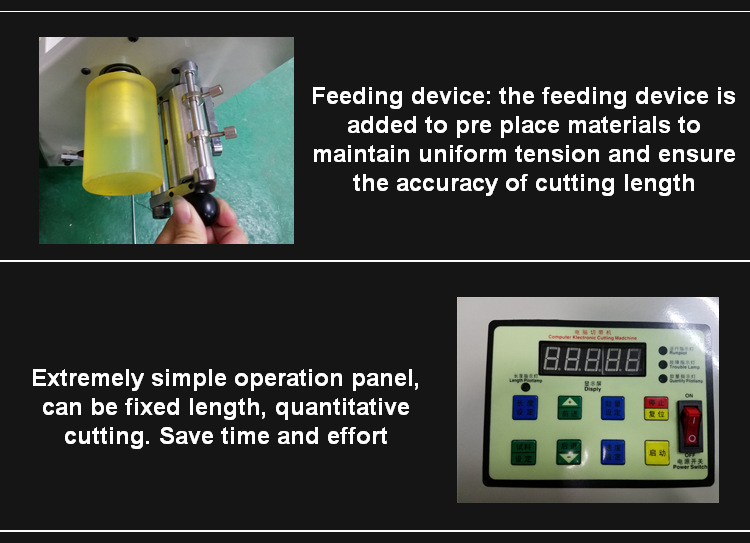

Feeding device: The installation of feeding device , pre-release materials to maintain the unity of tension, with the length of the cut to ensure accuracy.

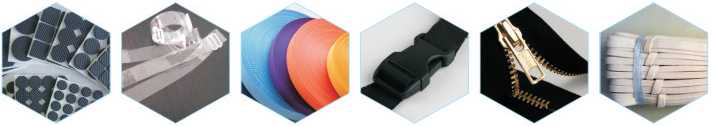

Applicable cutting material: elastic cord, transparent shoulder belt, nylon braid , colorful ribbon, zipper, hook & loop, packing strap, wrapping belt etc.
Specification
|
Tool |
Voltage |
Power |
Weight |
Width |
Length |
The max temperature |
|
Hot knife |
110/220V |
0.5kw |
38kg |
1-95mm |
1-9999mm |
450 |
