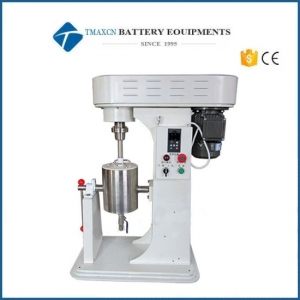

1-600Liter High Speed Stirred Ball Mill Machine Grinder

Model Number:
TMAX-JM-10
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

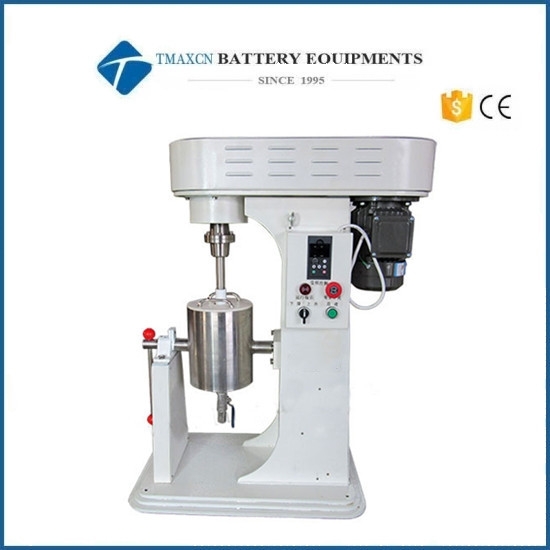

1-600Liter High Speed Stirred Ball Mill Machine Grinder

Stirred ball mill mainly consist of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.

Laboratory Small Stirred Ball Mill Machine

When machine rotates with high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.

Laboratory Small Stirred Ball Mill Machine

1)High utilization rate of energy, saving energy
2)Granularity is adjustable by adjusting grinding time
3)Less vibration, low noise
4)Simple structure, easy operation
5)Meet requirements of various processes, realize continuous or intermittent production
6)Jar with jacket, easy to control the grinding temperature
7)Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8)A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.

Application Cases of Ball Mill

Small Stirred Ball Mill

Main Parameters of Stirred Ball Mill
Model No.	Rotate Speed (rpm)	Volume (L)	Load Capacity (L)	Power Supply (KW/V)	Available Jars	Feed Size (mm)	Output Granularity (µm)	Speed Control Mode	Category
JM-1L	50-1400	1	0.35	0.37KW/220V	Stainless steel Nylon Alumina ceramic PU Zirconia Agate PTFE	≤5	≤1µm	Frequency speed adjuster	Laboratory Scale
JM-2L	50-1400	2	0.7	0.37KW/220V		≤5	≤1µm
JM-3L	50-1400	3	1.05	0.37KW/220V		≤5	≤1µm
JM-5L	60-560	5	1.75	0.75KW/220V		≤5	≤1µm	Frequency speed adjuster or Fixed speed setting for buyer's option	Small Type
JM-10L	60-560	10	3.5	1.5KW/220V		≤10	≤1µm
JM-15L	60-380	15	5.25	2.2KW/380V		≤10	≤1µm
JM-20L	60-380	20	7	2.2KW/380V		≤10	≤1µm		Light Type
JM-30L	60-310	30	10.5	3.0KW/380V	Carbon steel Stainless steel Nylon liner PU liner Alumina ceramic liner PTFE liner	≤10	≤1µm
JM-50L	60-140	50	17.5	4.0KW/380V		≤10	≤1µm
JM-100L	60-140	100	35	7.5KW/380V		≤20	≤1µm		Industrial Type
JM-200L	60-110	200	70	11KW/380V		≤20	≤1µm
JM-300L	60-110	300	100	15KW/380V		≤20	≤1µm
JM-500L	60-90	500	170	18.5KW/380V		≤20	≤1µm
JM-600L	60-90	600	200	22KW/380		≤20	≤1µm

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Small Stirred Ball Mill

Suggestions for Matching Solution About Mill Jars & Materials

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

Small Stirred Ball Mill

Suggestions for Matching Solution About Grinding Medium & Materials

Small Stirred Ball Mill
