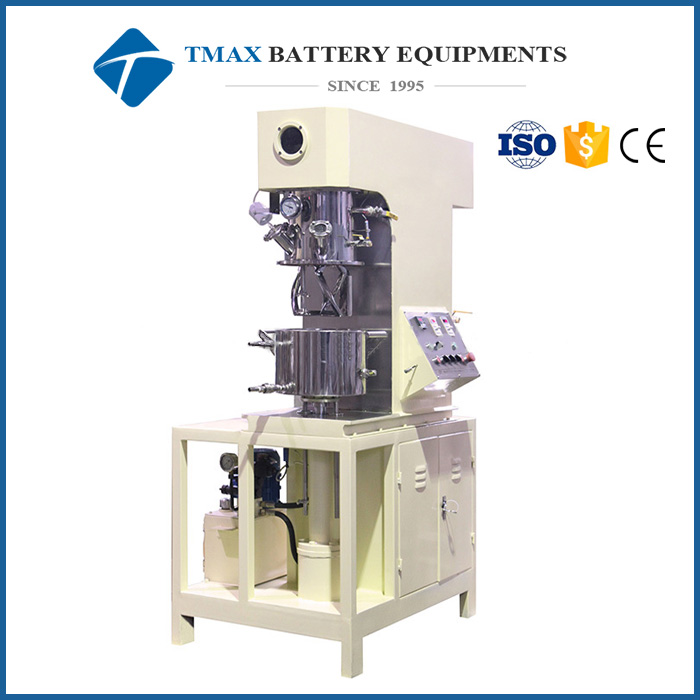

1-3L vacuum planetary mixer for polymer battery production line
Model Number:
TMAX-PXFZH-3LDimension(L*W*H):
700*600*300mmMax. Loading Capacity:
0-1400r/minCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
1-3L vacuum planetary mixer for polymer battery production line
This machine is used for lithium ion battery material slurry vacuum mixing,
suitable for lithium ion battery lab research.
|
Main technical parameters |
Performance |
|
Design capacity |
3.8L |
|
Working capacity |
1-3L |
|
Dimension |
Dia180×h.150 |
|
Power motor 1 for agitating / scraping and planetary |
0.75kw (e.g. 1.0HP) --380v/3phase/50hz --1500rpm |
|
Power motor 2 for H.-S. dispersing |
1.1kw (e.g. 1.5HP) --380v/3phase/50hz --3000rpm |
|
Self-agitating speed |
0~64rpm (based on 50hz) |
|
Planetary / Scraping speed |
0~52rpm (based on 50hz) |
|
Self-dispersing speed |
0~5700rpm (based on 50hz) |
|
Linear velocity |
0~16m/s (based on 50hz) |
|
vacuum degree |
-0.098MPa |
